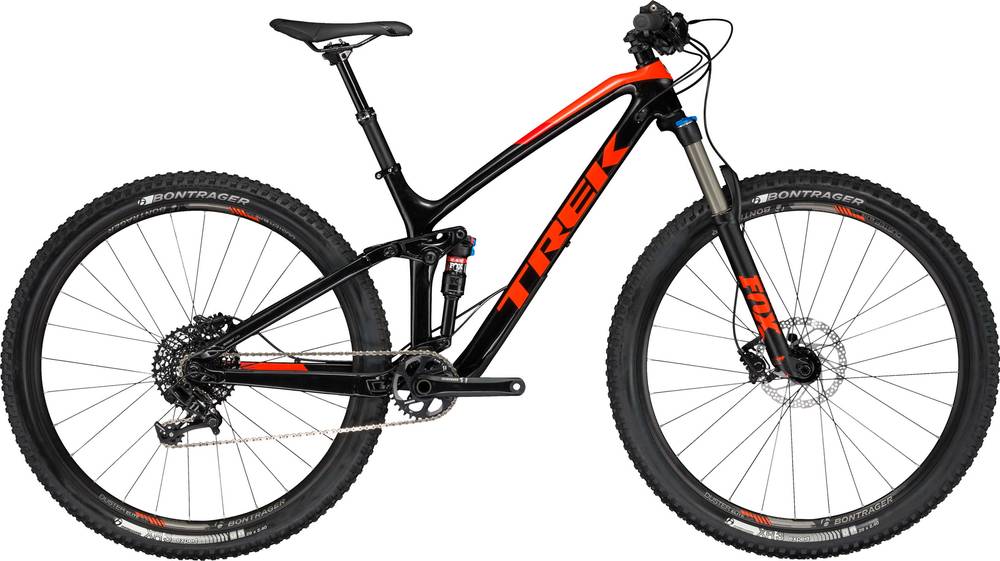

Trek Fuel EX 9.7 29 2017
2017 Mountain
Estimate price |
3,999$
Weight | 13.43 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset GX, X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy stays, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
Fox Rhythm 34 Float, Grip adjustable damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Drivetrain
Rear Derailleur
SRAM GX, Roller Bearing Clutch
Shift Levers
SRAM GX, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
SRAM X1 1200, 32T Direct Mount X-Sync
Bottom Bracket
PF92
Chain
SRAM PC-1110
Wheels
Rims
Bontrager Duster Elite, Tubeless Ready, Boost110 front, Boost148 rear (tubeless strips included, valves sold separately)
Tires
Bontrager XR3 Expert, Tubeless Ready, Inner Strength sidewalls, aramid bead, 29x2.40"
Brakes
Brakes
Shimano Deore hydraulic disc
Cockpit
Stem
Bontrager Line, Knock Block, 35mm, 0 degree
Handlebar
Bontrager Line, 35mm, 15mm rise, 750mm width
Grips
Bontrager Race Lite, lock-on
Headset
Knock Block Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
KS eThirty Integra, remote lever, 2-bolt head, 31.6mm, zero offset, internal routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 691 mm | 726 mm | 743 mm | 758 mm | 784 mm |
| Rake | 51 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm |
| Top Tube Length | 559 mm | 594 mm | 611 mm | 626 mm | 651 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 741 mm | 736 mm | 731 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model
Fuel EX 9.7 29 is a Trek Fuel model. 277 bikes variations carry this model name so far. You can easily view all of the Trek Fuel bikes models from 2017, here.
Model range prices
Trek Fuel EX Jr 2017 is the most affordable bike of this model and has a price of 1889$. On the other hand, Trek Fuel EX 9.9 29 2017, is the most expensive and costs 8399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Fuel EX 9.7 29 price was 3999$. Comparing this to the average Trail bike price, we see that the price is 44.79% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuel EX 9.7 29 weighs 13.43 kg (29.61 lbs) and is slightly heavier than the average. In short, the average Trail bike weight is 3.47% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Fuel EX 9.7 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fuel EX 9.7 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Fuel EX 9.7 29 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
