Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 130mm -
Travel Rear 130mm -
Groupset XT -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & seatstay, alloy chainstay, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, internal derailleur cable routing, Stealth dropper post routing, ISCG 05 mount, magnesium EVO Link, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus
Front Derailleur
Shimano Deore XT, direct mount
Shift Levers
Shimano Deore XT, 10 speed
Cassette
Shimano XT 11-36, 10 speed
Crank
Shimano Deore XT, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Bontrager Rhythm Elite Tubeless Ready 28-hole disc wheel system, 15mm front hub, 142x12mm rear hub
Tires
Bontrager XR3 Expert, 26x2.20"
Brakes
Brakes
Shimano XT hydraulic disc
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 3, titanium rails
Seatpost
RockShox Reverb Stealth, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

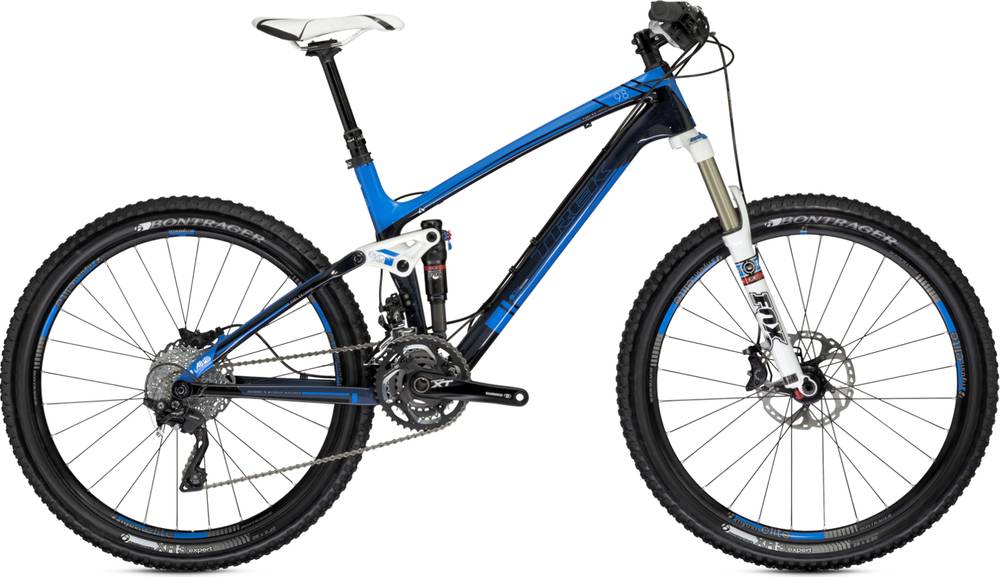

Fuel EX 9.8 belongs to the Trek Fuel model. There are 277 bikes that carry this model name. Take a sneak peek at all Trek Fuel bikes models from 2013, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EX 9.8 components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Fuel EX 9.8 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trek Fuel EX 9.8 bike has 5 sizes, in the range of 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
