Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 130mm -
Travel Rear 130mm -
Groupset XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & seatstay, alloy chainstay, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, BB95, internal derailleur cable & dropper post routing, ISCG 05 mount, magnesium EVO Link, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus
Front Derailleur
Shimano Deore XT, high direct mount
Shift Levers
Shimano Deore XT, 10 speed
Cassette
Shimano Deore XT 11-36, 10 speed
Crank
Shimano Deore XT, 38/24
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Bontrager Rhythm Comp Tubeless Ready w/Stacked Lacing, 15mm front hub; 142x12 rear hub
Tires
Bontrager XR3 Expert, aramid bead, 26x2.20"
Brakes
Brakes
Shimano Deore XT hydraulic disc
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 15mm rise
Headset
Cane Creek IS-3, E2, sealed cartridge bearing
Seat
Saddle
Bontrager Evoke 3, titanium rails
Seatpost
RockShox Reverb Stealth, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

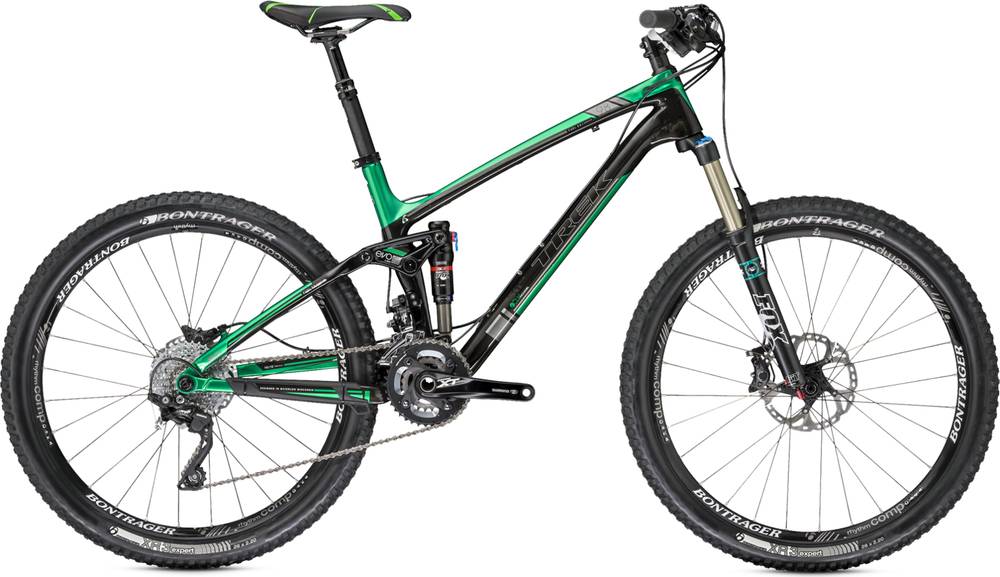

Fuel EX 9.8 26 completes the Trek Fuel model. Trek released 277 bikes variations of this model so far. Take a sneak peek at all Trek Fuel bikes models from 2014, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Fuel EX 9.8 26 components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Fuel EX 9.8 26 are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Trek model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
