Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X01 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy seatstay & chainstay, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, BB95, internal derailleur & dropper post routing, ISCG 05 mount, magnesium EVO link, G2 Geometry, 120mm travel
Drivetrain
Rear Derailleur
SRAM X01 X-Horizon, Type 2, 11 speed
Shift Levers
SRAM X01, 11 speed
Cassette
SRAM XG-1195 10-42, 11 speed
Crank
SRAM X01, 32T
Bottom Bracket
BB95, 95.5mm, press-fit
Wheels
Rims
Bontrager Rhythm Comp Tubeless Ready w/Stacked Lacing, 15mm front hub; 142x12 rear hub
Tires
Bontrager XR3 Team Issue Tubeless Ready, aramid bead, 29x2.30"
Brakes
Brakes
Shinano Deore XT hydraulic disc
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 15mm rise
Headset
Cane Creek IS-3, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke 3, titanium rails
Seatpost
RockShox Reverb Stealth, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model

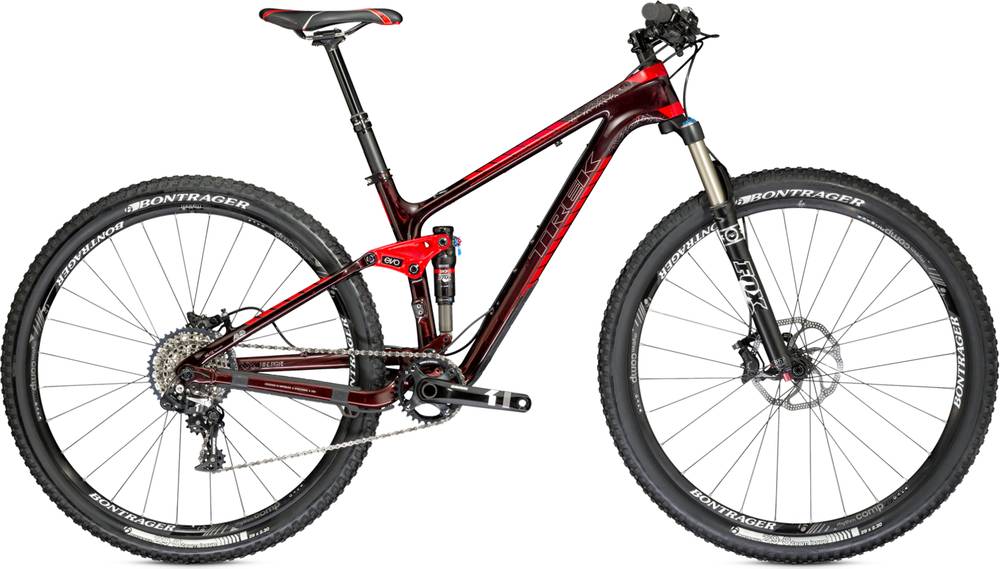

Fuel EX 9.8 29 XO1 is a Trek Fuel model. Trek launched 277 bikes of this model so far. Take a sneak peek at all Trek Fuel bikes models from 2014, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Fuel EX 9.8 29 XO1 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fuel EX 9.8 29 XO1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Trek Fuel EX 9.8 29 XO1 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
