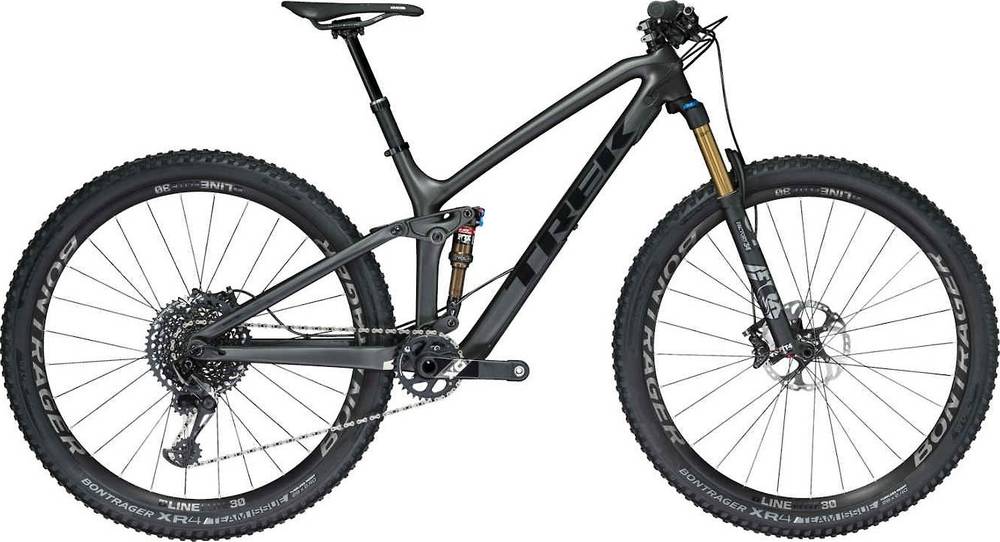

Trek Fuel EX 9.9 X01 29 2018
2018 Mountain
Estimate price |
6,999$
Weight | 12.31 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, FIT4 3-position damper, Kashima, Boost, 51mm offset
Rear Shock
FOX Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210mm x 52.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle
Bottom Bracket
PF92
Chain
SRAM GX Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Bontrager Line Elite 30, Boost front and rear, 108 tooth Rapid Drive rear hub
Rear Hub
Bontrager Line Elite 30, Boost front and rear, 108 tooth Rapid Drive rear hub
Rims
Bontrager Line Elite 30, tubeless ready
Tires
Bontrager XR4 Team Issue 2.4", tubeless ready, Inner Strength sidewalls, 120tpi, aramid bead
Brakes
Brakes
Shimano Deore XT M8000
Brake Levers
Shimano Deore XT M8000
Cockpit
Stem
Bontrager Line Pro, 35mm clamp, 0 degree, 60mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 750mm width, 35mm diameter, 15mm rise
Grips
Bontrager Race Lite, lock-on
Headset
Knock Block Integrated, sealed cartridge bearing
Seat
Saddle
Bontrager Evoke RXL, carbon rails
Seatpost
Bontrager Drop Line, internal routing, 15.5": 100mm drop, 17.5" and 18.5": 125mm drop, 19.5" and 21.5": 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm |
| Top Tube Length | 537 mm | 572 mm | 589 mm | 604 mm | 630 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 737 mm | 732 mm | 725 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model
Fuel EX 9.9 X01 29 is part of the Trek Fuel model. There are 277 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek Fuel EX Jr 2018 is the cheapest bike model and costs 1889$. Trek Fuel EX 9.9 29 2018 is the most expensive one and costs 8899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. Doing a quick comparison, we notice that Fuel EX 9.9 X01 29 price is 153.4% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Fuel EX 9.9 X01 29 it’s weighing 12.31 kg (27.14 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.44% lighter than the average Trail bike.
Fuel EX 9.9 X01 29 components
Fork
The Fuel EX 9.9 X01 29 comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX Factory Float EVOL model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Fuel EX 9.9 X01 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Fuel EX 9.9 X01 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Fuel EX 9.9 X01 29 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
Trek Fuel EX 9.9 X01 29 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
