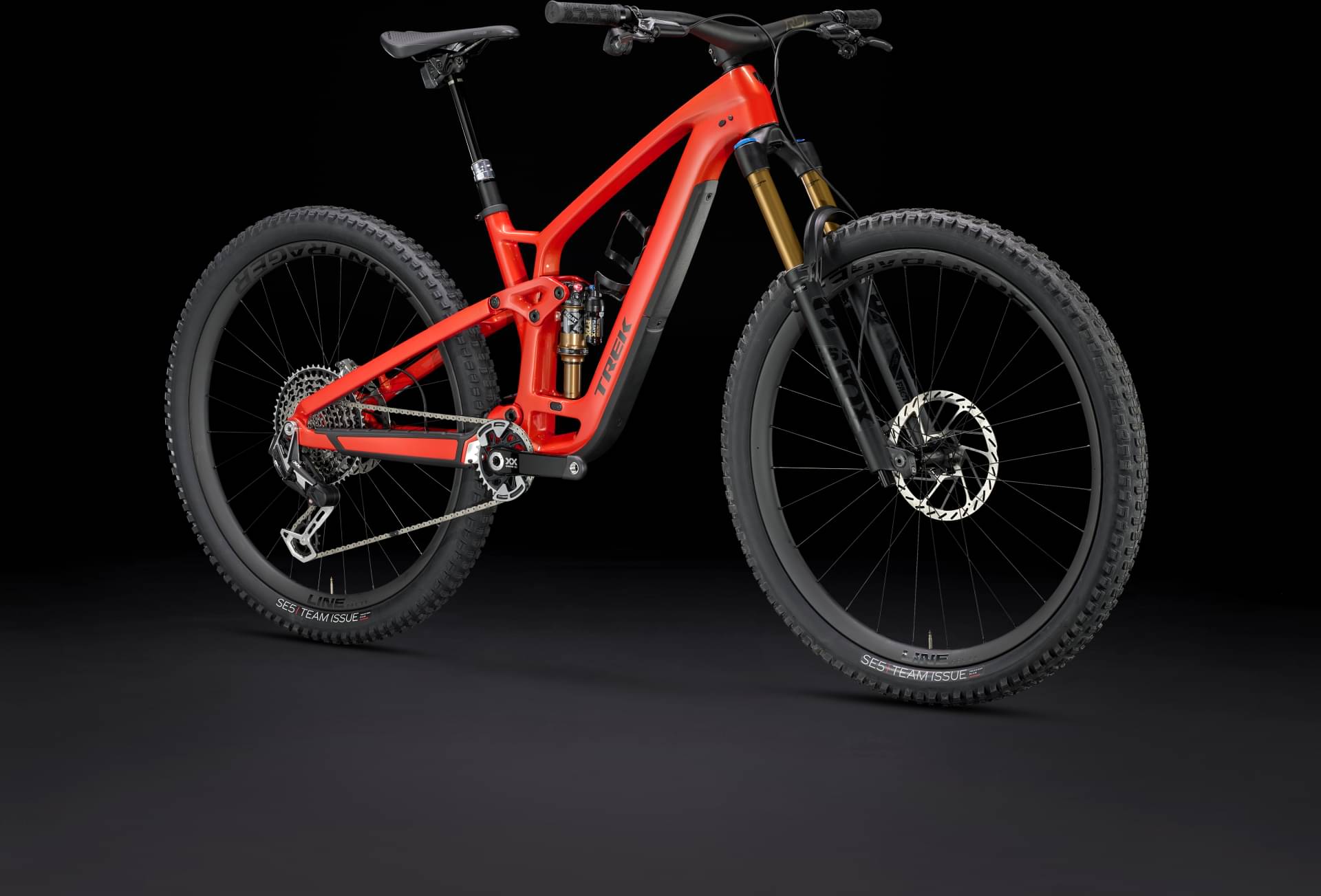

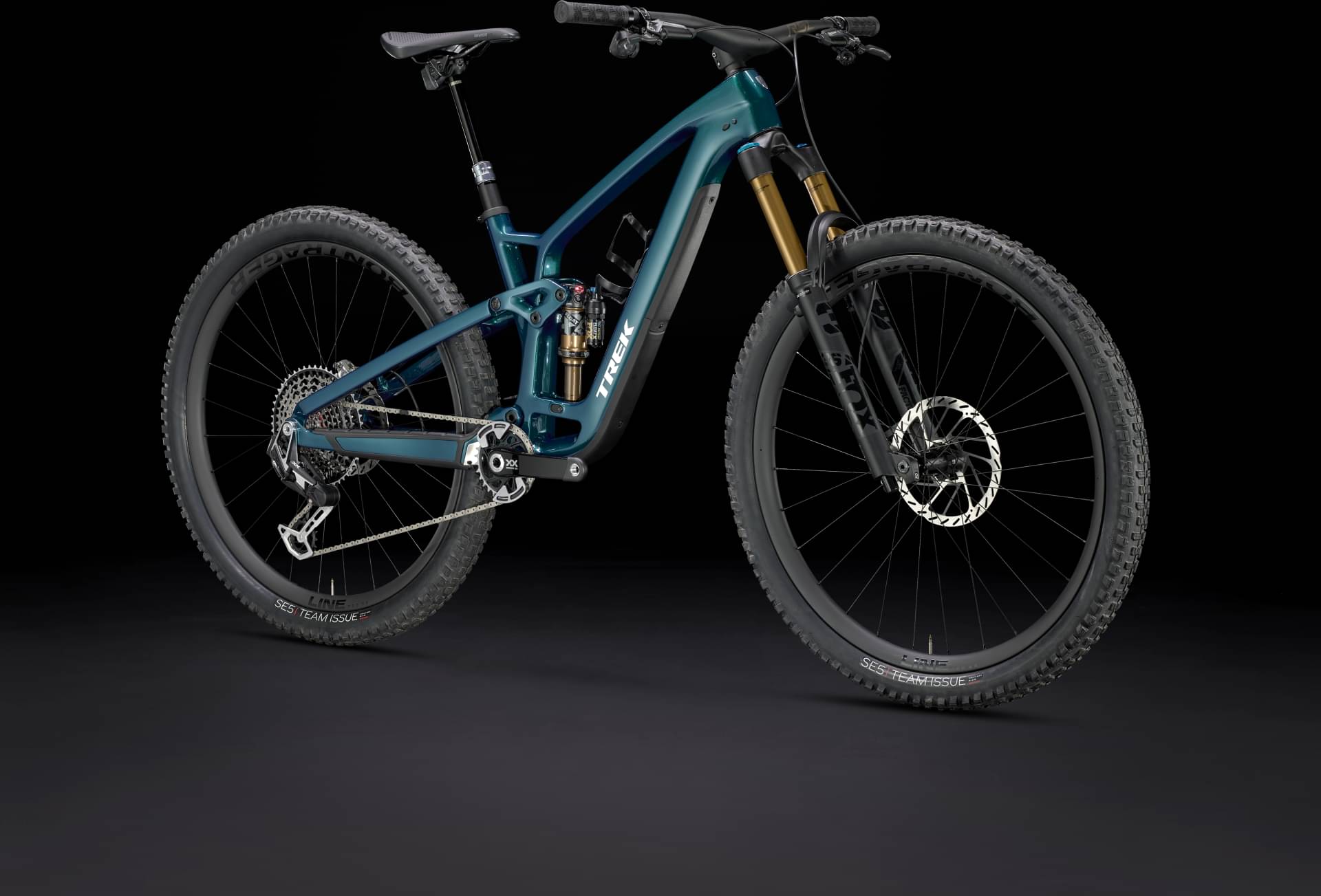

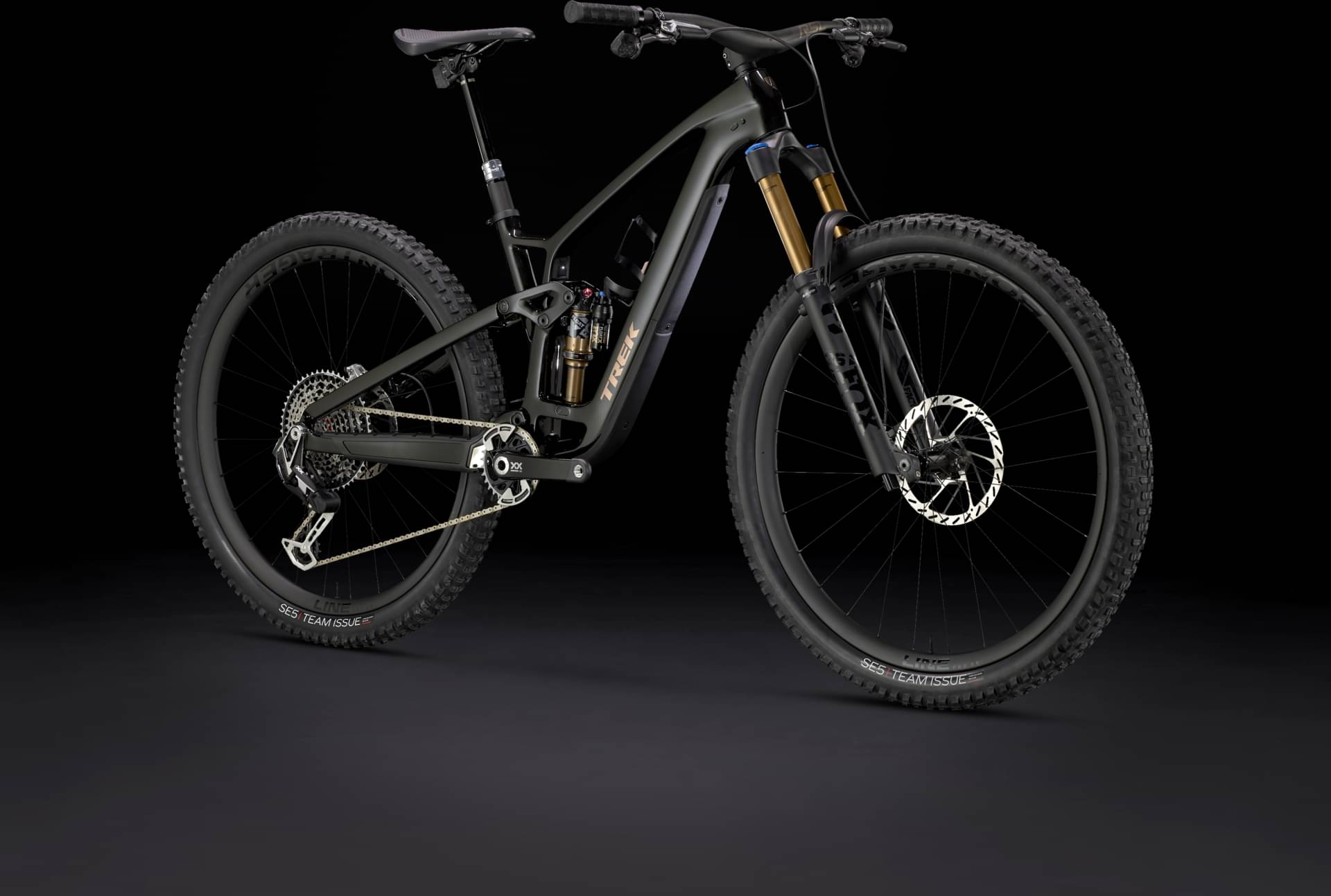

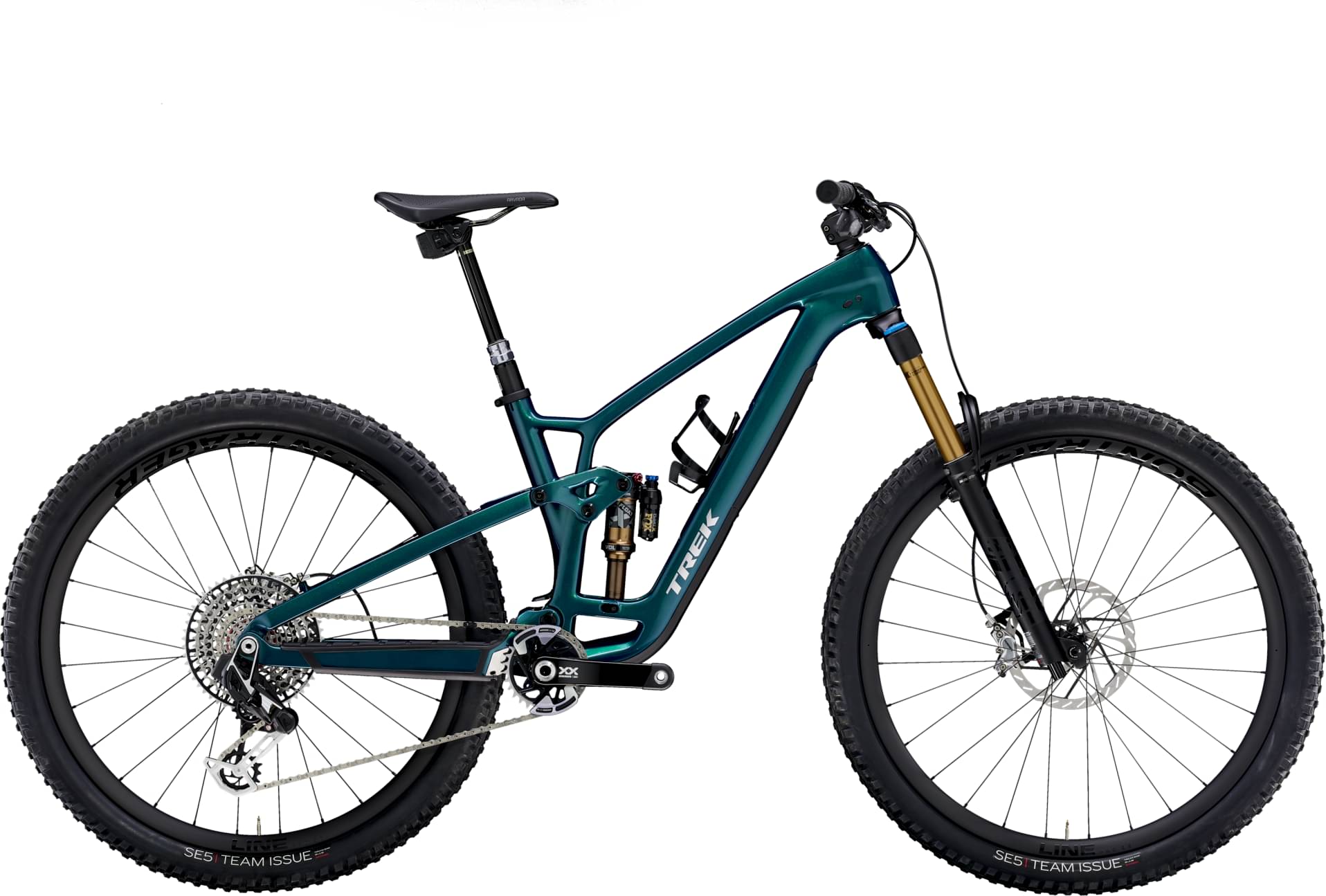

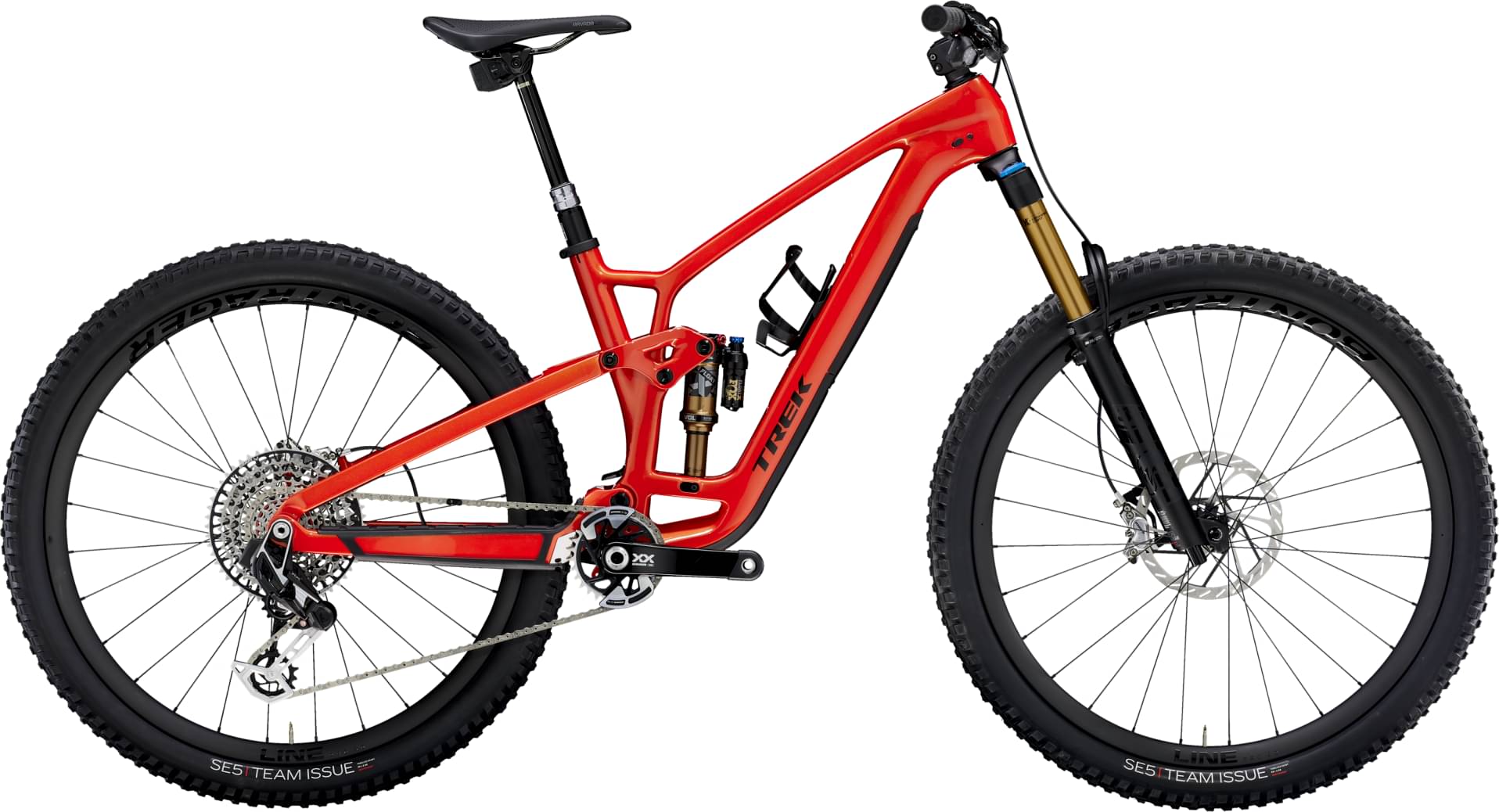

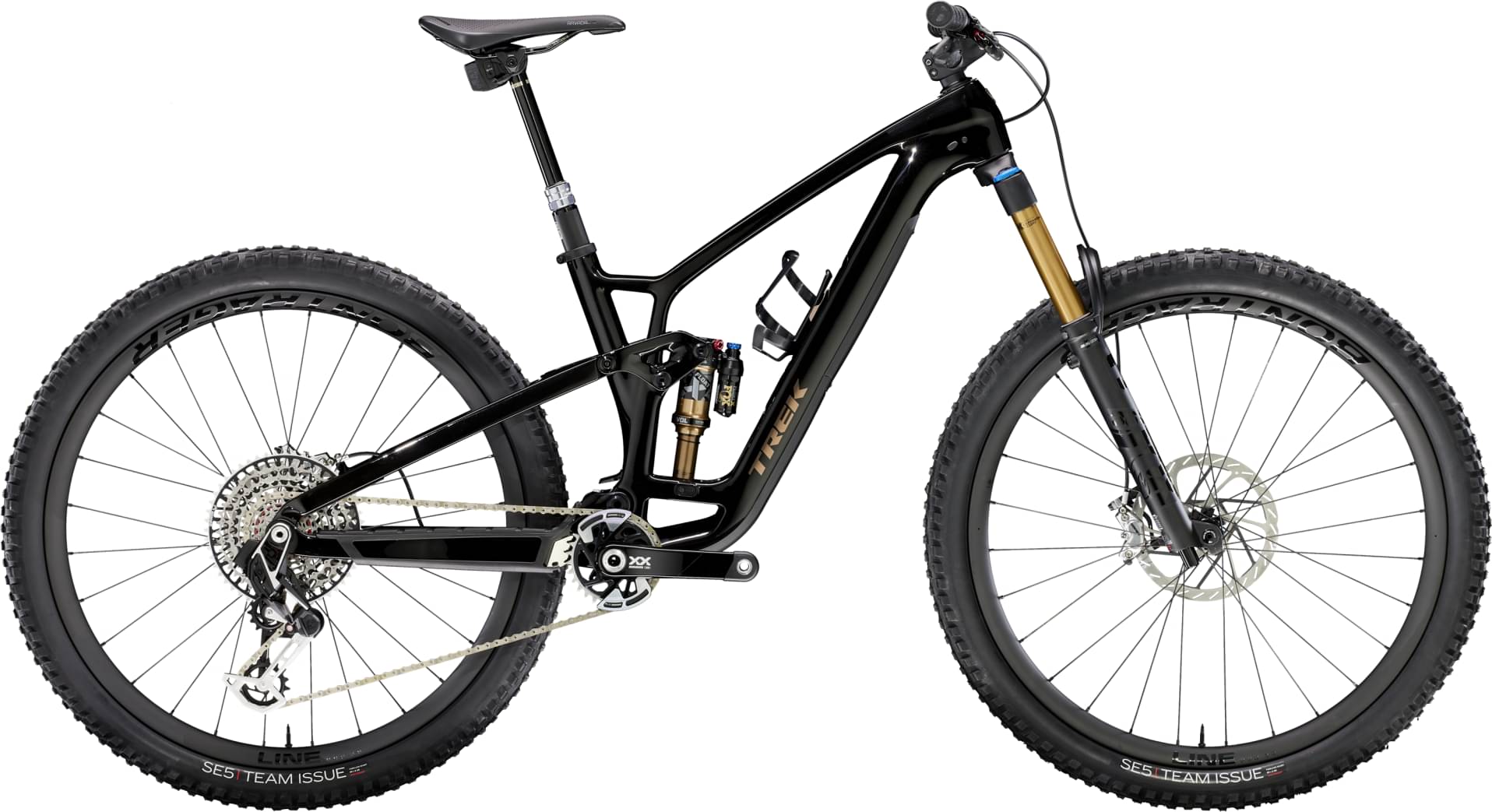

Trek Fuel EX 9.9 XX AXS T-Type Gen 6 2024
2024 Mountain
Estimate price |
10,999$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
MD/LG High
173cm - 180cm
MD/LG Low
173cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
187cm - 195cm
XL Low
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

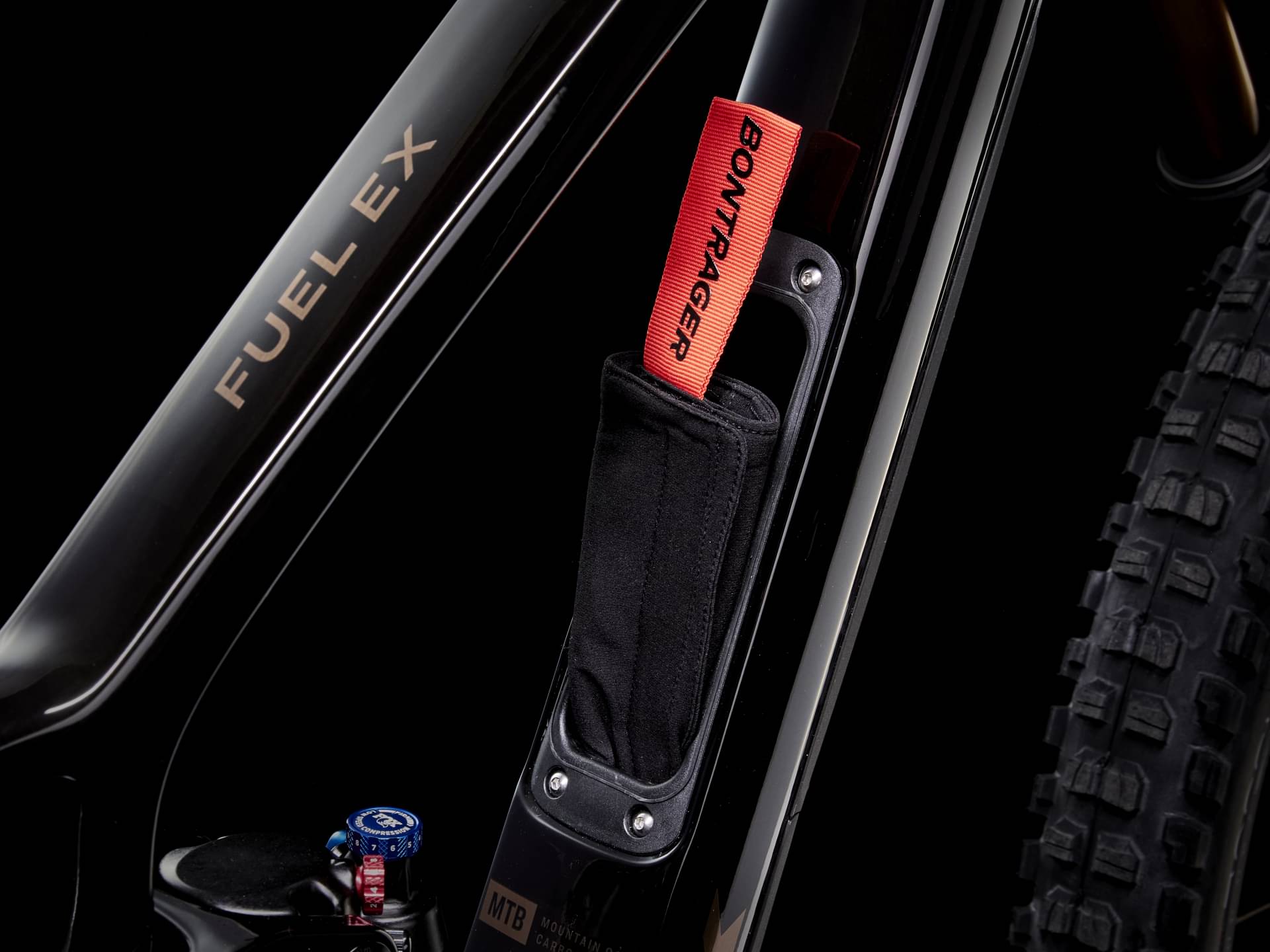

OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Suspension Fork
Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 150mm travel

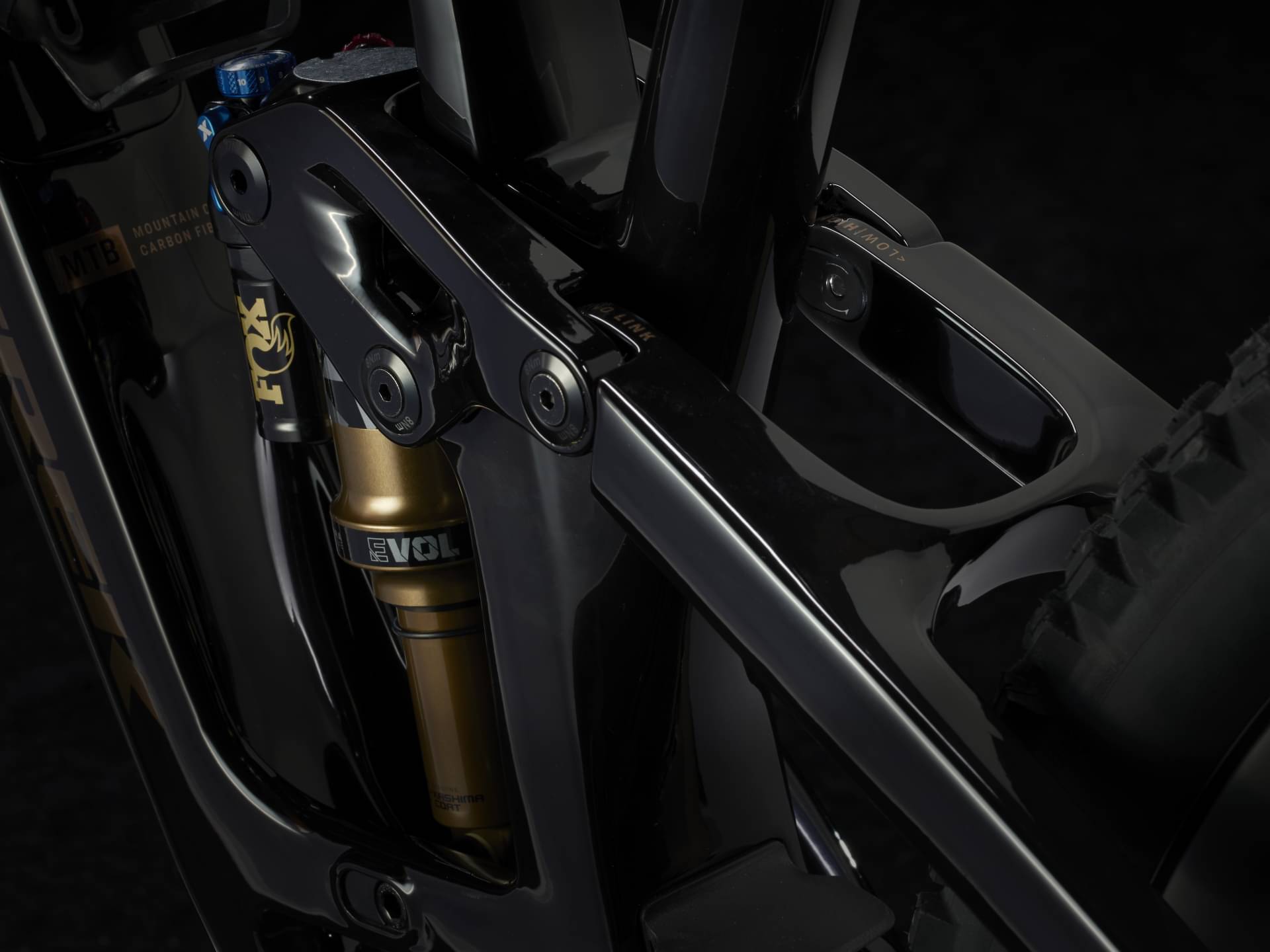

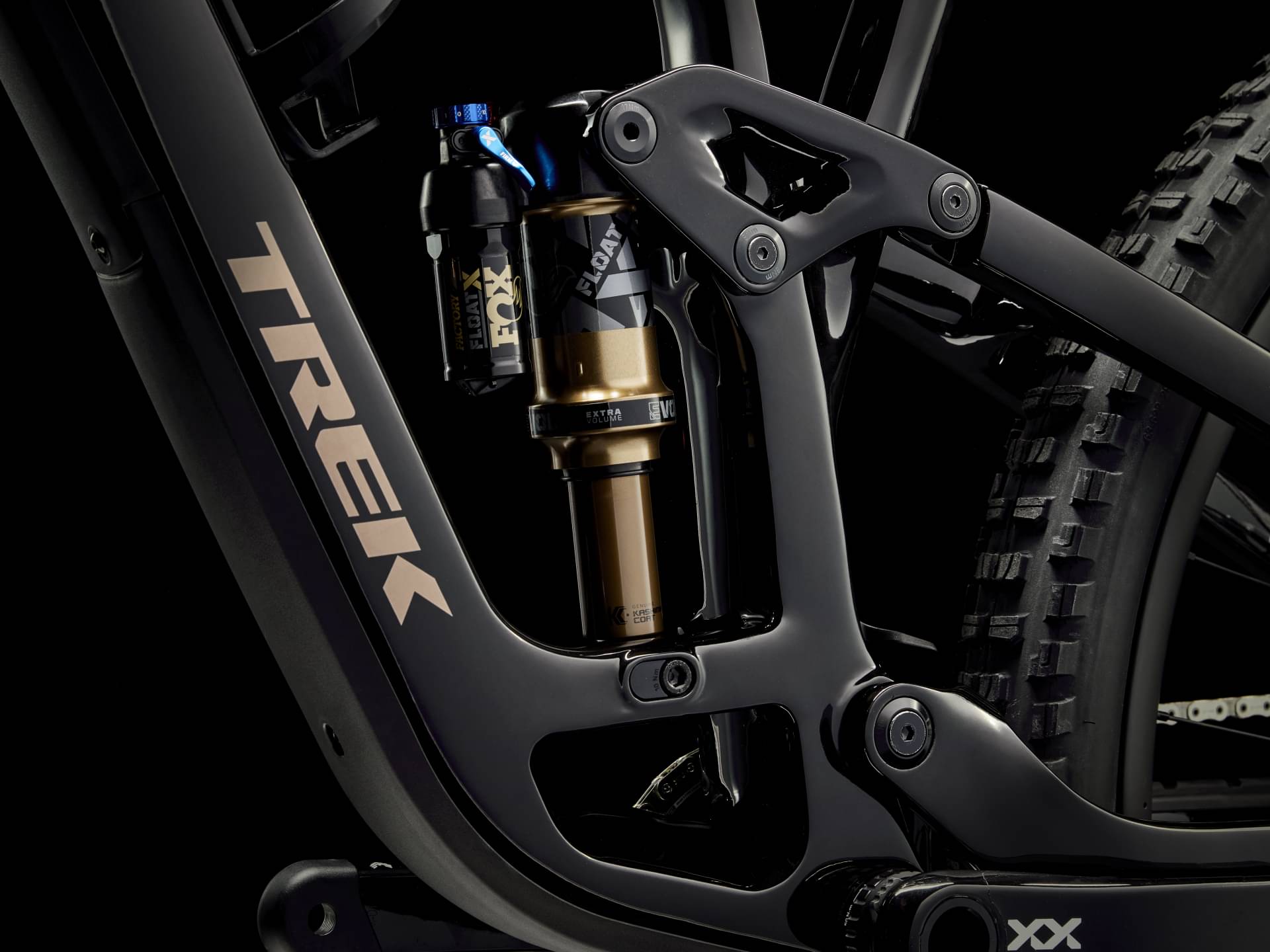

Rear Shock
Fox Factory Float X, 2-position damper, 185mm x 55mm
Drivetrain

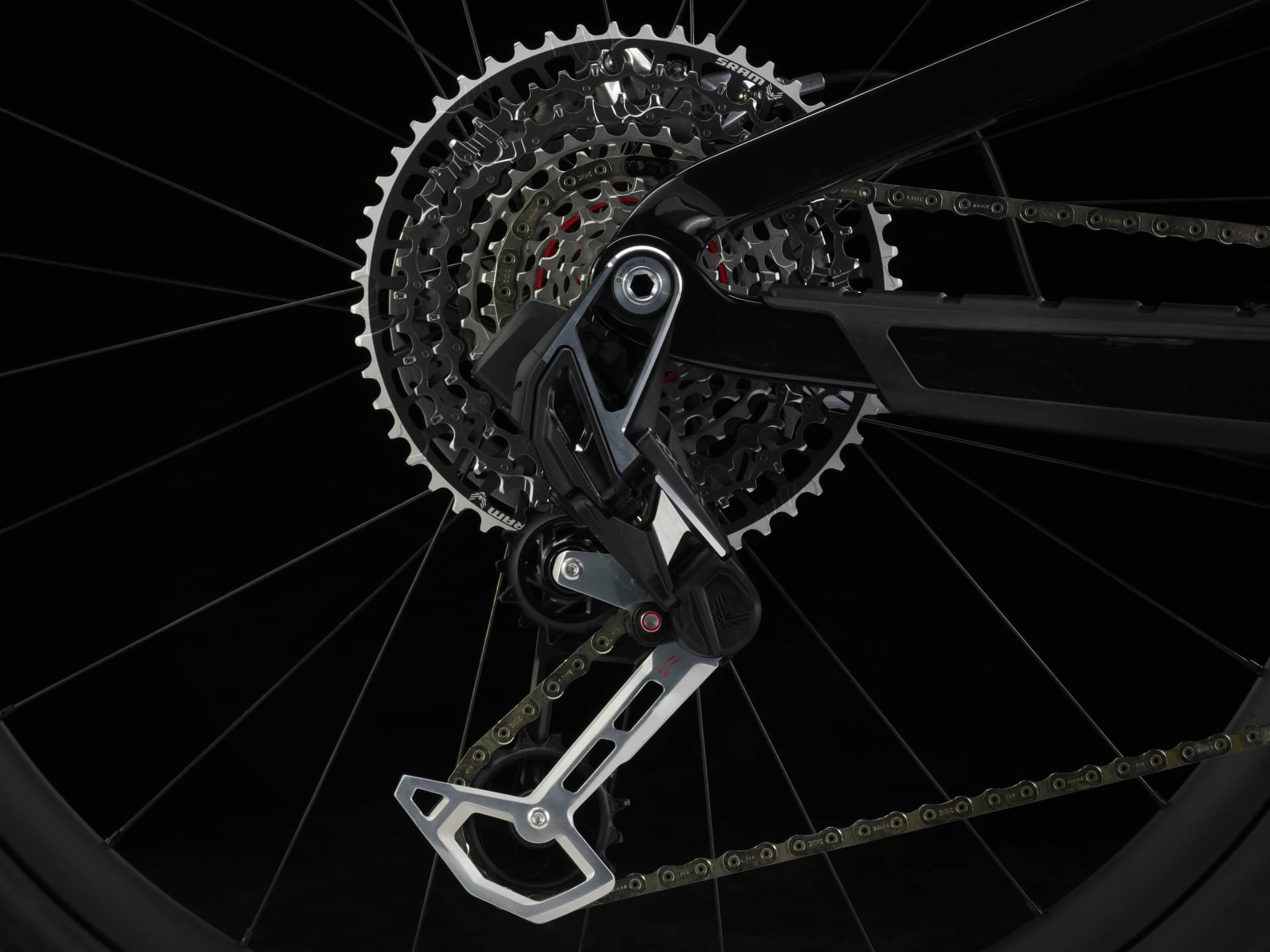

Rear Derailleur
SRAM XX Eagle AXS, T-Type
Shift Levers
SRAM AXS POD Ultimate
Cassette
SRAM Eagle XS-1297, T-Type, 10-52, 12 speed

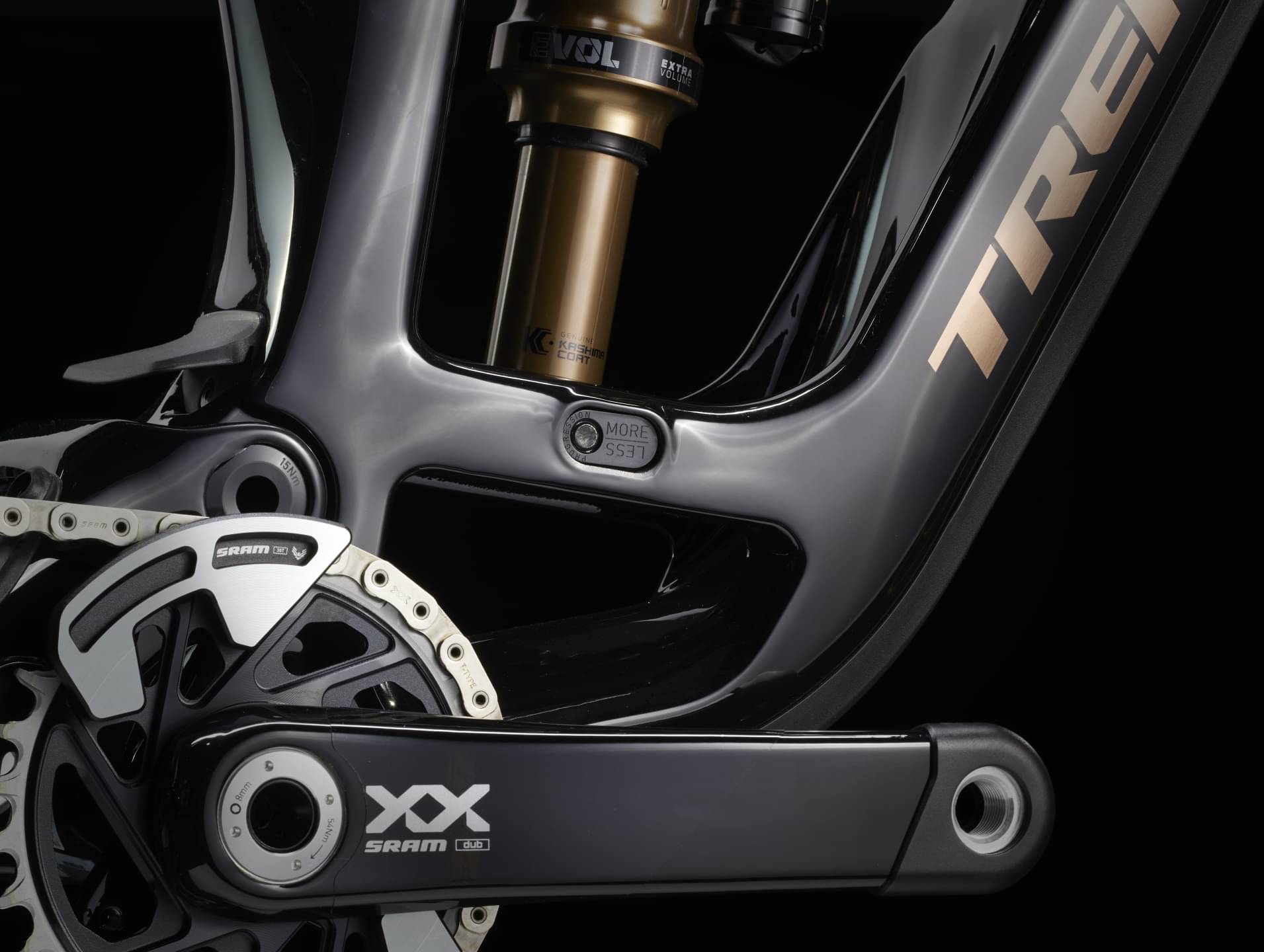

Crank
SRAM XX Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
Bottom Bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Chain
SRAM XX Eagle, T-Type, 12 speed
Wheels

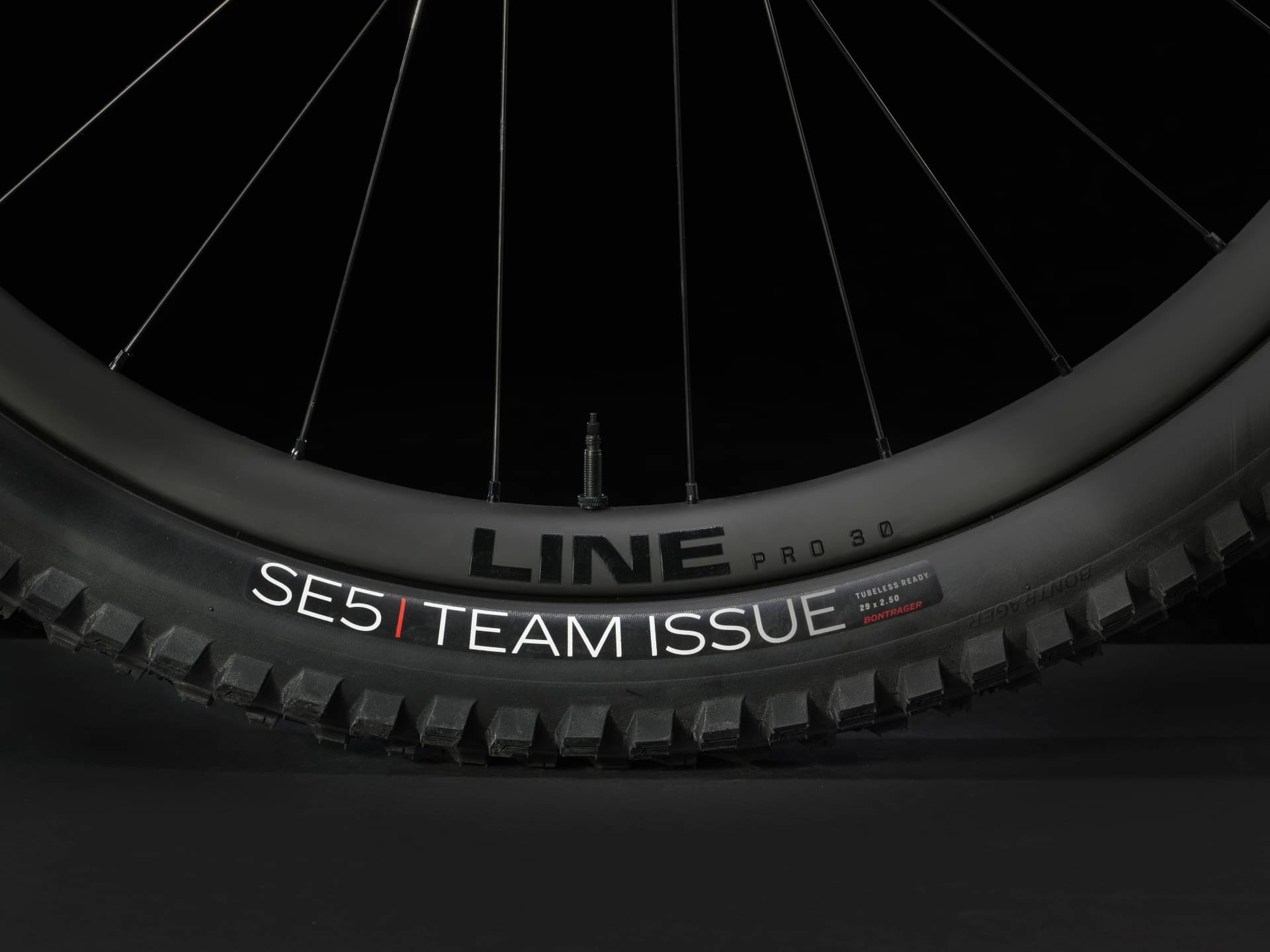

Rims

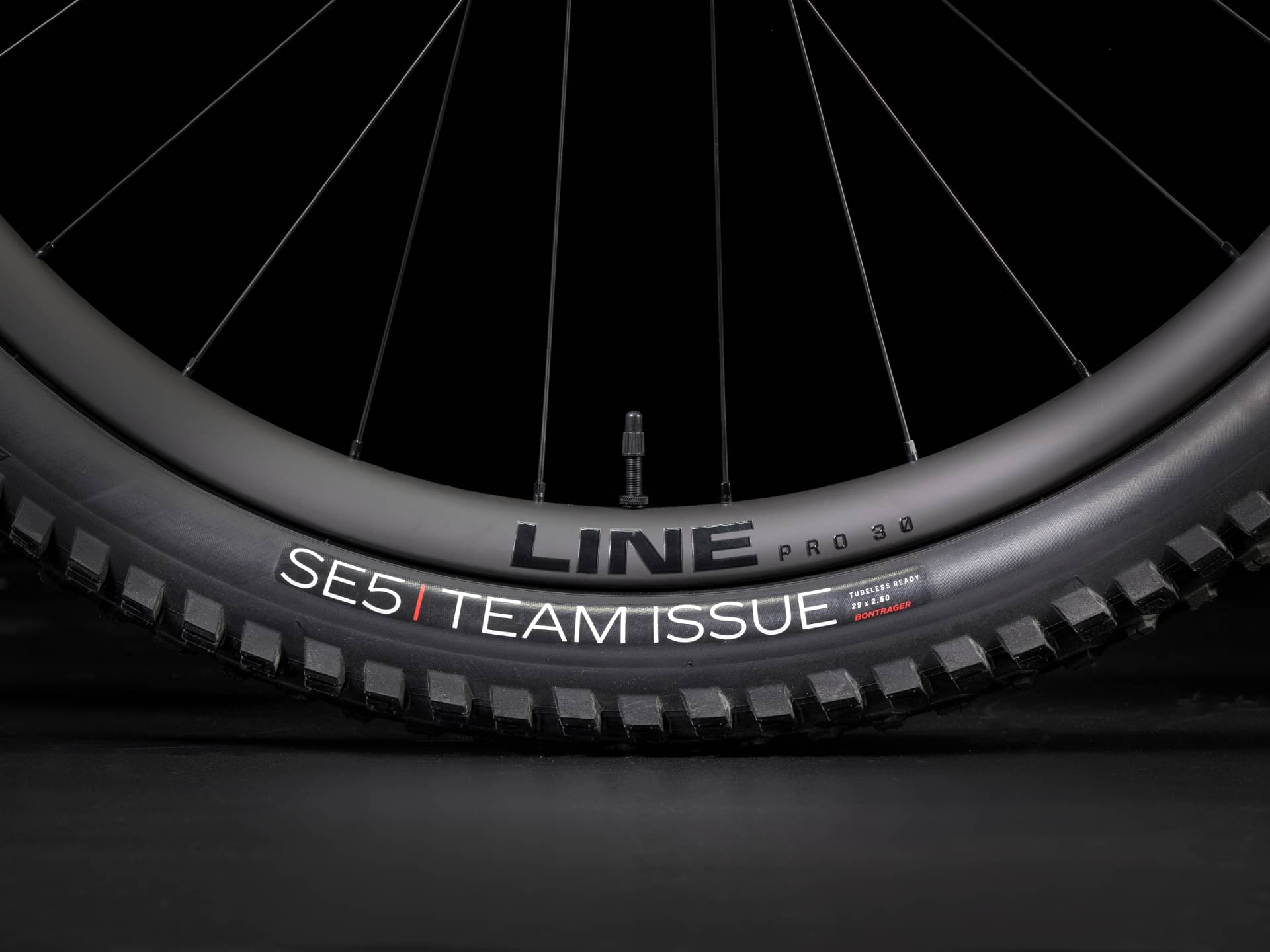

Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50''
Brakes
Brakes

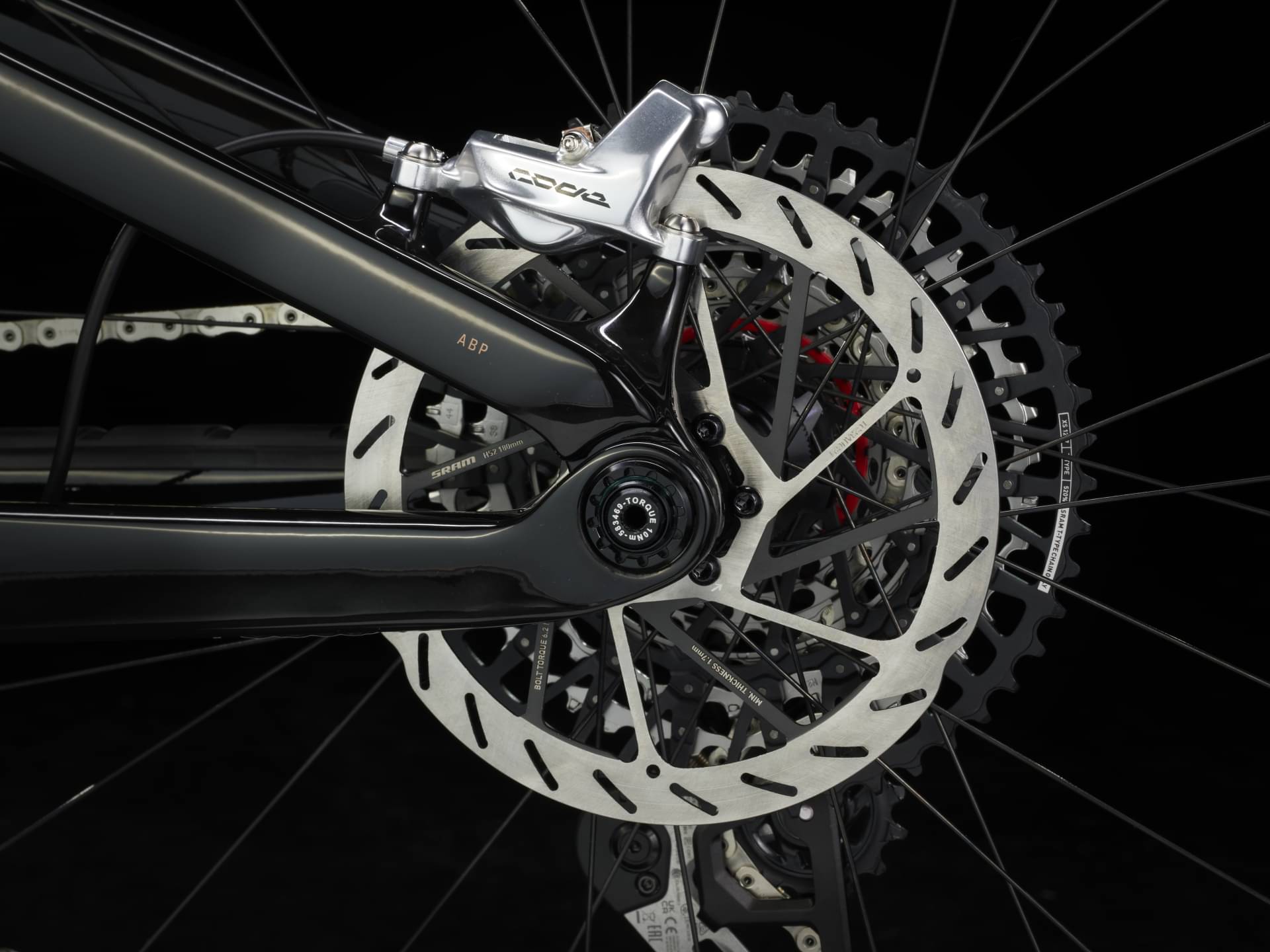

SRAM Code Ultimate 4-piston hydraulic disc
Cockpit
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset

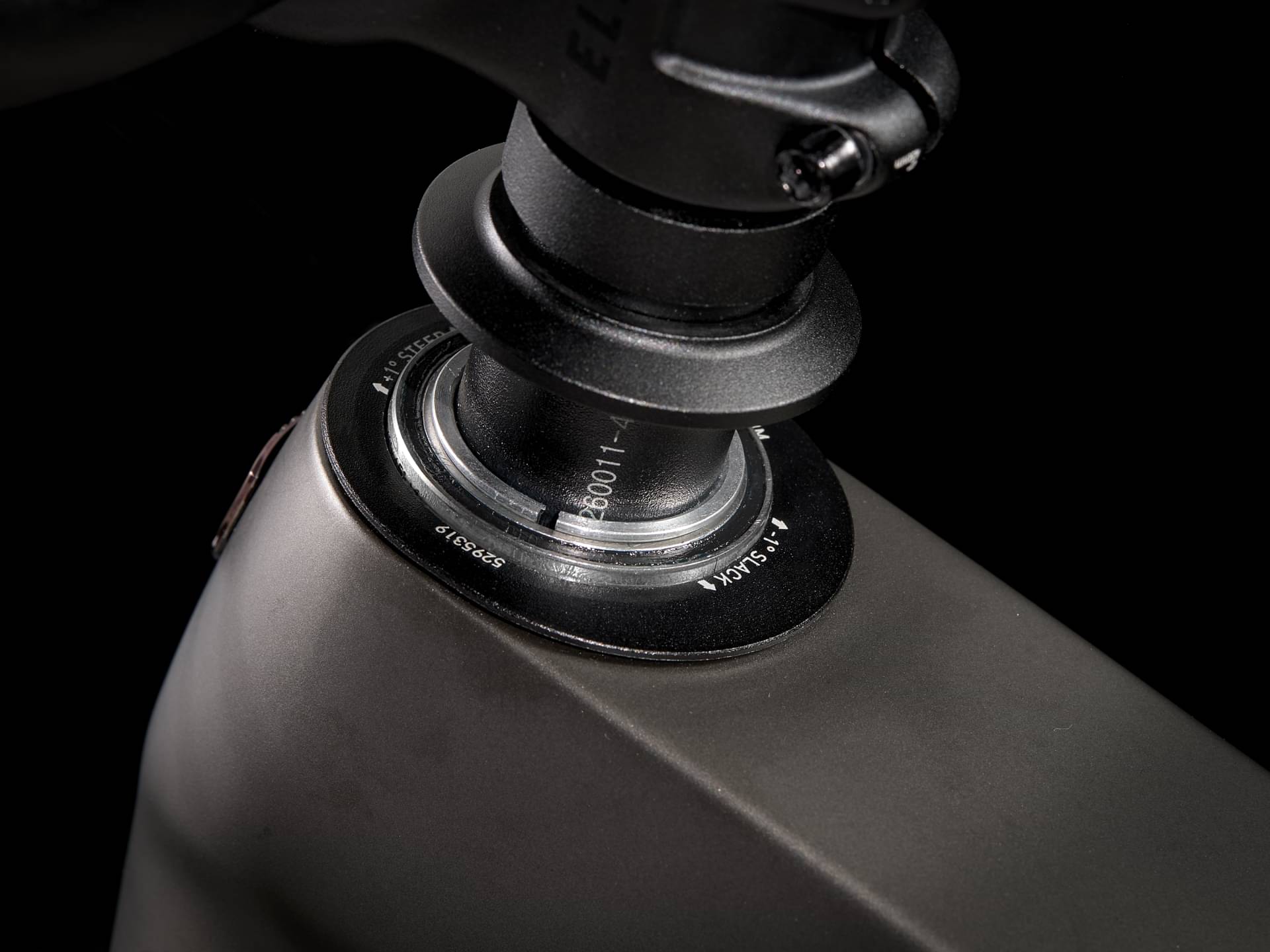

Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, ML, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.34 mm | 1.37 mm | 1.29 mm | 1.31 mm | 1.26 mm | 1.28 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 335 mm | 343 mm | 335 mm | 343 mm | 335 mm | 343 mm | 335 mm | 343 mm | 335 mm |
| Front Center | 754 mm | 754 mm | 781 mm | 781 mm | 796 mm | 796 mm | 813 mm | 813 mm | 845 mm | 844 mm |
| Rake | 49 mm | 49 mm | 49 mm | 48 mm | 45 mm | 44 mm | 45 mm | 44 mm | 39 mm | 40 mm |
| Trail | 125 mm | 129 mm | 125 mm | 129 mm | 125 mm | 129 mm | 125 mm | 129 mm | 125 mm | 129 mm |
| Stack | 605 mm | 609 mm | 609 mm | 614 mm | 609 mm | 614 mm | 614 mm | 618 mm | 627 mm | 632 mm |
| Reach | 428 mm | 422 mm | 453 mm | 447 mm | 473 mm | 467 mm | 488 mm | 482 mm | 518 mm | 512 mm |
| Top Tube Length | 550 mm | 551 mm | 580 mm | 581 mm | 603 mm | 604 mm | 623 mm | 624 mm | 657 mm | 659 mm |
| Seat Tube Angle | 79.2 ° | 78.6 ° | 78.8 ° | 78.2 ° | 78 ° | 77.5 ° | 77.7 ° | 77.2 ° | 77.1 ° | 76.6 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 420 mm | 420 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.1 ° | 64.5 ° | 65.1 ° | 64.5 ° | 65.1 ° | 64.5 ° | 65.1 ° | 64.5 ° | 65 ° | 64.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 120 mm | 120 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1182 mm | 1183 mm | 1209 mm | 1210 mm | 1229 mm | 1230 mm | 1246 mm | 1247 mm | 1283 mm | 1284 mm |
| Bottom Bracket Drop | 31 mm | 38 mm | 31 mm | 38 mm | 31 mm | 38 mm | 31 mm | 38 mm | 30 mm | 38 mm |
| Standover Height | 735 mm | 729 mm | 741 mm | 734 mm | 748 mm | 742 mm | 751 mm | 745 mm | 764 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 173 cm | 173 cm | 177 cm | 177 cm | 187 cm | 187 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 180 cm | 180 cm | 189 cm | 189 cm | 195 cm | 195 cm |
About this model
Fuel EX 9.9 XX AXS T-Type Gen 6 is part of the Trek Fuel model. 277 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Fuel EX 8 GX AXS T-Type Gen 6 2024 has a starting price of 4999$. Trek Fuel EX 9.9 XX AXS T-Type Gen 6 2024 on the other hand is the most expensive at 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Fuel EX 9.9 XX AXS T-Type Gen 6 price was 10999$. If we compare this with the average Trail bike cost we notice that the price is 298.23% more expensive.
Average weight for Trail bikes
Trail bikes weigh an average of 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.3 kg (31.53 lbs), the Fuel EX 9.9 XX AXS T-Type Gen 6 model is considerably heavier than average. In conclusion, the average Trail bike weighs 11.02% less than Fuel EX 9.9 XX AXS T-Type Gen 6.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Factory Float X rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Fuel EX 9.9 XX AXS T-Type Gen 6 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 9.9 XX AXS T-Type Gen 6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Fuel EX 9.9 XX AXS T-Type Gen 6 comes in 10 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Trek Fuel EX 9.9 XX AXS T-Type Gen 6 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
