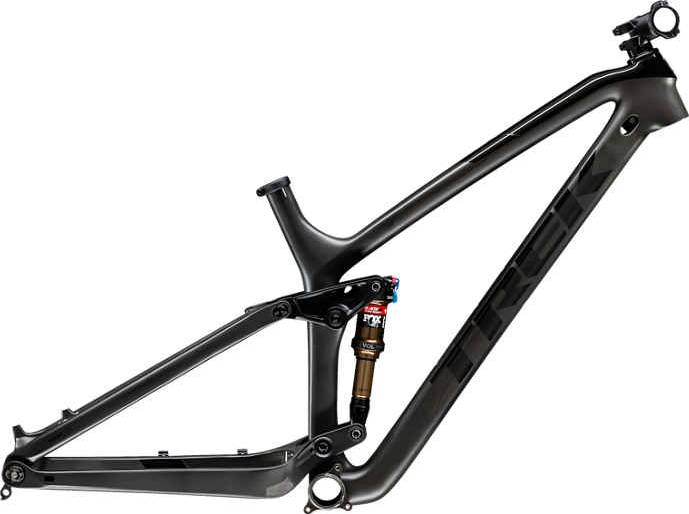

Trek Fuel EX C Frameset 2019
2019 Mountain
Estimate price |
3,299$
Weight | 2.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 130mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 130mm travel
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Cockpit
Stem
Bontrager Line Pro, Knock Block, 35mm clamp, 0 degree, 60mm length
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.57 mm | 1.4 mm | 1.44 mm | 1.34 mm | 1.38 mm | 1.3 mm | 1.33 mm | 1.26 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm | 344 mm | 335 mm |
| Front Center | 691 mm | 690 mm | 726 mm | 725 mm | 743 mm | 742 mm | 758 mm | 757 mm | 784 mm | 783 mm |
| Rake | 51 mm | 51 mm | 53 mm | 51 mm | 53 mm | 51 mm | 53 mm | 51 mm | 53 mm | 52 mm |
| Trail | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm | 99 mm | 103 mm |
| Stack | 598 mm | 603 mm | 597 mm | 603 mm | 597 mm | 603 mm | 597 mm | 603 mm | 606 mm | 612 mm |
| Reach | 393 mm | 385 mm | 427 mm | 420 mm | 444 mm | 437 mm | 459 mm | 452 mm | 481 mm | 474 mm |
| Top Tube Length | 559 mm | 560 mm | 593 mm | 595 mm | 610 mm | 612 mm | 625 mm | 627 mm | 651 mm | 651 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° | 74.7 ° | 74 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 440 mm | 440 mm | 470 mm | 470 mm | 510 mm | 510 mm |
| Head Tube Angle | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° | 67.7 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 426 mm | 429 mm | 426 mm | 429 mm | 426 mm | 429 mm | 426 mm | 429 mm | 426 mm | 429 mm |
| Wheelbase | 1115 mm | 1116 mm | 1150 mm | 1151 mm | 1167 mm | 1168 mm | 1182 mm | 1183 mm | 1208 mm | 1209 mm |
| Bottom Bracket Drop | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm | 30 mm | 39 mm |
| Standover Height | 761 mm | 754 mm | 741 mm | 734 mm | 736 mm | 729 mm | 731 mm | 724 mm | 741 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EX C Frameset completes the Trek Fuel model. Trek launched 277 frames of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Trek Fuel EX AL Frameset 2019 is the cheapest frame model and costs 1999$. Trek Fuel EX C Frameset 2019 is the most expensive one and costs 3299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3299$. Doing a quick comparison, we notice that Fuel EX C Frameset price is 90.03% higher than the average cost of a Trail frame.
Trail frames average weight
The average weight for Trail frames is 2.93 kg (6.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuel EX C Frameset weighs 2.54 kg (5.6 lbs) and is much lighter than the average. In short, the average Trail frame weight is 15.35% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EX C Frameset components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
