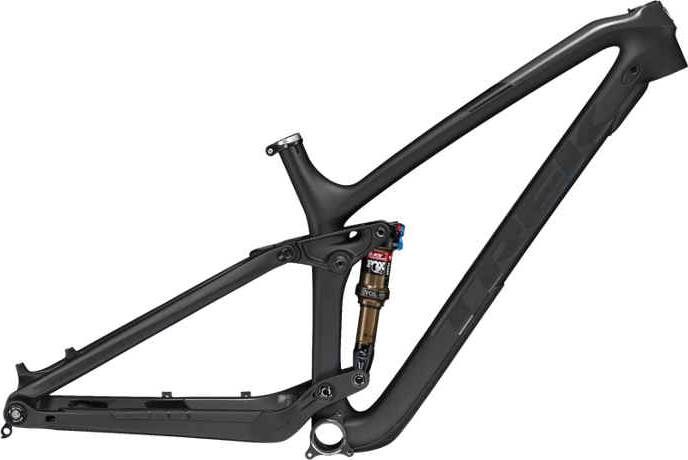

Trek Fuel EX Frameset 2018
2018 Mountain
Estimate price |
2,999$
Weight | 2.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 130mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 130mm travel
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Cockpit
Stem
Bontrager Line Pro, Knock Block, 35mm, 0 degree
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High |
|---|---|
| Stack Reach Ratio | 1.39 mm |
| Bottom Bracket Height | 344 mm |
| Front Center | 726 mm |
| Rake | 53 mm |
| Trail | 98 mm |
| Stack | 605 mm |
| Reach | 435 mm |
| Top Tube Length | 580 mm |
| Seat Tube Angle | 74.7 ° |
| Seat Tube Length | 419 mm |
| Head Tube Angle | 67.7 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 434 mm |
| Wheelbase | 1158 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 745 mm |
| Wheels | 29" |
About this model
Fuel EX Frameset belongs to the Trek Fuel model. Trek released 277 frames variations of this model so far. Take a sneak peek at all Trek Fuel frames models from 2018, by clicking here.
Model range prices
Trek Fuel EX AL Frameset 2018 is the most affordable frame of this model and has a price of 1889$. On the other hand, Trek Fuel EX C Frameset 2018, is the most expensive and costs 2999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2018 and its price was 2999$. Comparing the average cost of a Trail frame to this one, you will see that Fuel EX Frameset price is 72.75% higher.
Average weight for Trail frames
On a deeper look, we notice that the average weight of a Trail frame is 2.93 kg (6.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 2.54 kg (5.6 lbs), the Fuel EX Frameset model is much lighter than average. In short, the average Trail frame weight is 15.35% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EX Frameset components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
