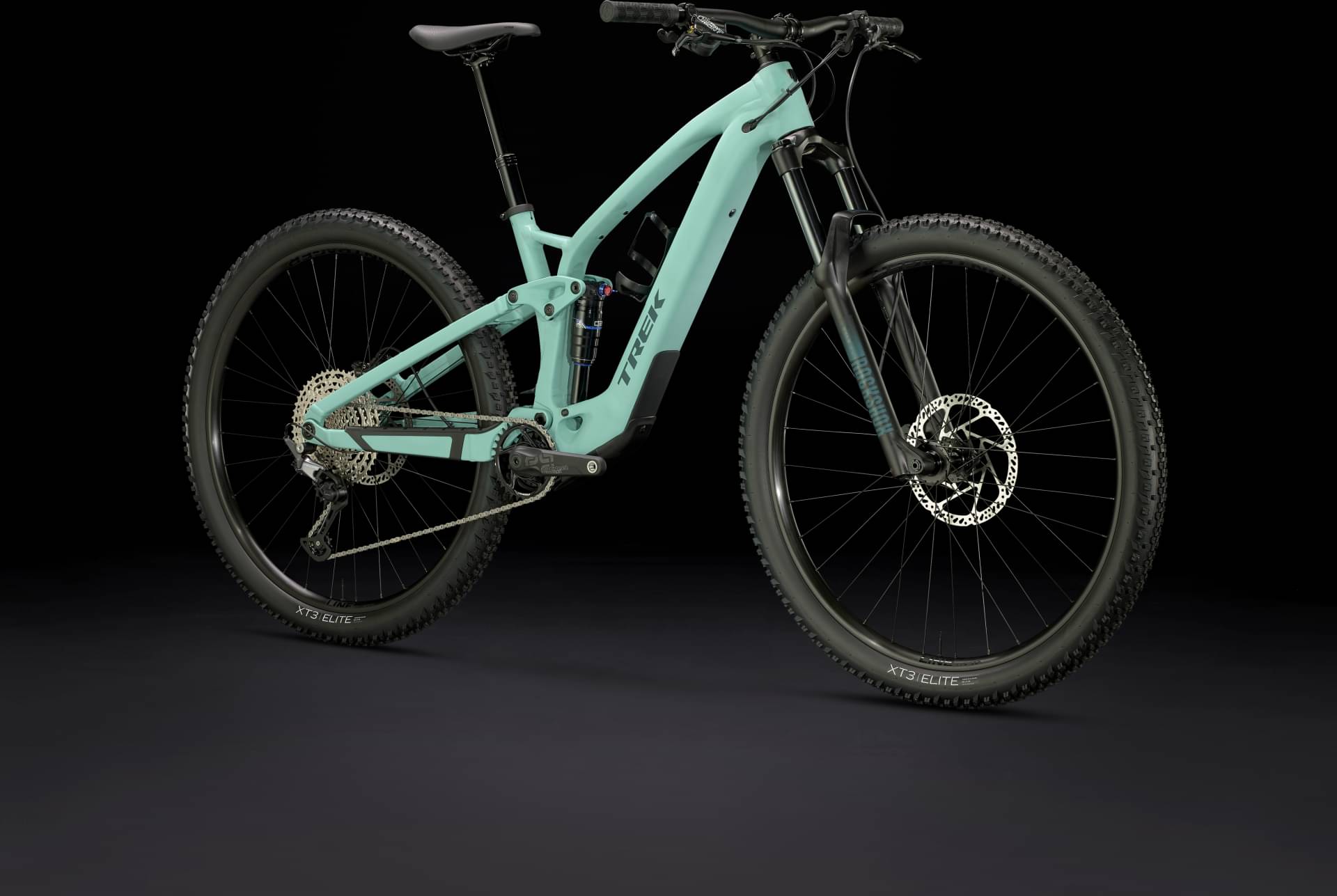

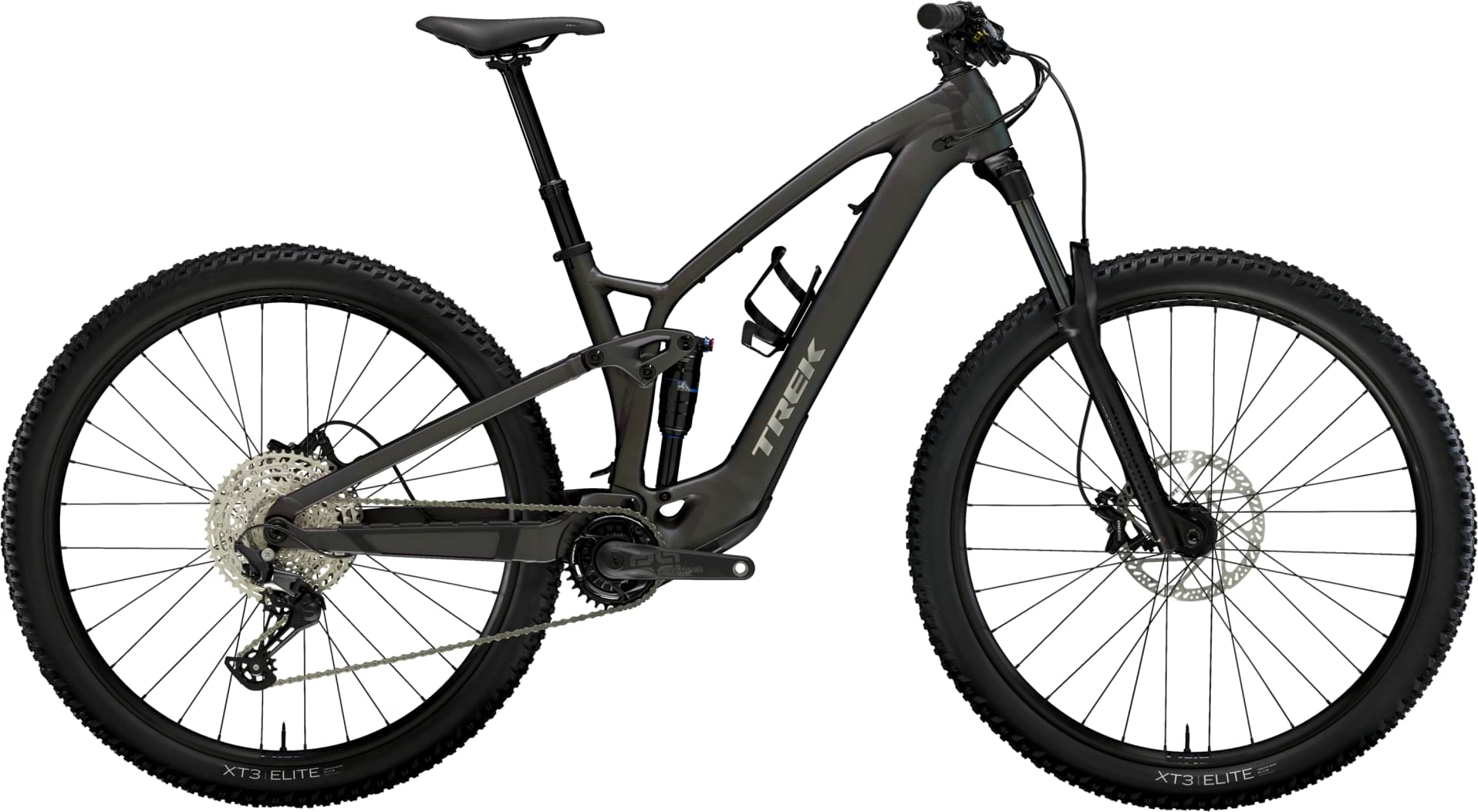

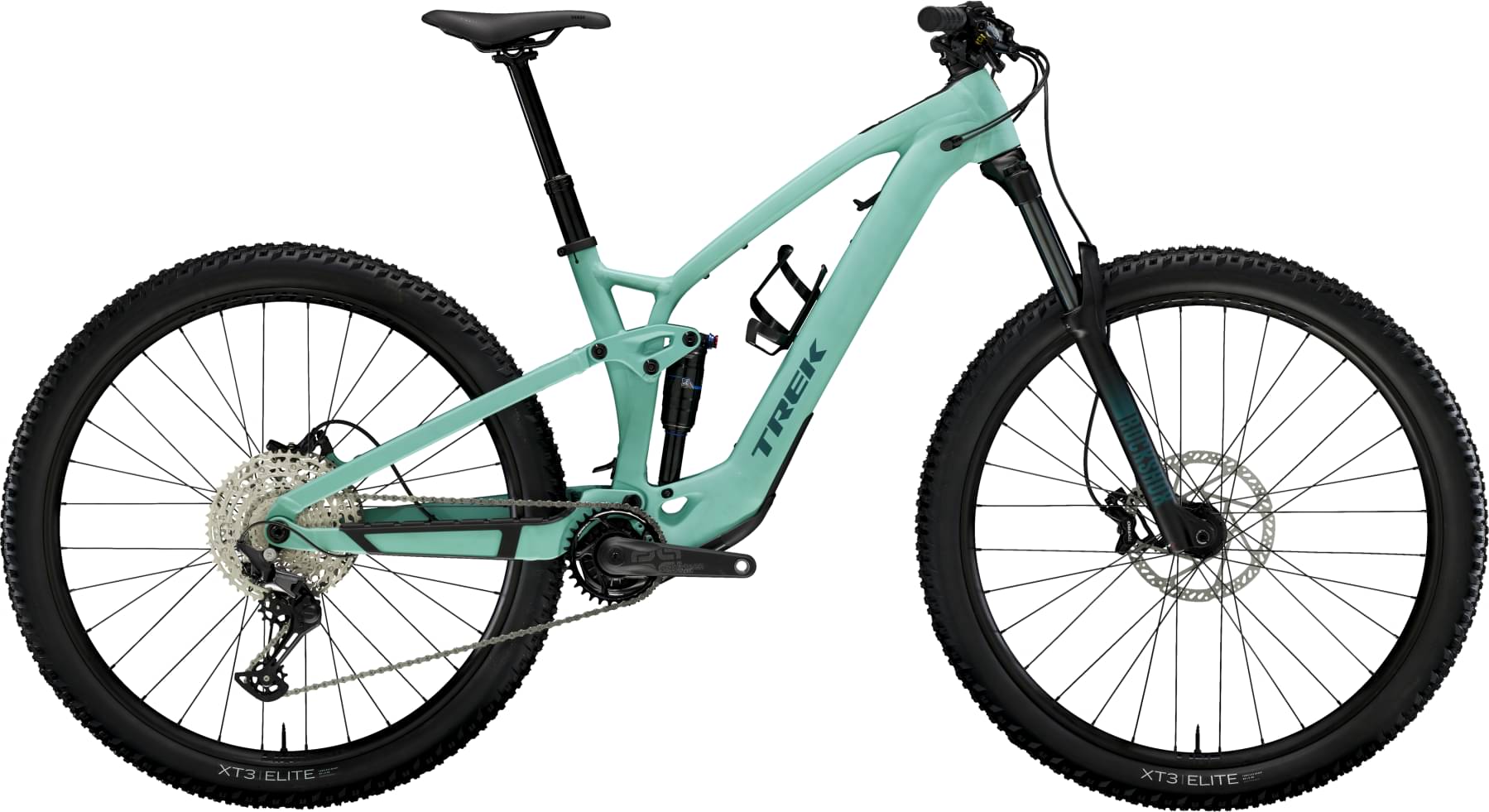

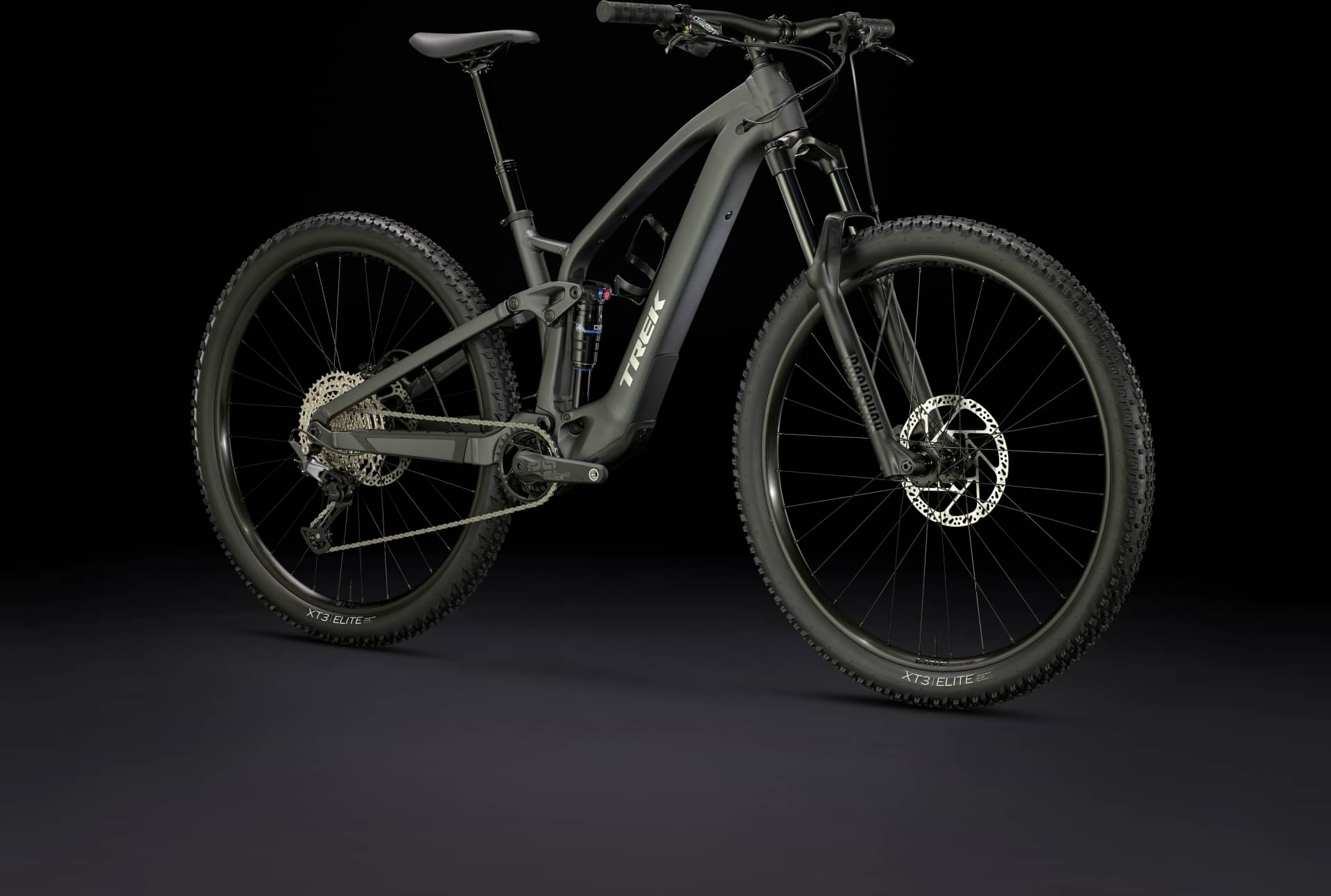

Trek Fuel EXe 5 2024
2024 E-bike
Estimate price |
5,499$
Weight | 20.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, e*thirteen -
Suspension Full -
Motor TQ 250W 50Nm mid-drive -
Battery TQ 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

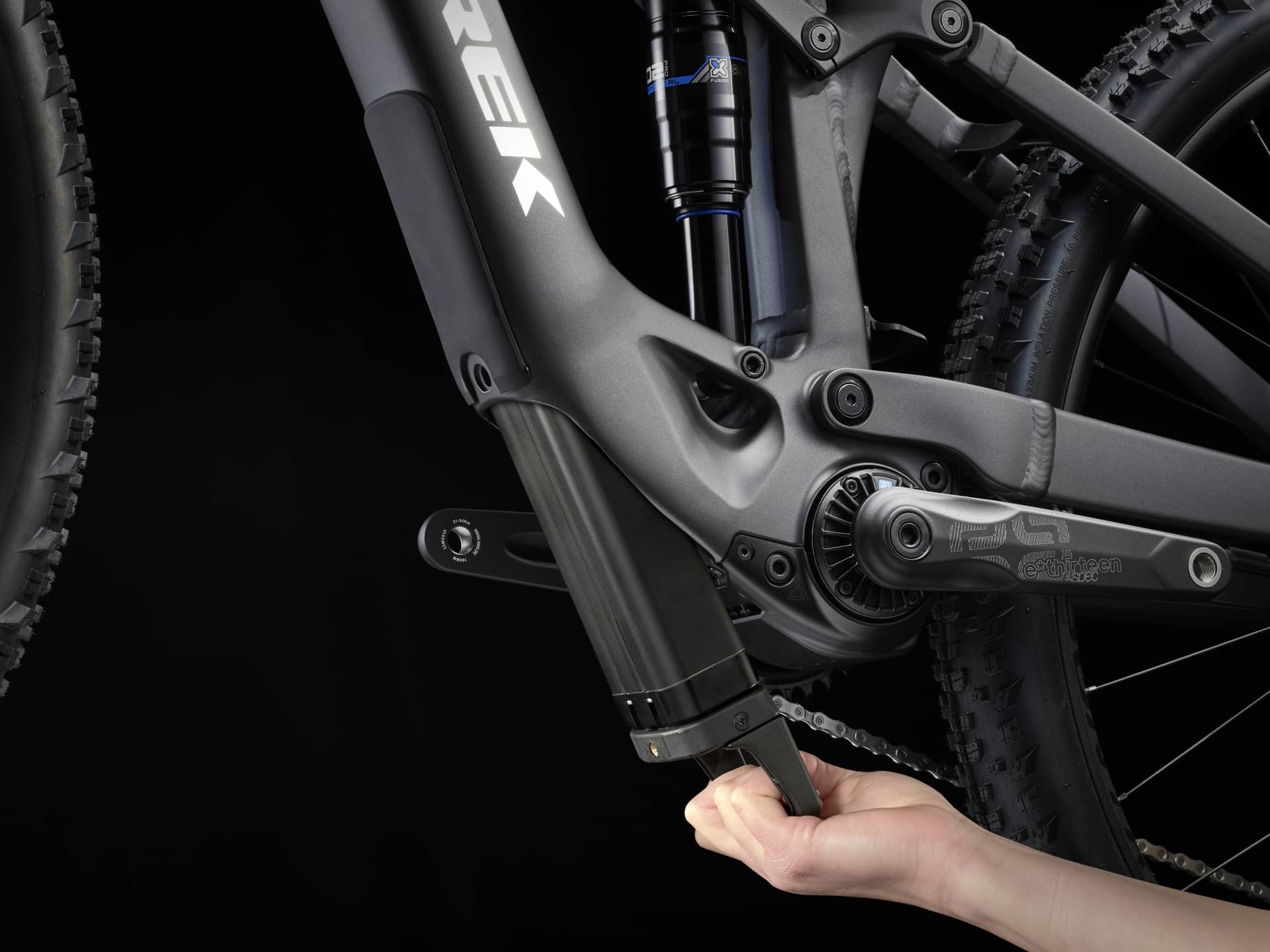

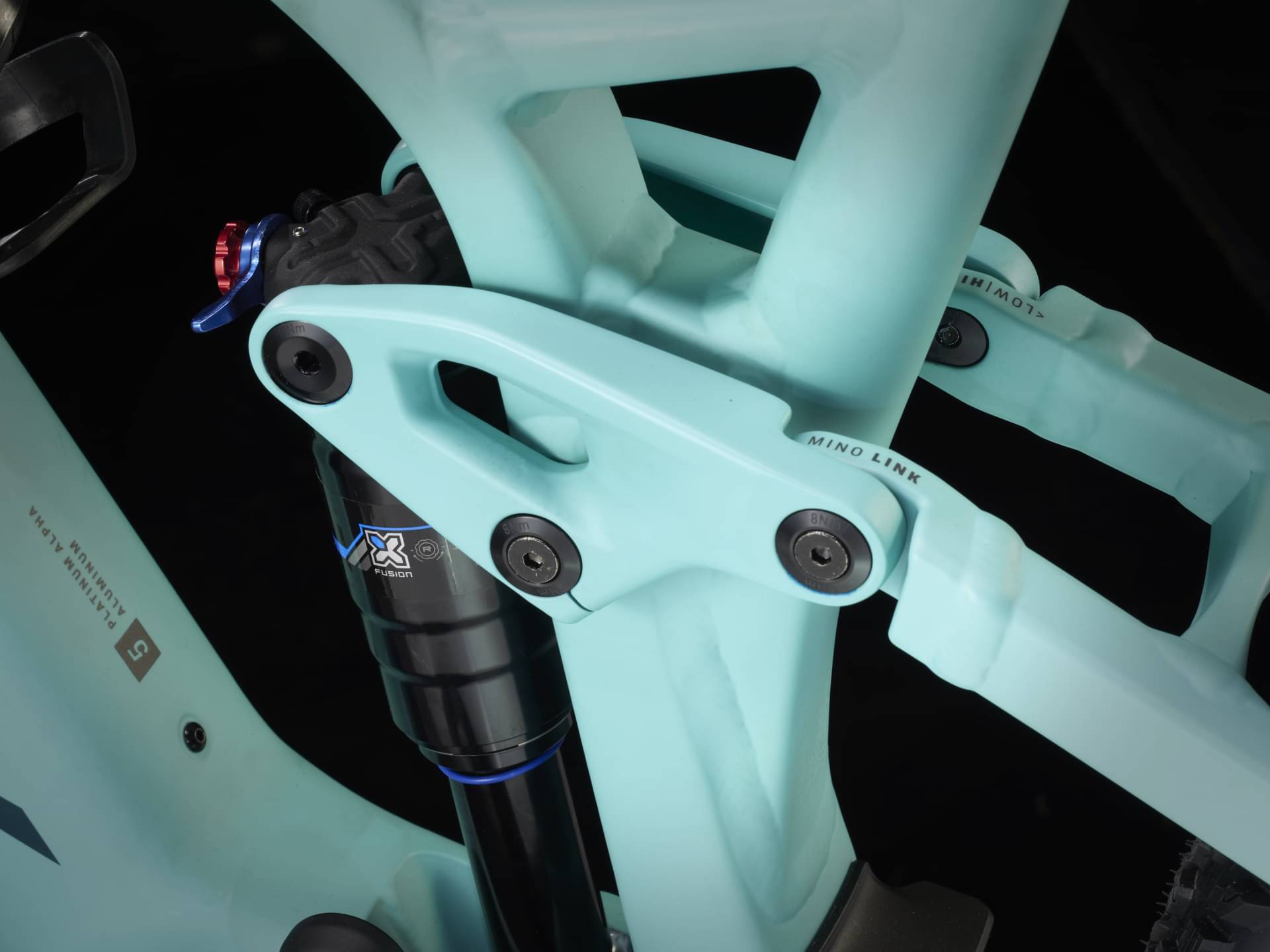

Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel

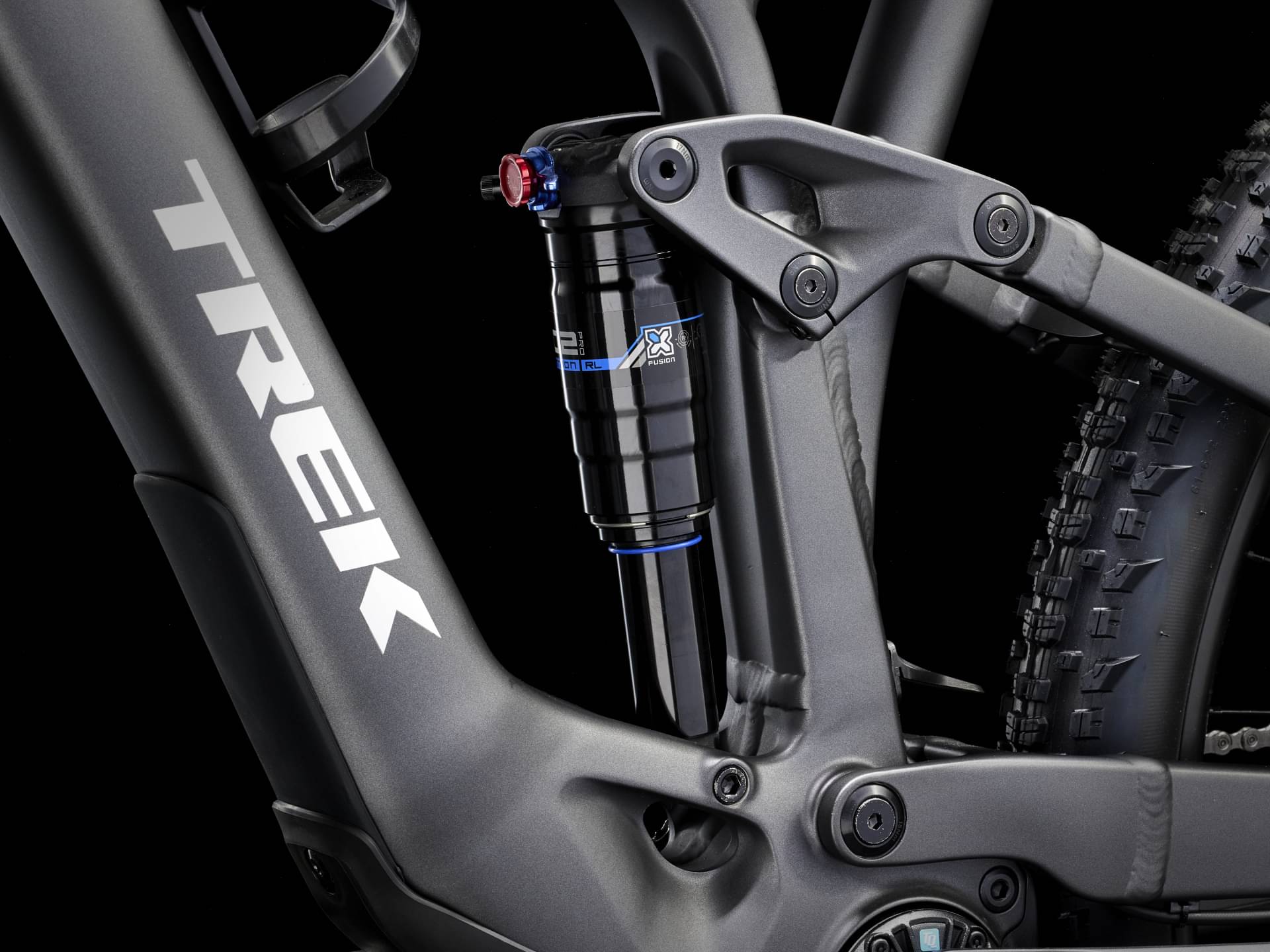

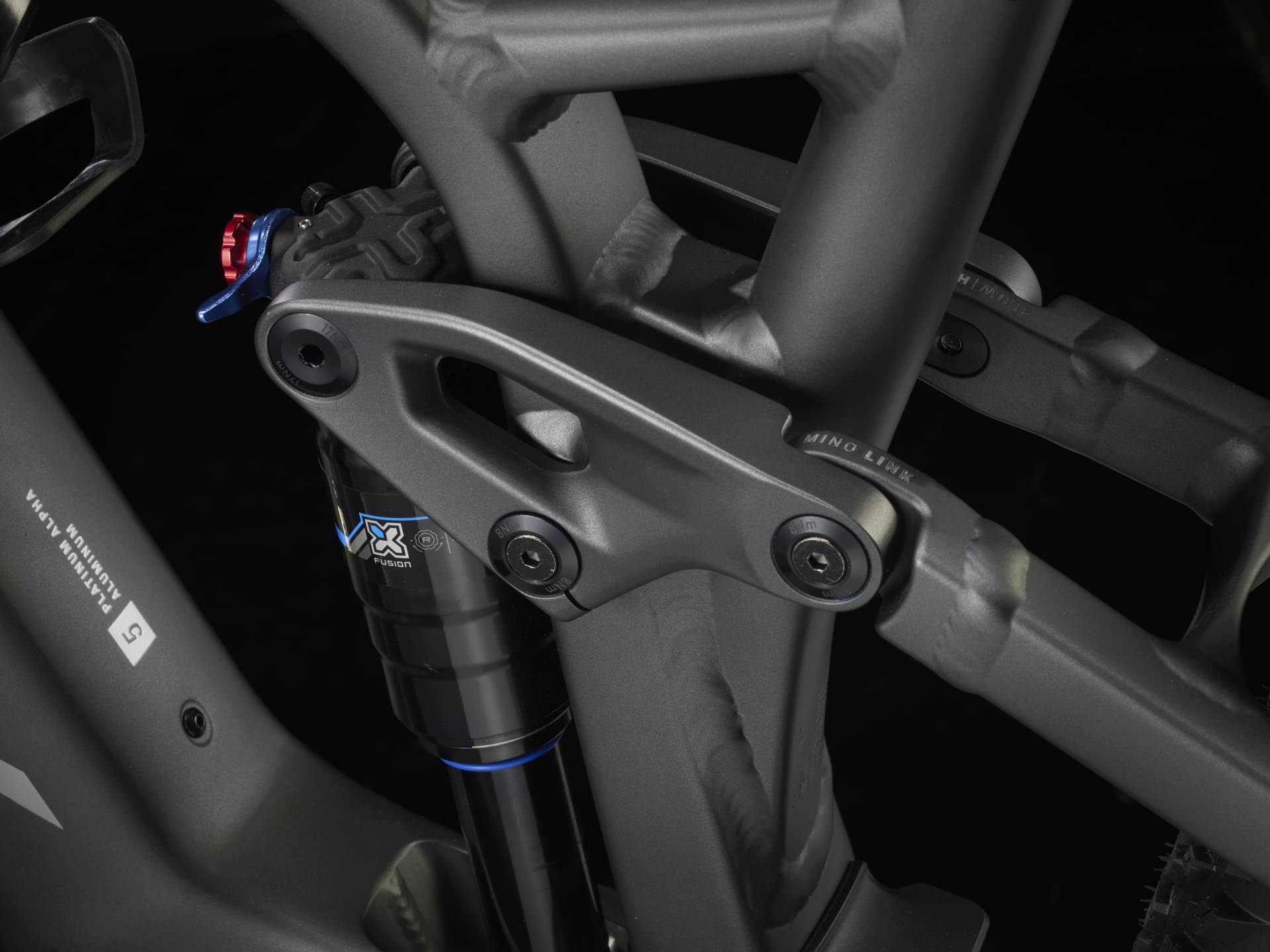

Rear Shock
X-Fusion Pro 2, 2-position damper, 205mm x 60mm
Drivetrain
Rear Derailleur
Shimano Deore M6100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed

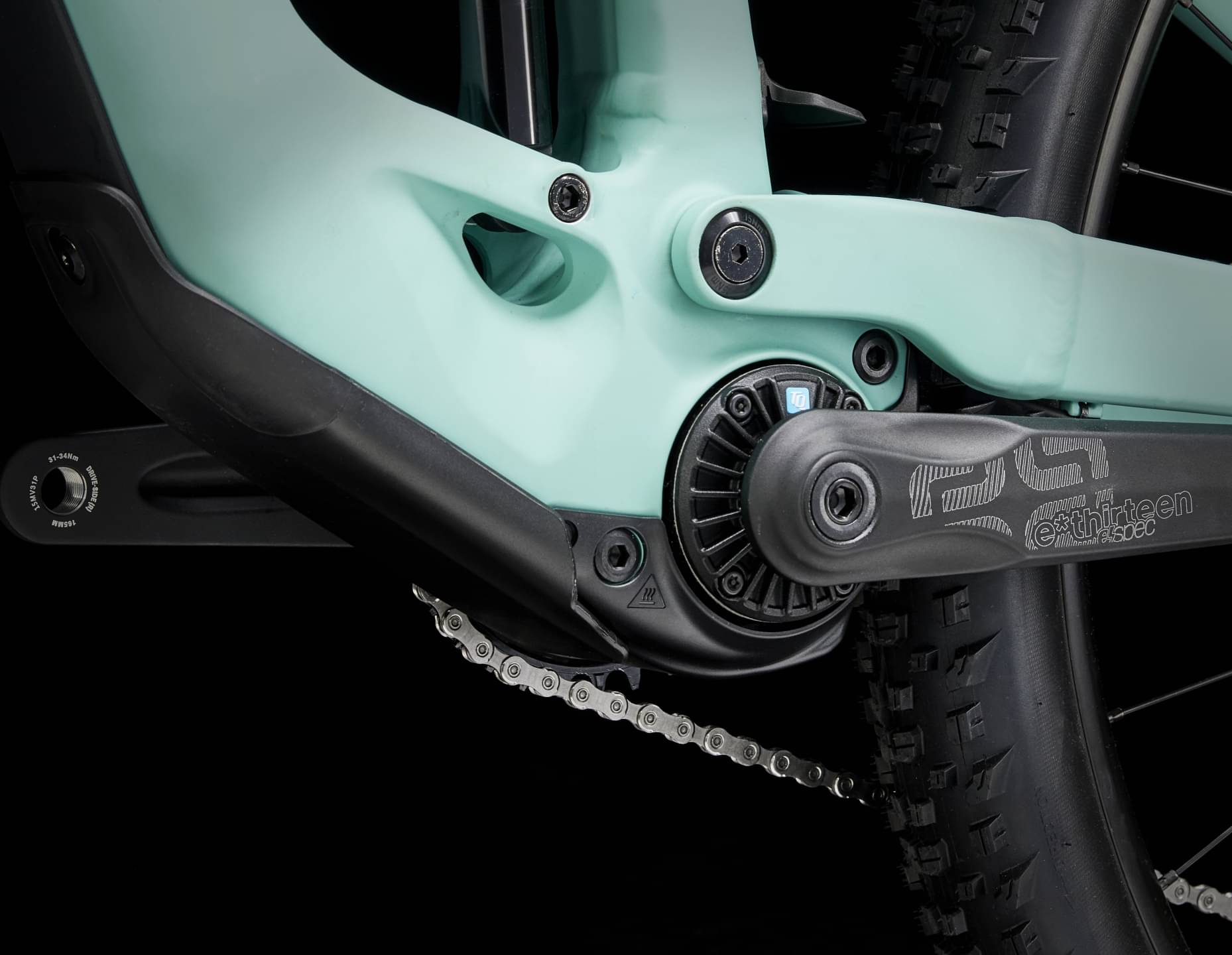

Crank
E*thirteen E*spec Plus, 165mm length
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tires
Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40''
Brakes

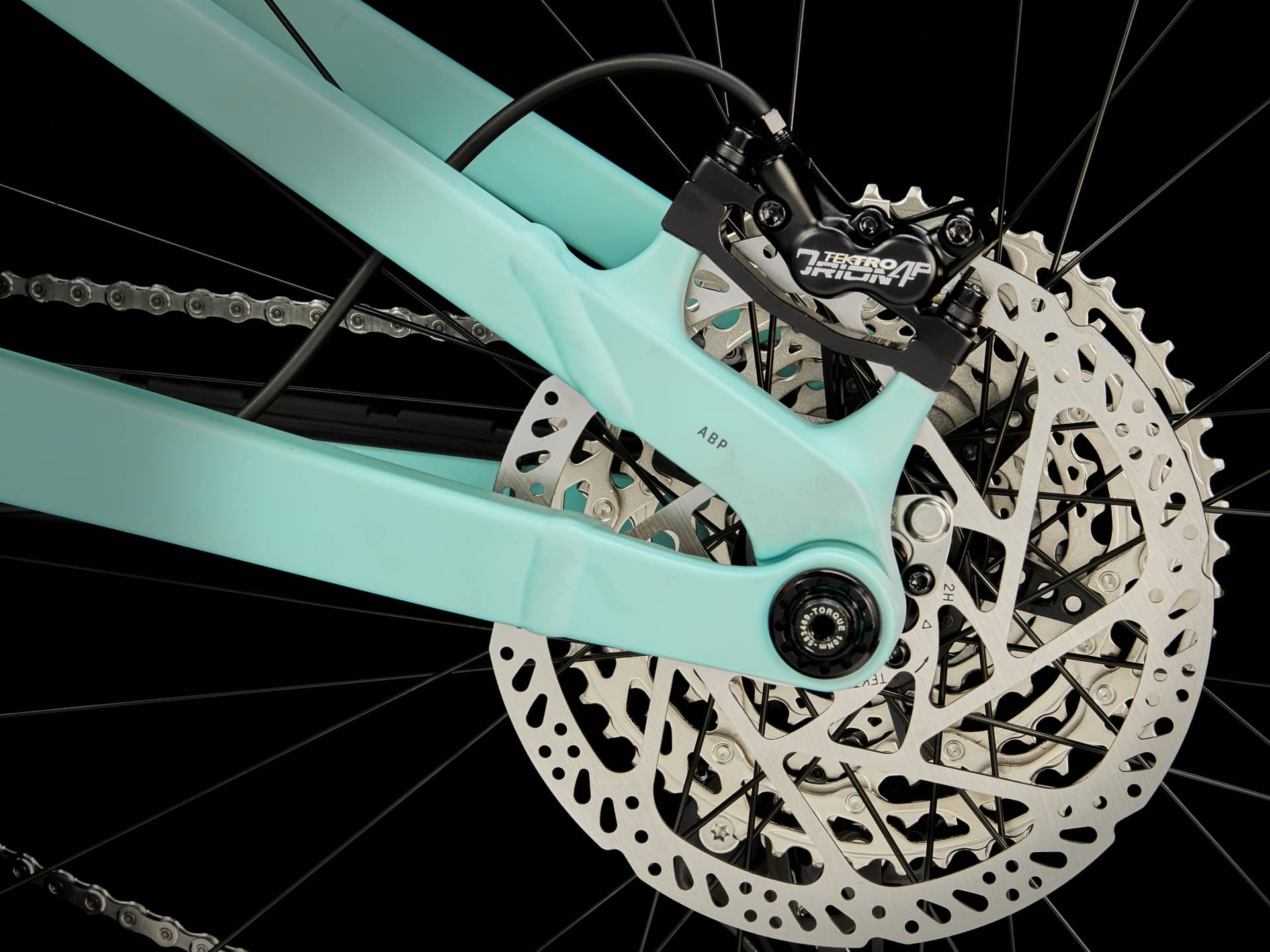

Brakes
Tektro HD-M745 hydraulic disc
Cockpit
Stem
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on

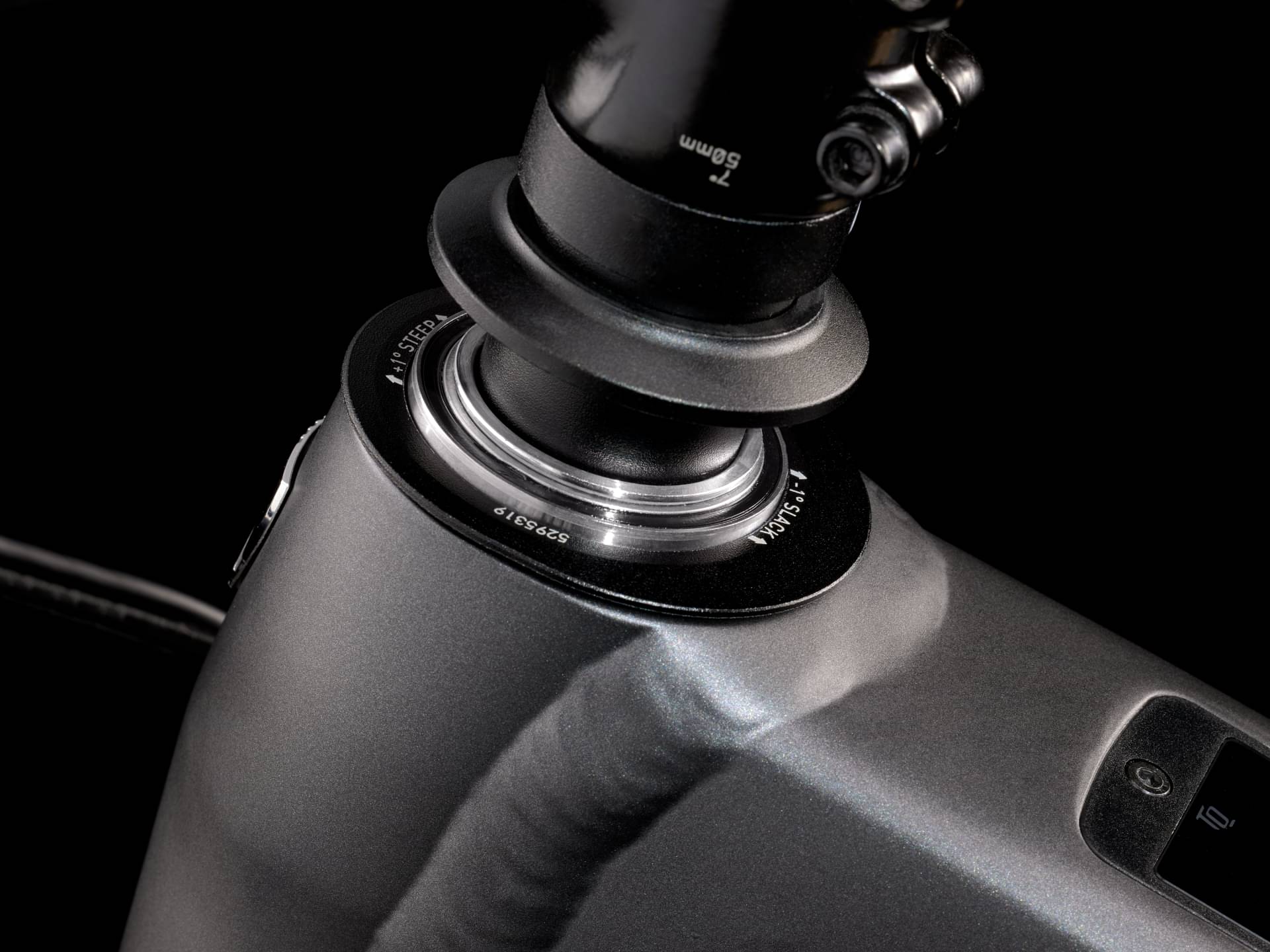

Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: S, TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length; Size: M, TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length; Size: L, XL, TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Motor & Battery
Motor

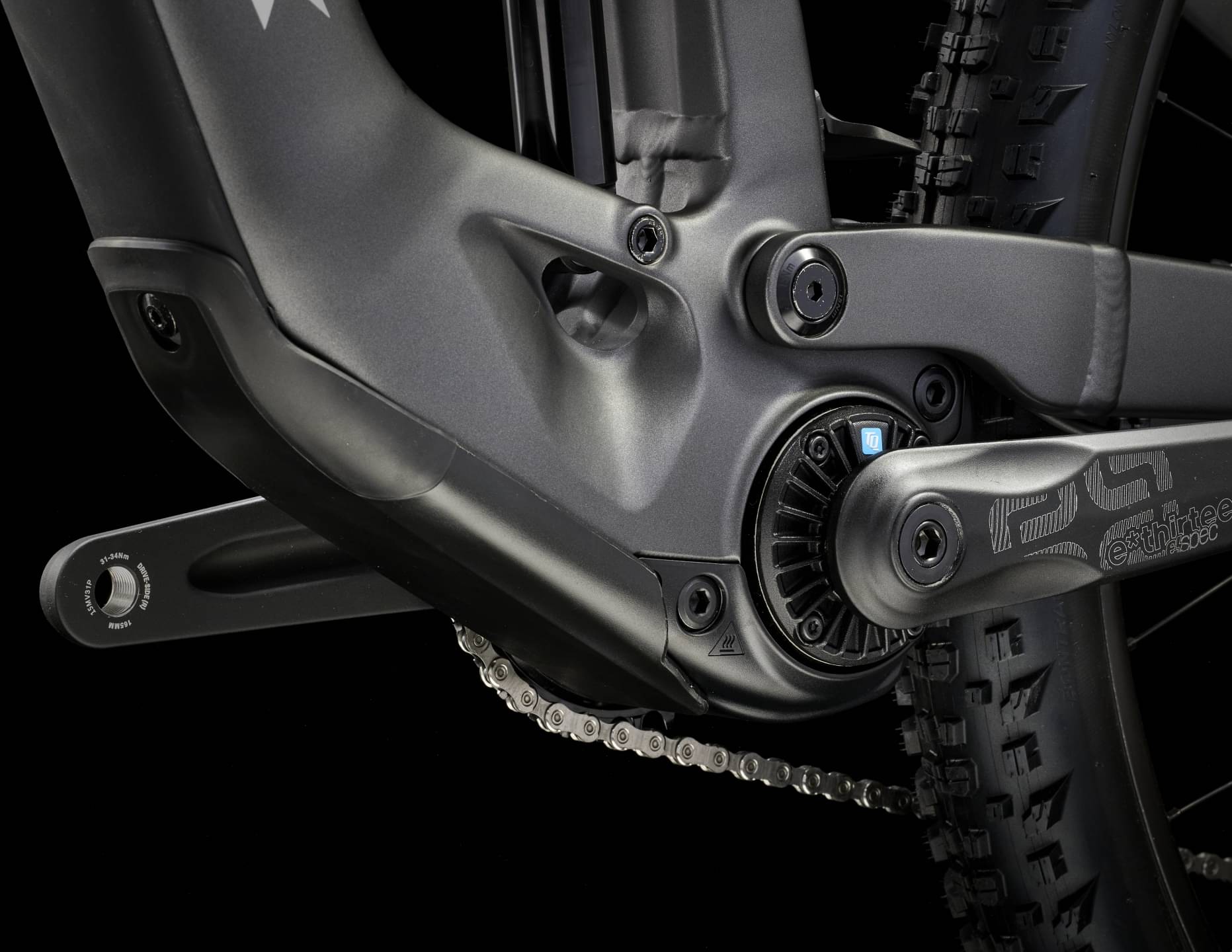

TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

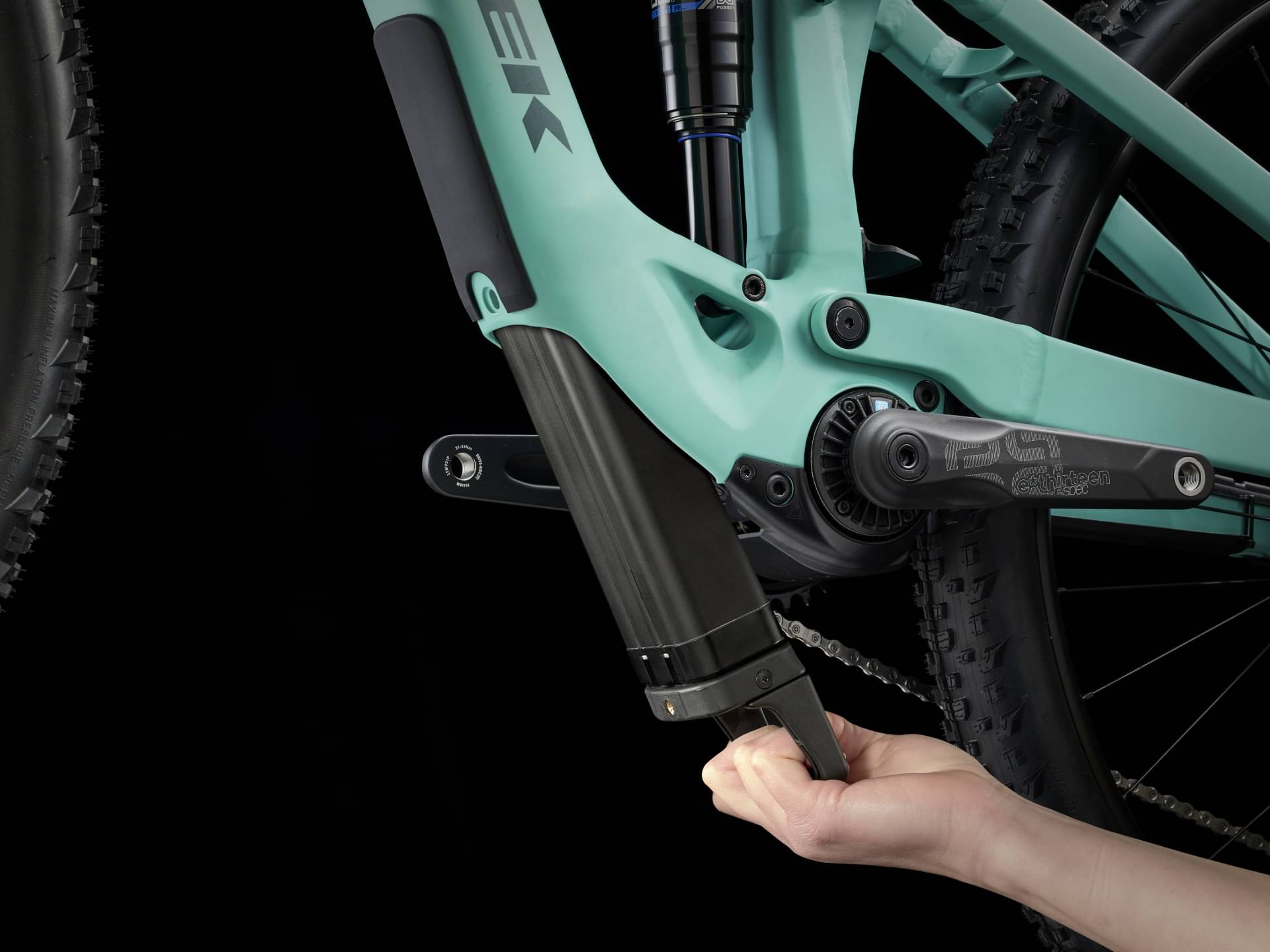

Battery
TQ 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.36 mm | 1.39 mm | 1.28 mm | 1.3 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 613 mm | 617 mm | 622 mm | 626 mm | 622 mm | 626 mm | 631 mm | 635 mm |
| Reach | 431 mm | 425 mm | 456 mm | 450 mm | 486 mm | 480 mm | 511 mm | 505 mm |
| Top Tube Length | 569 mm | 570 mm | 596 mm | 597 mm | 626 mm | 627 mm | 653 mm | 655 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm |
| Wheelbase | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1243 mm | 1244 mm | 1273 mm | 1273 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 729 mm | 723 mm | 730 mm | 724 mm | 736 mm | 730 mm | 756 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EXe 5 is a Trek E Fuel model. 15 e-bikes variations carry this model name so far. You can easily view all of the Trek E Fuel e-bikes models from 2024, here.
Model range prices
Trek Fuel EXe 5 2024 is the cheapest e-bike model and costs 5499$. Trek Fuel EXe 9.9 XX AXS T-Type 2024 is the most expensive one and costs 13999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2024 and its price was 5499$. Doing a quick comparison, we notice that Fuel EXe 5 price is 63.42% more expensive than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.02 kg (50.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Fuel EXe 5 it’s weighing 20.8 kg (45.86 lbs). At this weight, is considerably lighter than average. In conclusion, the average Trail e-bike weighs 10.67% more than Fuel EXe 5.

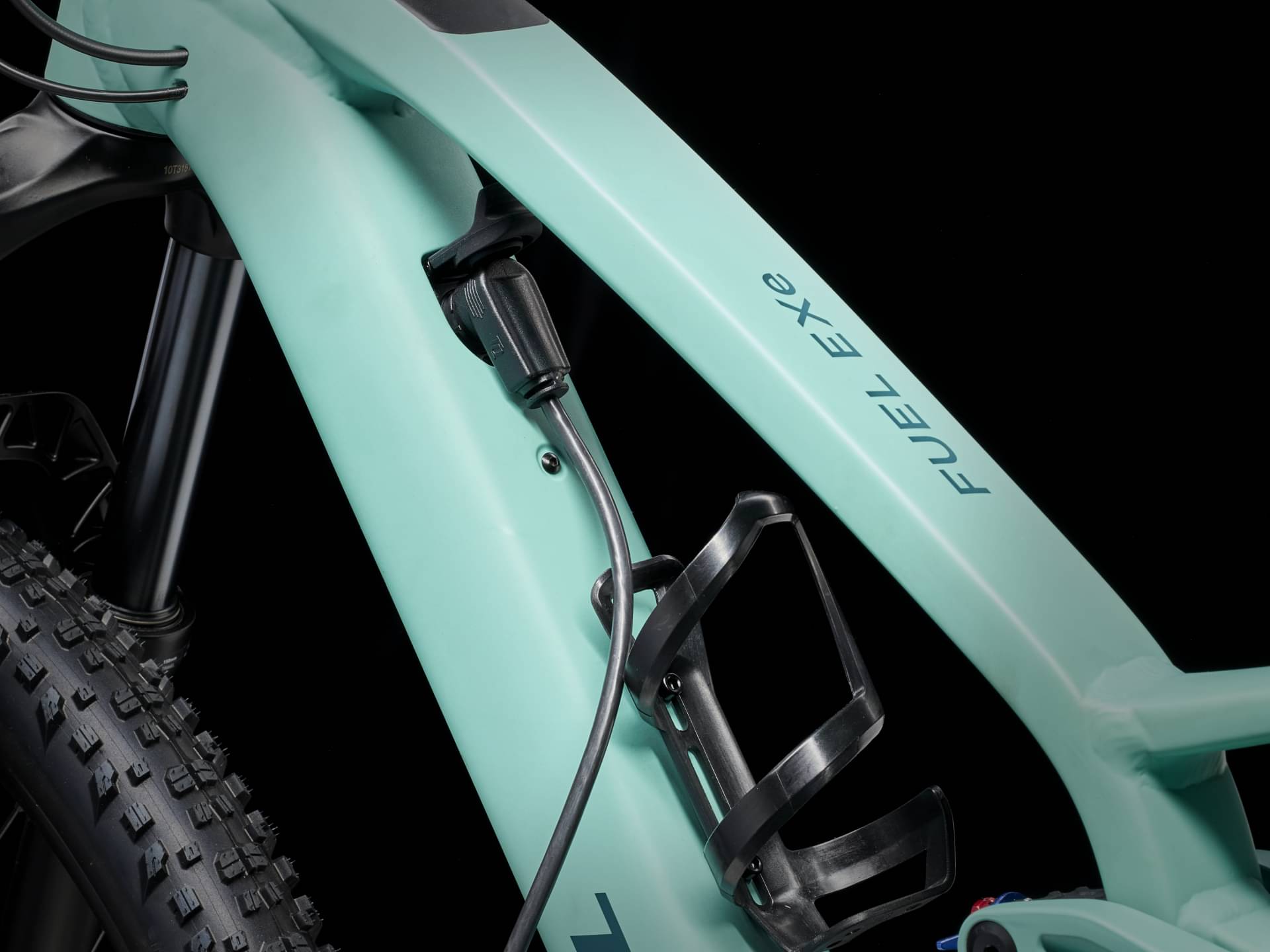

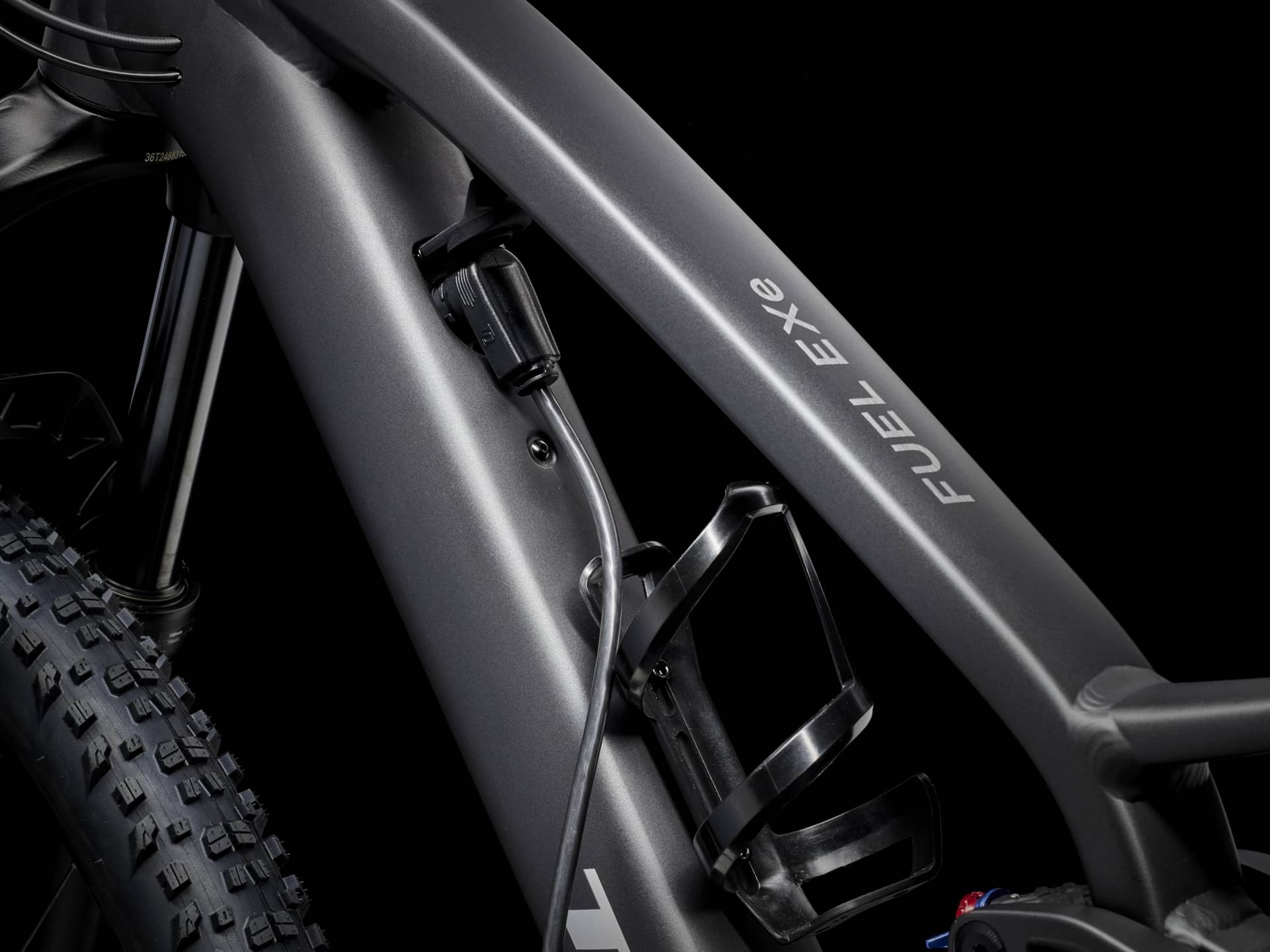

Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EXe 5 components
Fork
The Fuel EXe 5 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

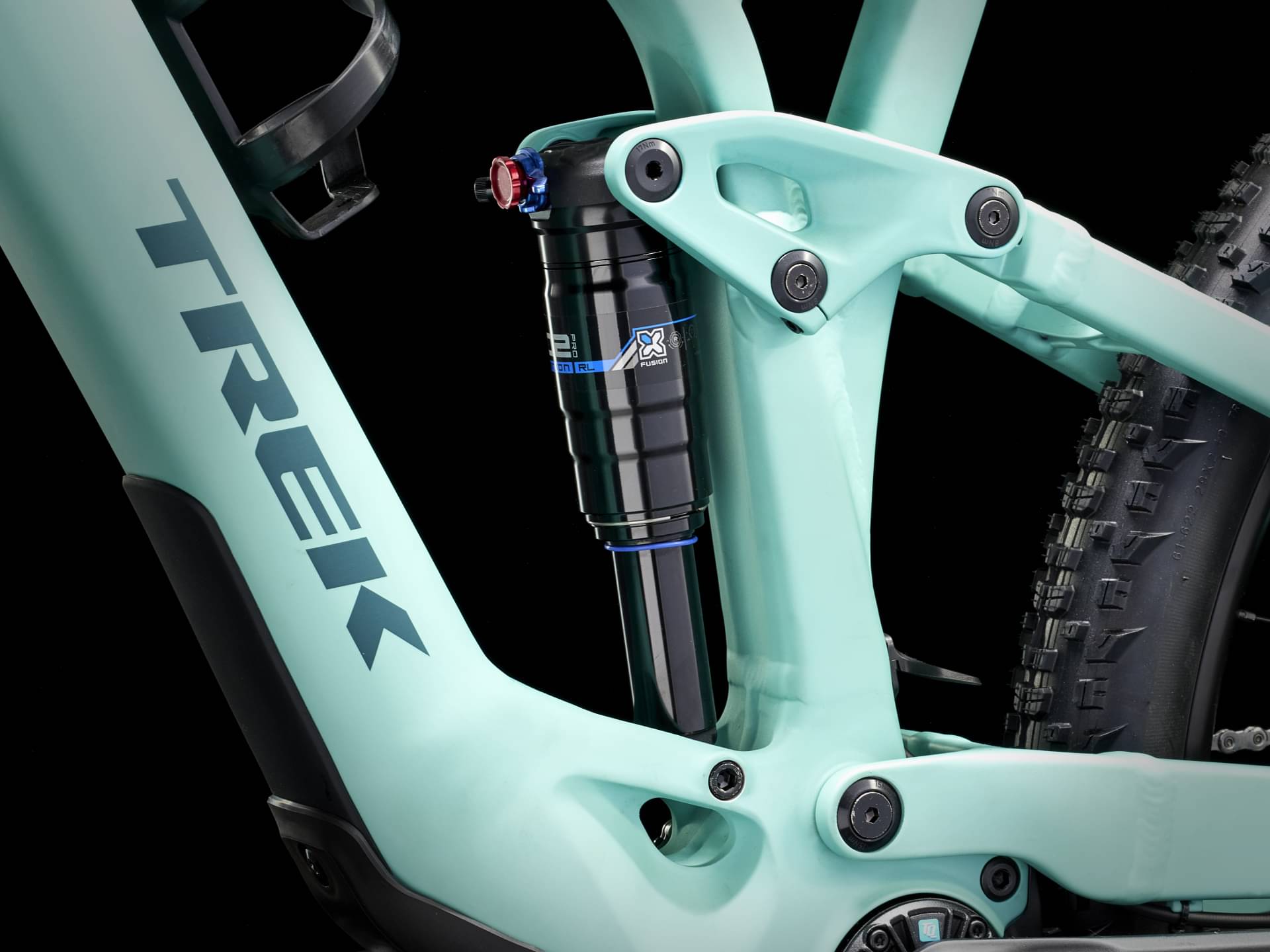

Rear Shock
As for the rear shock, this e-bike has the X-Fusion Pro 2 model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Fuel EXe 5 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.

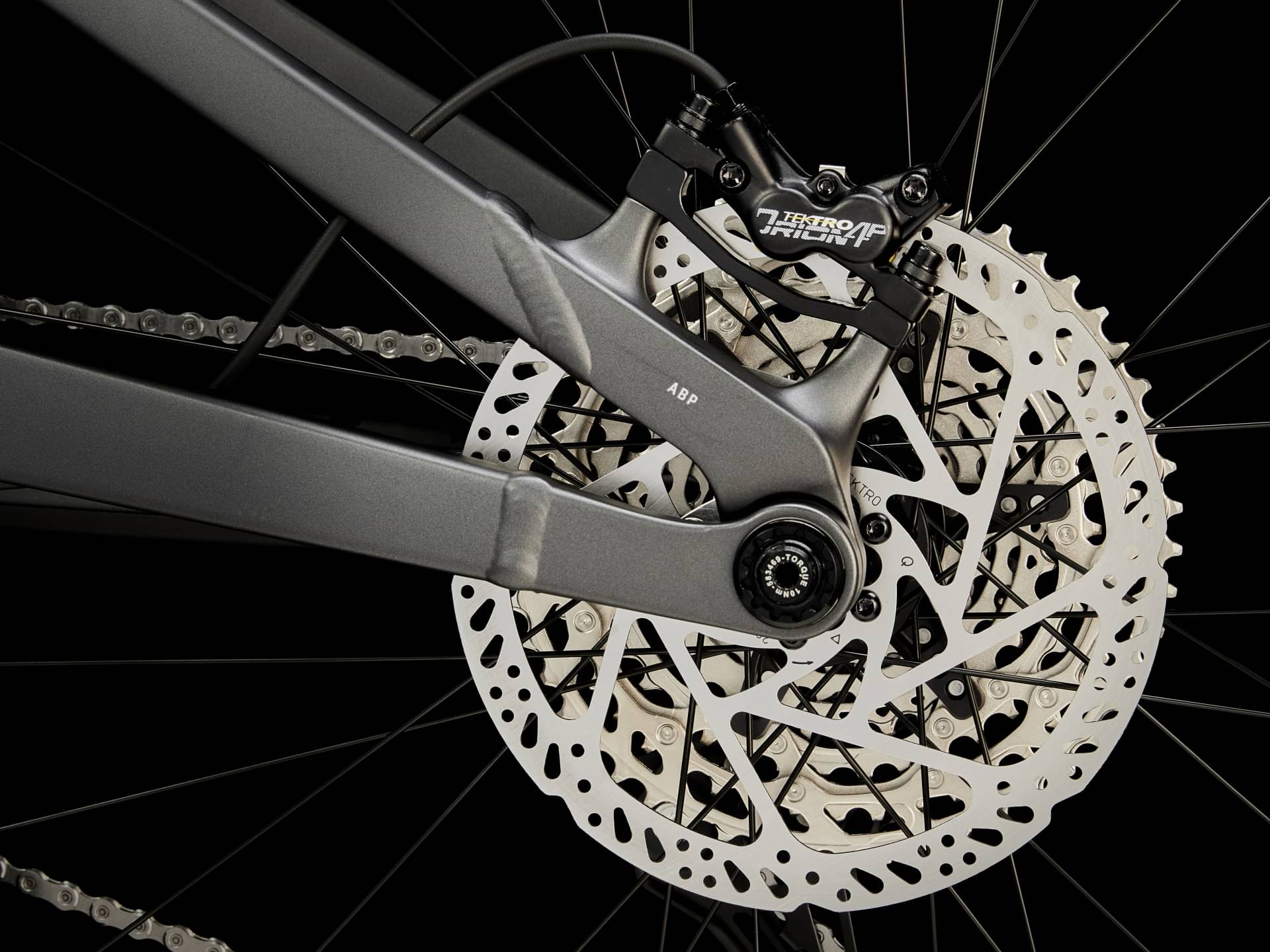

Brakes
For your safety, it is important to have quality breaks on your bike. Trek Fuel EXe 5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Fuel EXe 5. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
