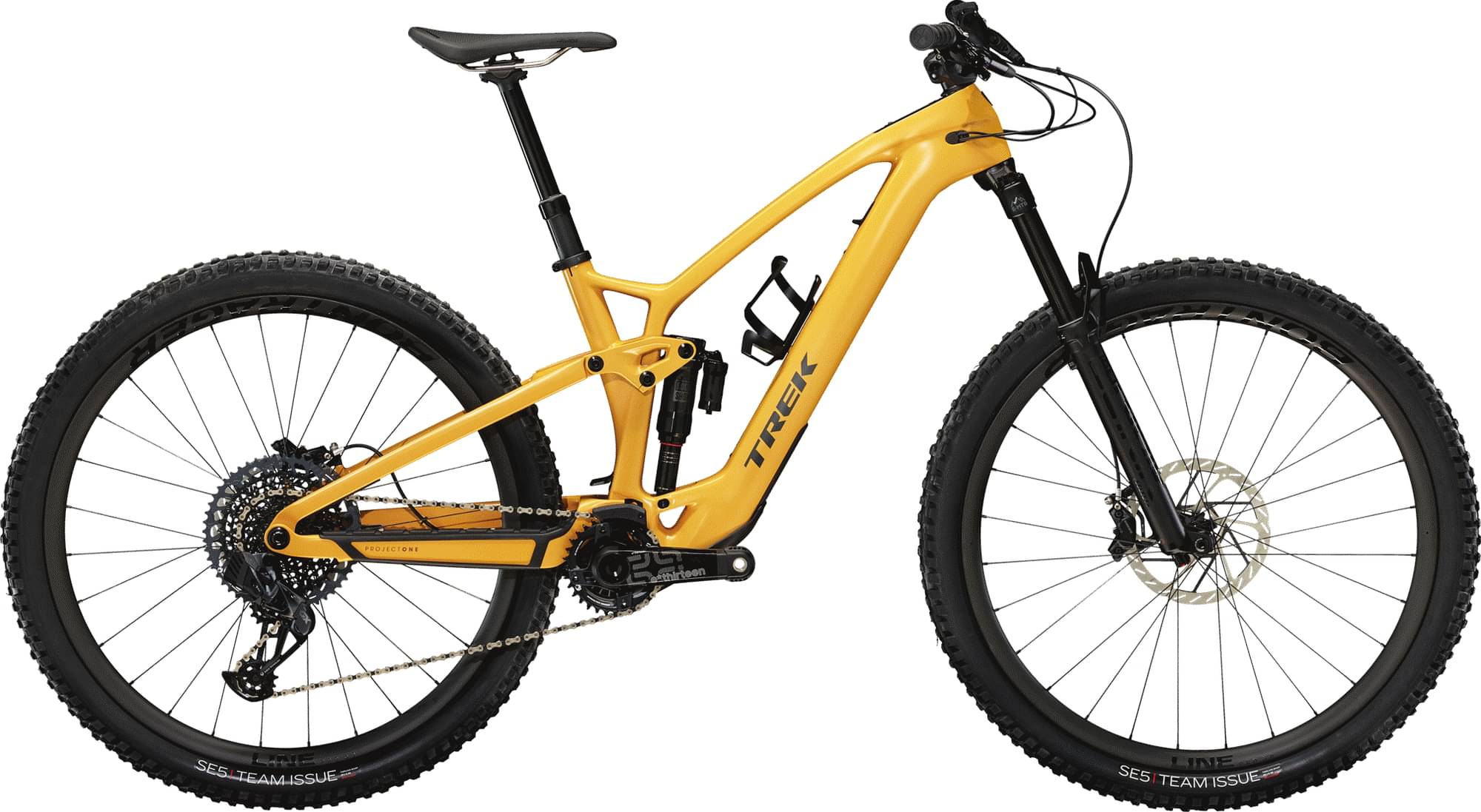

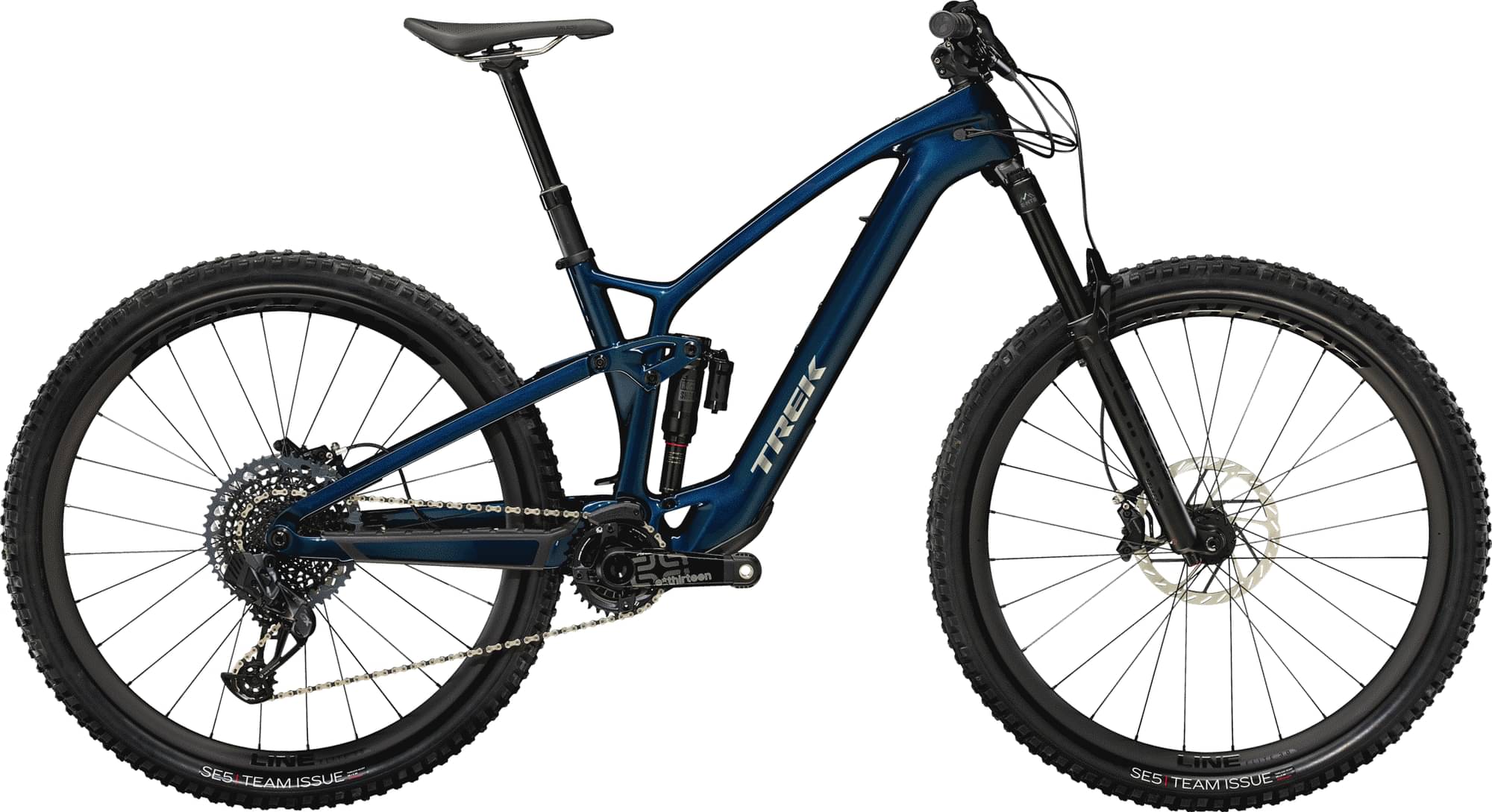

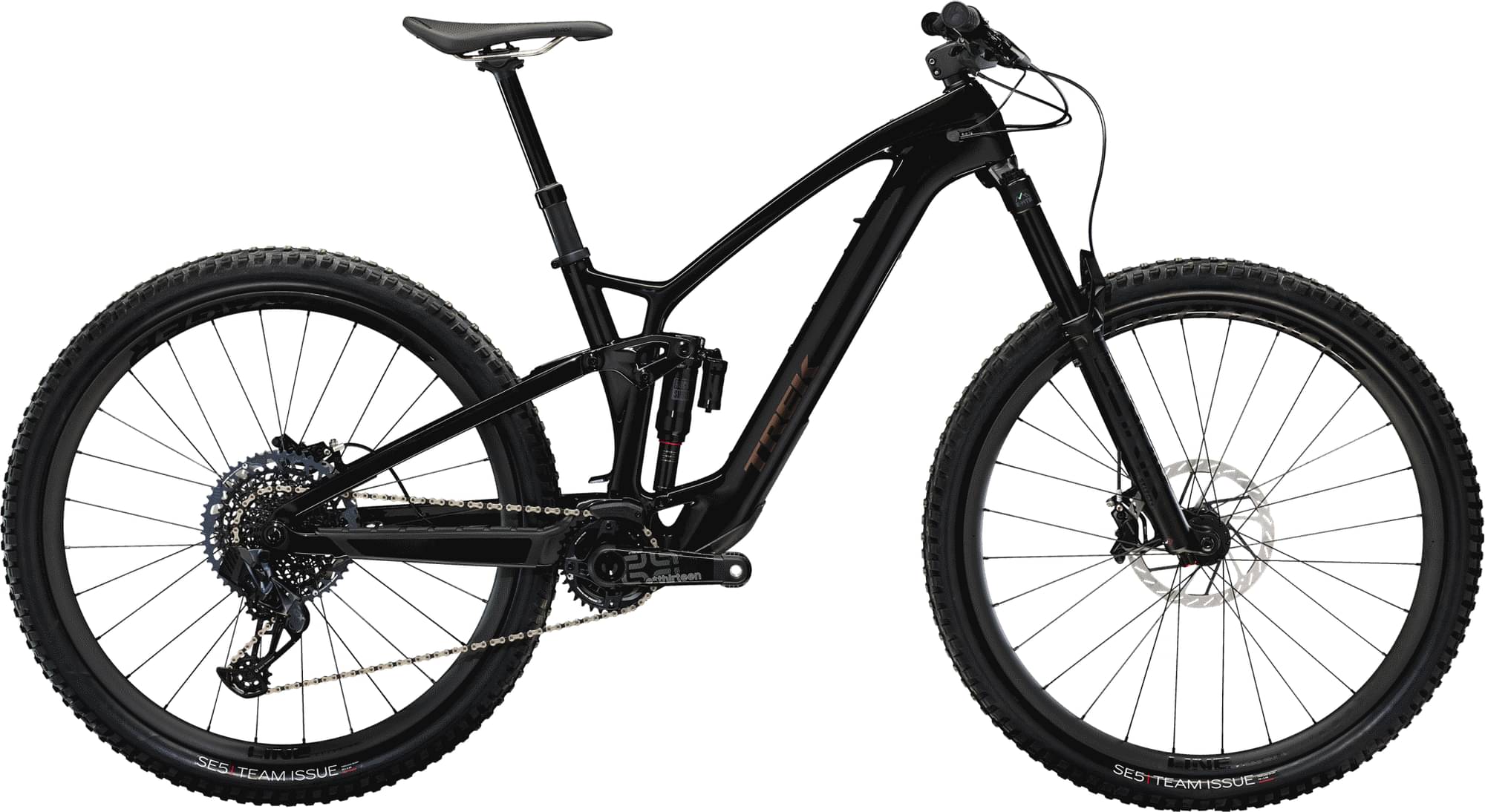

Trek Fuel EXe 9.8 GX AXS 2023
2023 E-bike
Estimate price |
9,499$
Weight | 18.17 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle AXS, e*thirteen -
Suspension Full -
Motor TQ 250W 50Nm mid-drive -
Battery TQ 360Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Rear Shock
RockShox Super Deluxe Select+ RT, 205mm x 60mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
E*thirteen E*spec Race carbon, 34T, 165mm length
Chain
SRAM GX Eagle, 12 speed
Wheels
Rims
Front: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Code R 4-piston hydraulic disc
Cockpit
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.36 mm | 1.39 mm | 1.28 mm | 1.3 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 613 mm | 617 mm | 622 mm | 626 mm | 622 mm | 626 mm | 631 mm | 635 mm |
| Reach | 431 mm | 425 mm | 456 mm | 450 mm | 486 mm | 480 mm | 511 mm | 505 mm |
| Top Tube Length | 569 mm | 570 mm | 596 mm | 597 mm | 626 mm | 627 mm | 653 mm | 655 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm |
| Wheelbase | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1243 mm | 1244 mm | 1273 mm | 1273 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 729 mm | 723 mm | 730 mm | 724 mm | 736 mm | 730 mm | 756 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EXe 9.8 GX AXS is part of the Trek E Fuel model. Trek released 15 e-bikes variations of this model so far. You can easily view all of the Trek E Fuel e-bikes models from 2023, here.
Model range prices
Trek Fuel EXe 9.5 2023 is the most economical model, with a starting price of 6499$. Trek Fuel EXe 9.9 XX1 AXS 2023 on the other hand costs 13999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 9499$. In conclusion, this e-bike price is 182.29% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.02 kg (50.75 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 18.17 kg (40.06 lbs), Trek e-bike is much lighter than average. In short, the average Trail e-bike weight is 26.69% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Fuel EXe 9.8 GX AXS components
Fork
The Fuel EXe 9.8 GX AXS comes factory-installed with the RockShox Lyrik Select+ fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Select+ RT, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Fuel EXe 9.8 GX AXS 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Trek Fuel EXe 9.8 GX AXS includes a dropper post. Therefore, climbing or descending will be a breeze.
