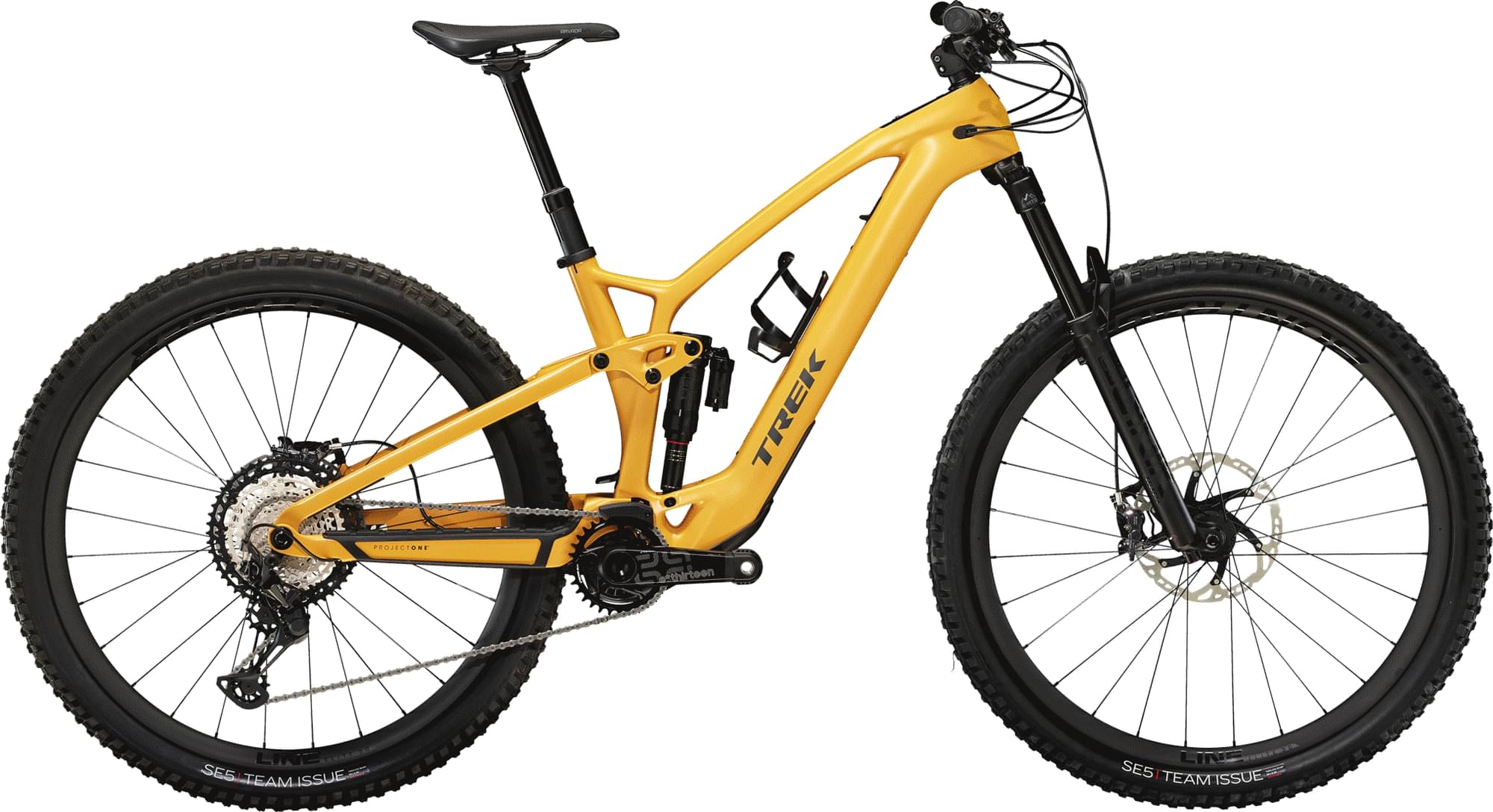

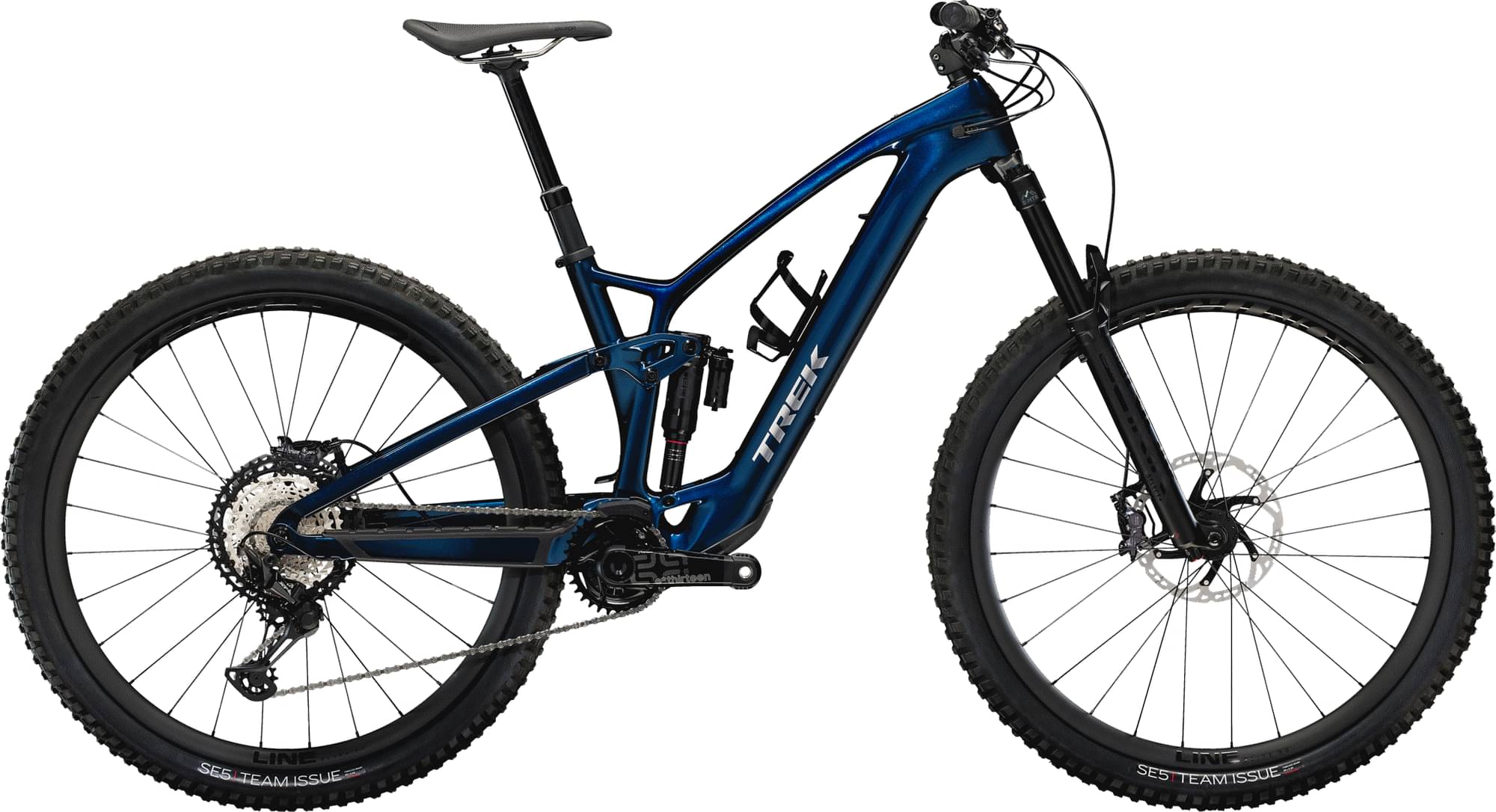

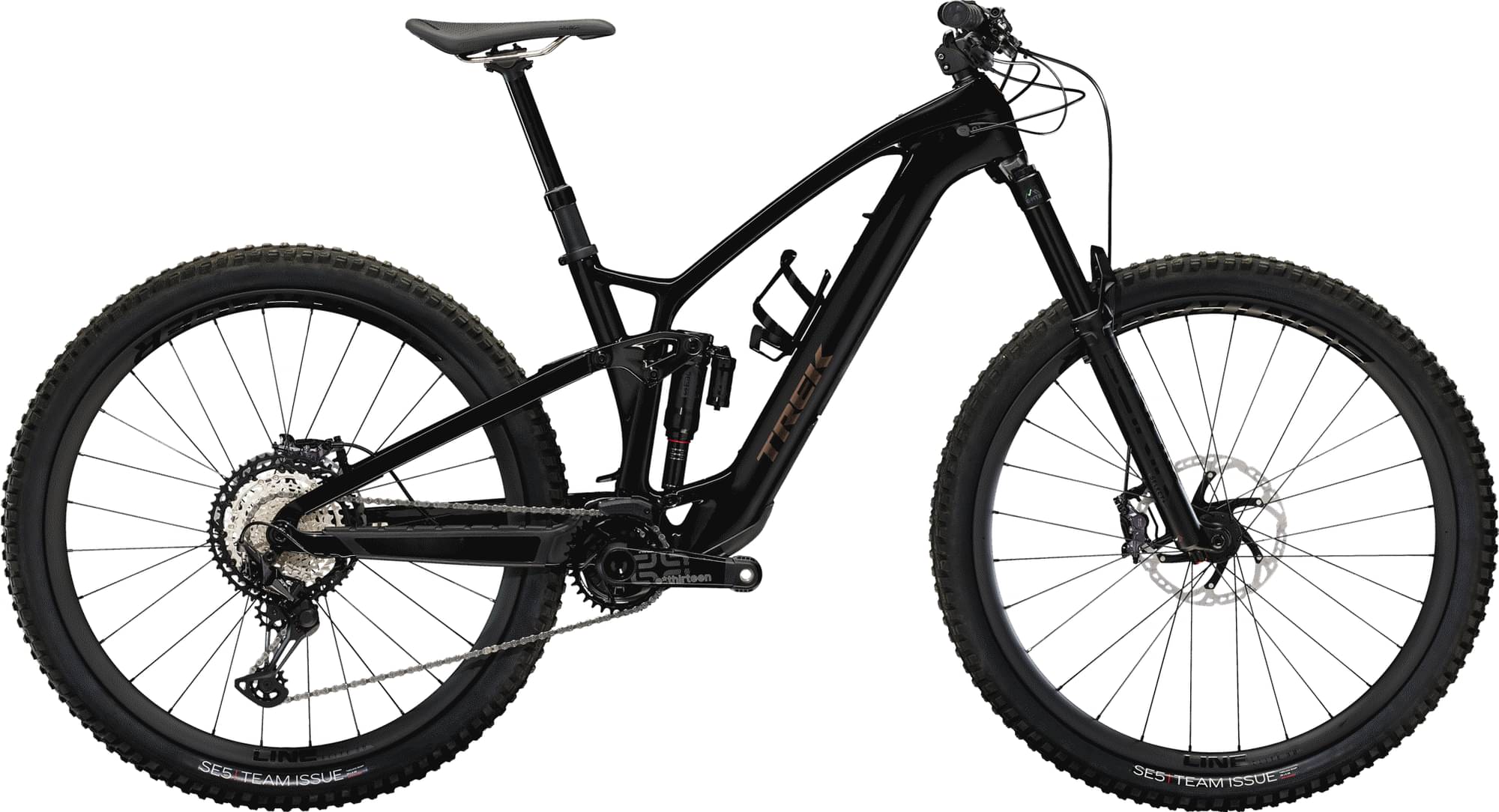

Trek Fuel EXe 9.8 XT 2023
2023 E-bike
Estimate price |
8,699$
Weight | 18.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select+
-
Groupset XT, e*thirteen -
Suspension Full -
Motor TQ 250W 50Nm mid-drive -
Battery TQ 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Rear Shock
RockShox Super Deluxe Select+ RT, 205mm x 60mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano XT M8100, 12 speed
Cassette
Shimano XT M8100, 10-51, 12 speed
Crank
E*thirteen E*spec Race carbon, 34T, 165mm length
Chain
Shimano Ultegra/XT M8100, 12 speed
Wheels
Rims
Front: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
Shimano XT M8120 4-piston hydraulic disc
Cockpit
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.36 mm | 1.39 mm | 1.28 mm | 1.3 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 613 mm | 617 mm | 622 mm | 626 mm | 622 mm | 626 mm | 631 mm | 635 mm |
| Reach | 431 mm | 425 mm | 456 mm | 450 mm | 486 mm | 480 mm | 511 mm | 505 mm |
| Top Tube Length | 569 mm | 570 mm | 596 mm | 597 mm | 626 mm | 627 mm | 653 mm | 655 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm |
| Wheelbase | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1243 mm | 1244 mm | 1273 mm | 1273 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 729 mm | 723 mm | 730 mm | 724 mm | 736 mm | 730 mm | 756 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EXe 9.8 XT is part of the Trek E Fuel model. 15 e-bikes variations carry this model name so far. Take a sneak peek at all Trek E Fuel e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Trek Fuel EXe 9.5 2023 has a starting price of 6499$. Trek Fuel EXe 9.9 XX1 AXS 2023 on the other hand is the most expensive at 13999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 8699$. Doing a quick comparison, we notice that Fuel EXe 9.8 XT price is 158.51% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.02 kg (50.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 18.1 kg (39.9 lbs), Trek e-bike is much lighter than average. In conclusion, the average Trail e-bike weighs 27.18% more than Fuel EXe 9.8 XT.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox Lyrik Select+ is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Fuel EXe 9.8 XT has a rear shock with a travel of 140mm. The model RockShox Super Deluxe Select+ RT is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Fuel EXe 9.8 XT are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fuel EXe 9.8 XT has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Fuel EXe 9.8 XT. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
