Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Suspension Fork
FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace MFM300 freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
VP BC73, 68mm, threaded
Chain
KMC Z7
Wheels
Front Hub
Formula FM21 alloy, 100x5mm QR
Rear Hub
Formula FM31 alloy, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes
14g stainless steel
Tires
Bontrager H2 Comp, wire bead, 30tpi, 700x35c
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Size: S, M, L, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: XL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.47 mm | 1.56 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 617 mm | 618 mm | 628 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 68 mm | 68 mm | 62 mm |
| Stack | 537 mm | 555 mm | 584 mm | 616 mm |
| Reach | 391 mm | 395 mm | 396 mm | 396 mm |
| Top Tube Length | 540 mm | 555 mm | 569 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 572 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1057 mm | 1058 mm | 1068 mm | 1068 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 702 mm | 736 mm | 797 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 198 cm |
About this model

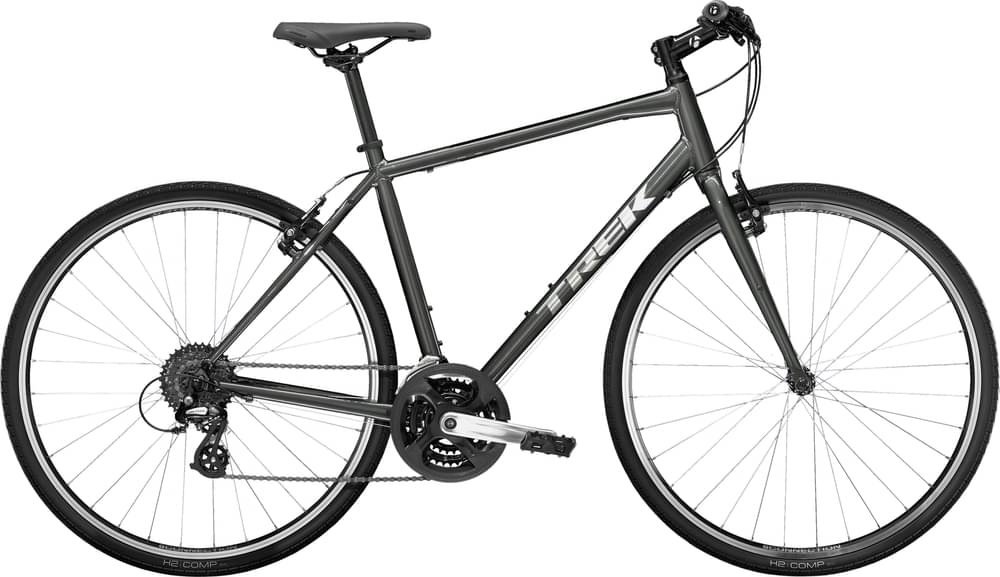

FX 1 is a Trek Fx model. 128 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Trek FX 1 2022 has a starting price of 539$. Trek FX Sport 6 2022 on the other hand is the most expensive at 3290$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 539$. Comparing the average cost of a Fitness bike to this one, you will see that FX 1 price is 21.71% lower.
Average weight for Fitness bikes
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
FX 1 weighs 12.57 kg (27.71 lbs) and is considerably heavier than the average. In short, the average Fitness bike weight is 11.83% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The FX 1 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FX 1 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 155 cm – 198 cm (5.09 ft – 6.5 ft). In short, you can easily find one that suits you.
