Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

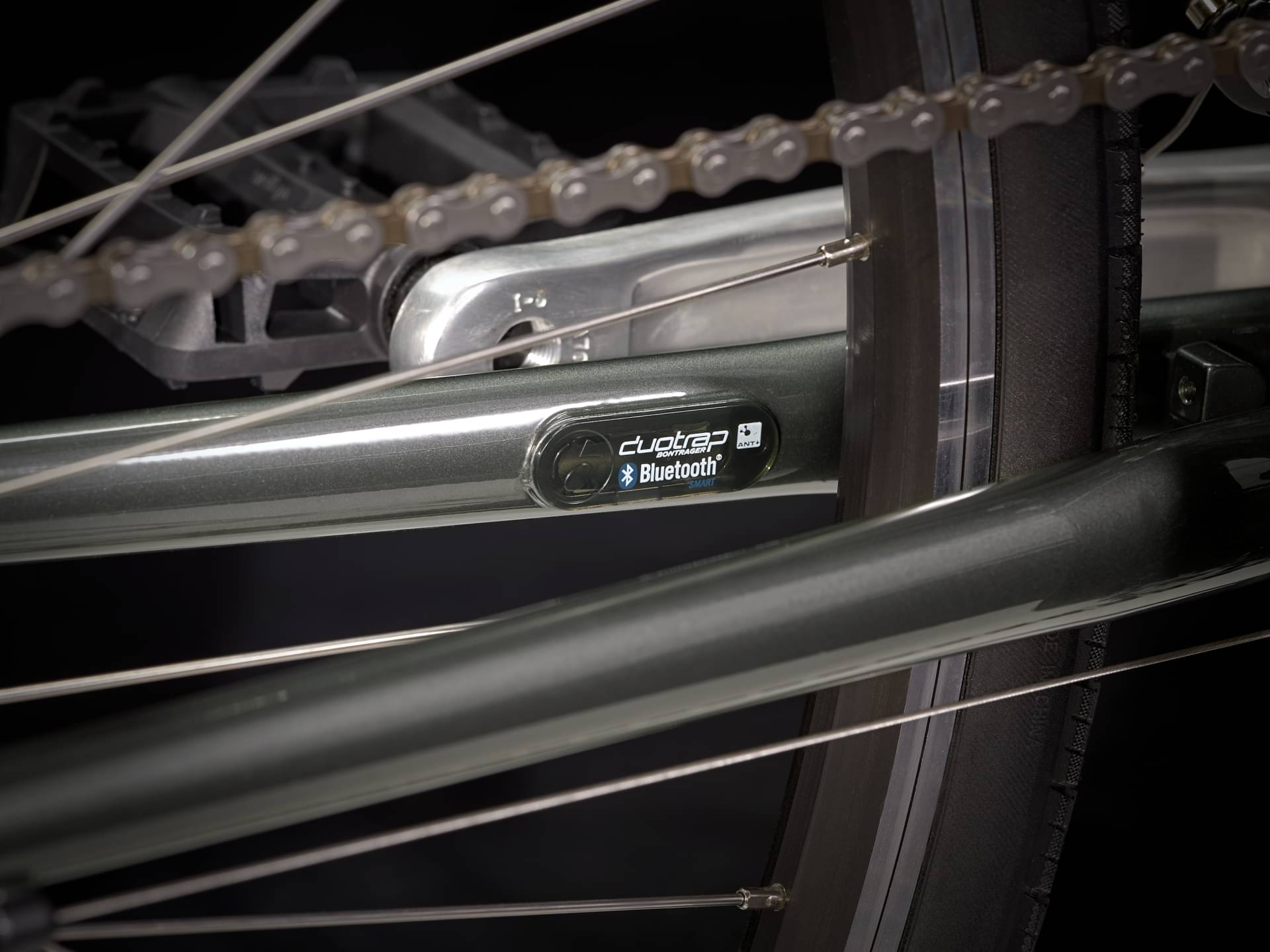

Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Suspension Fork
FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR

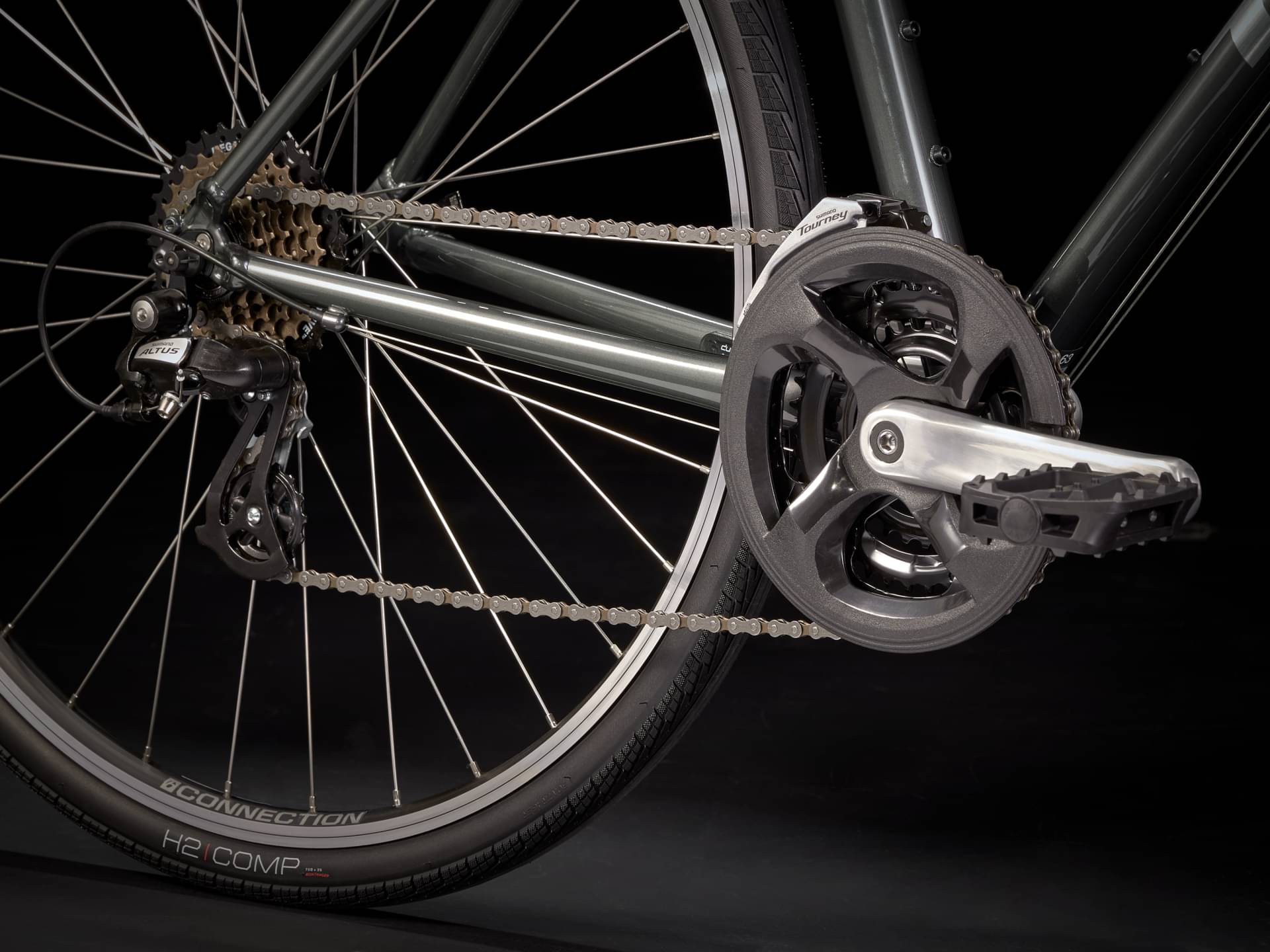

Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 7 speed
Cassette
14-34, 7 speed freewheel
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z7
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula FM21 alloy, 100x5mm QR
Rear Hub
Formula FM31 alloy, 135x5mm QR
Rims

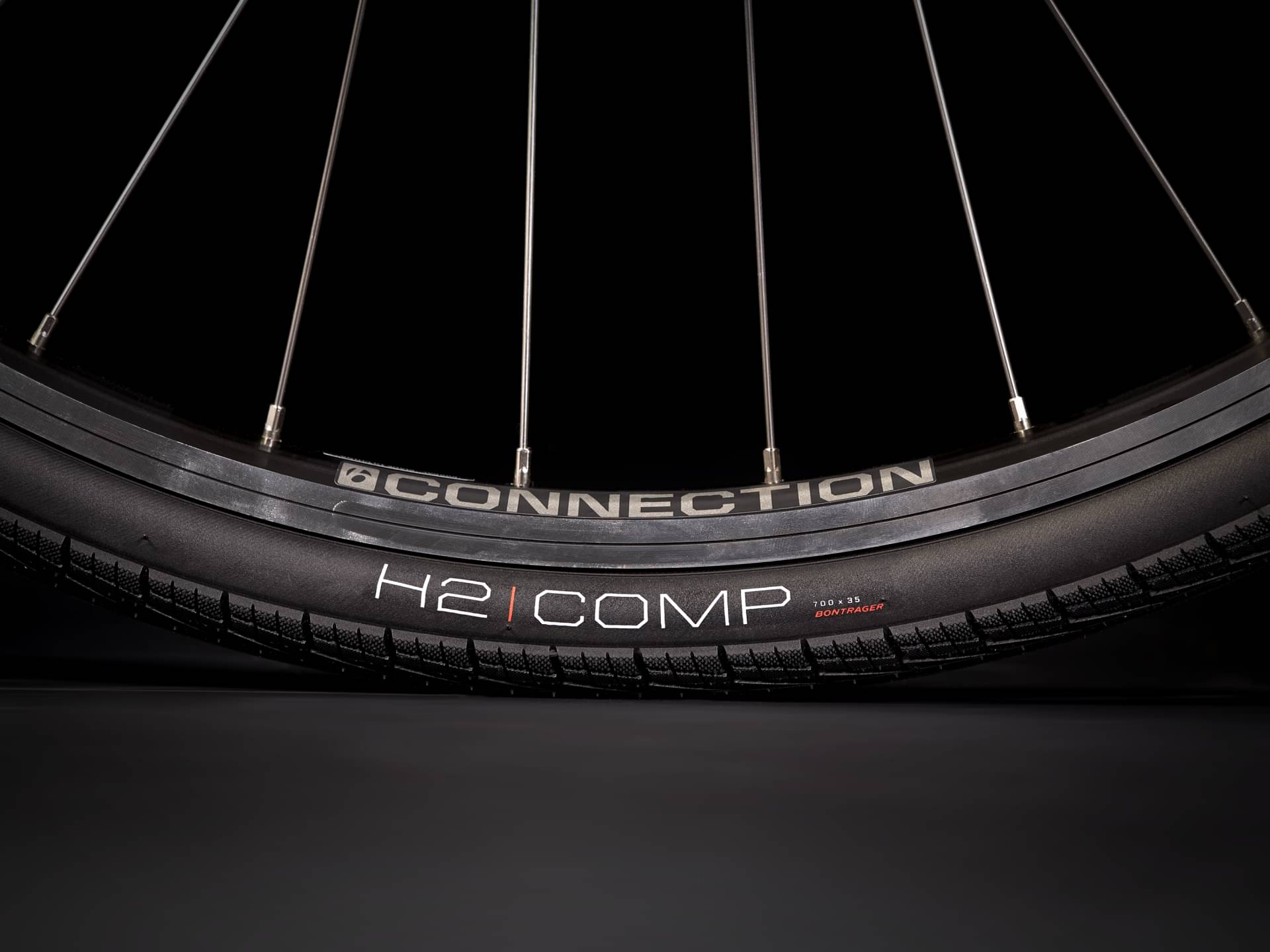

Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Brakes

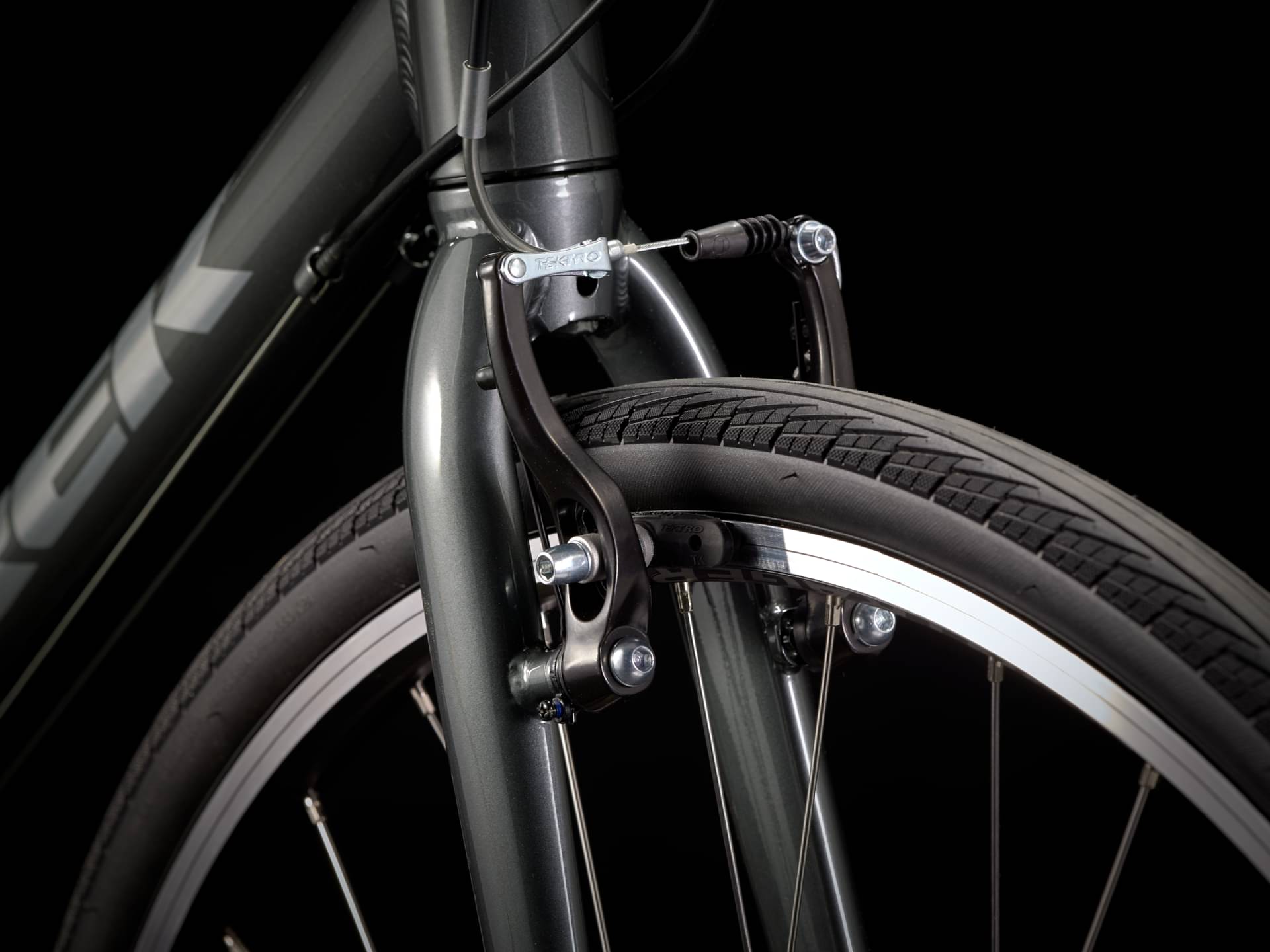

Brakes
Tektro alloy linear-pull

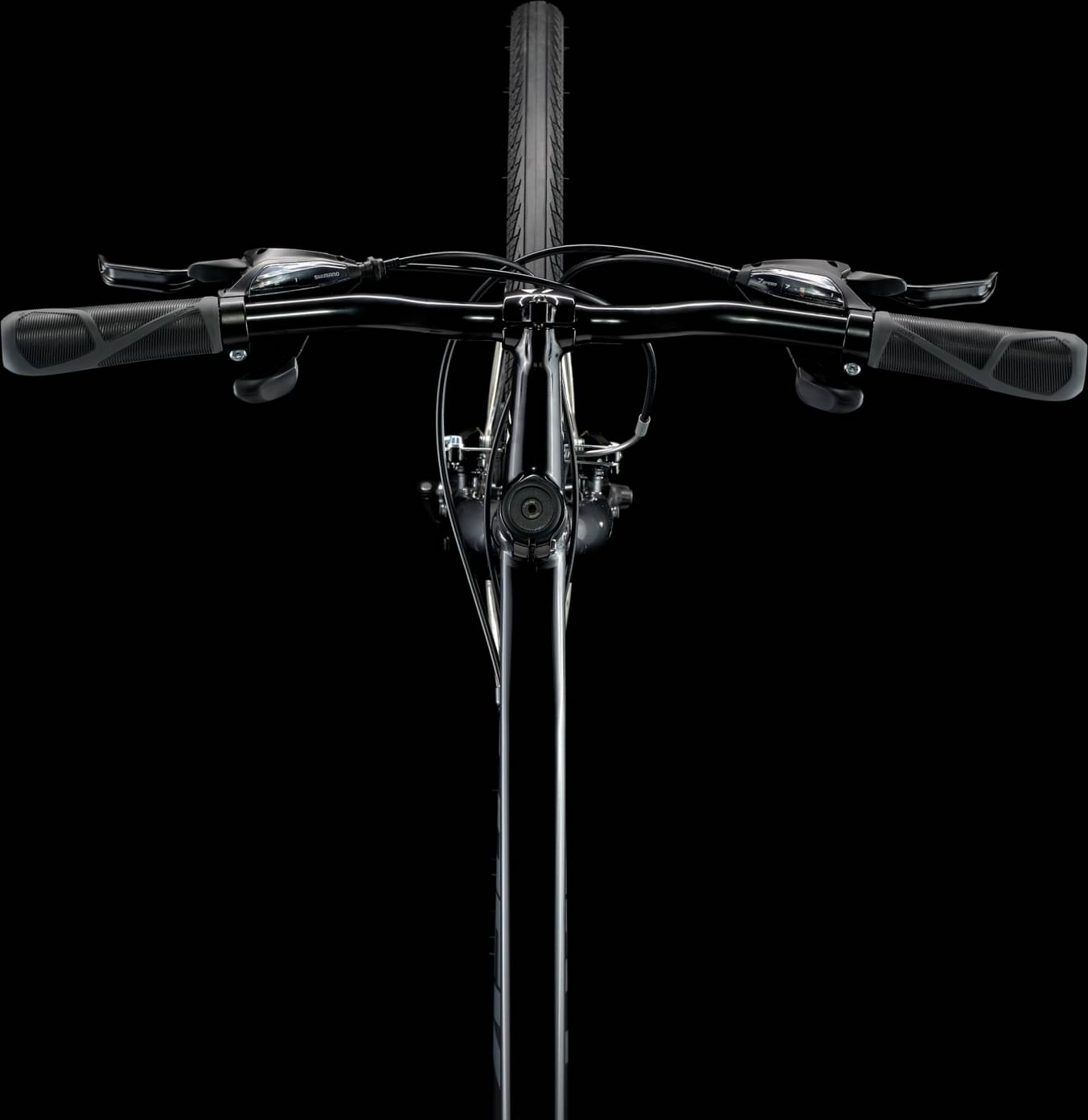

Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Size: S, M, L, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: XL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width

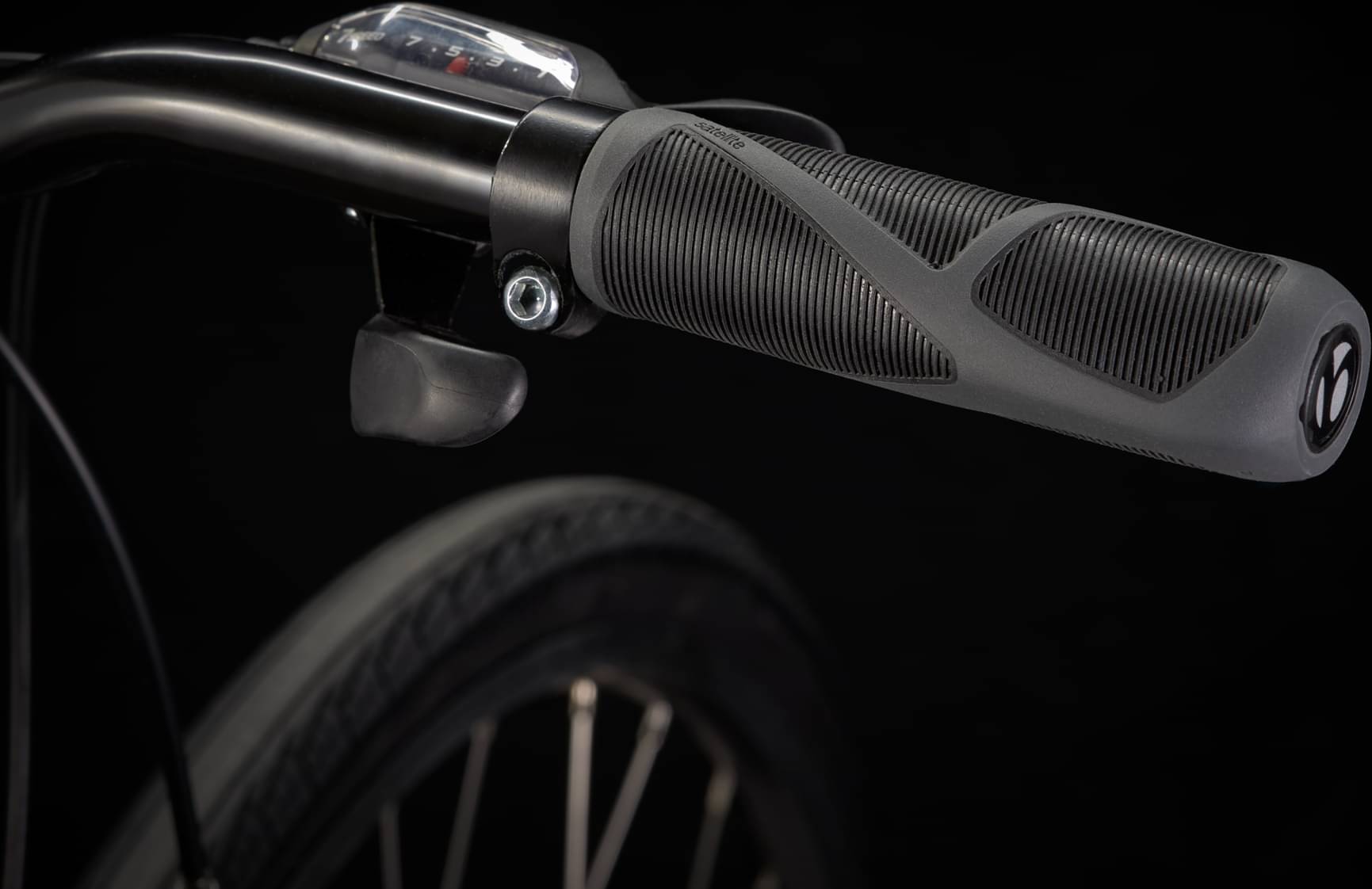

Grips
Bontrager Satellite
Headset
1 1/8'' steel threadless
Seat

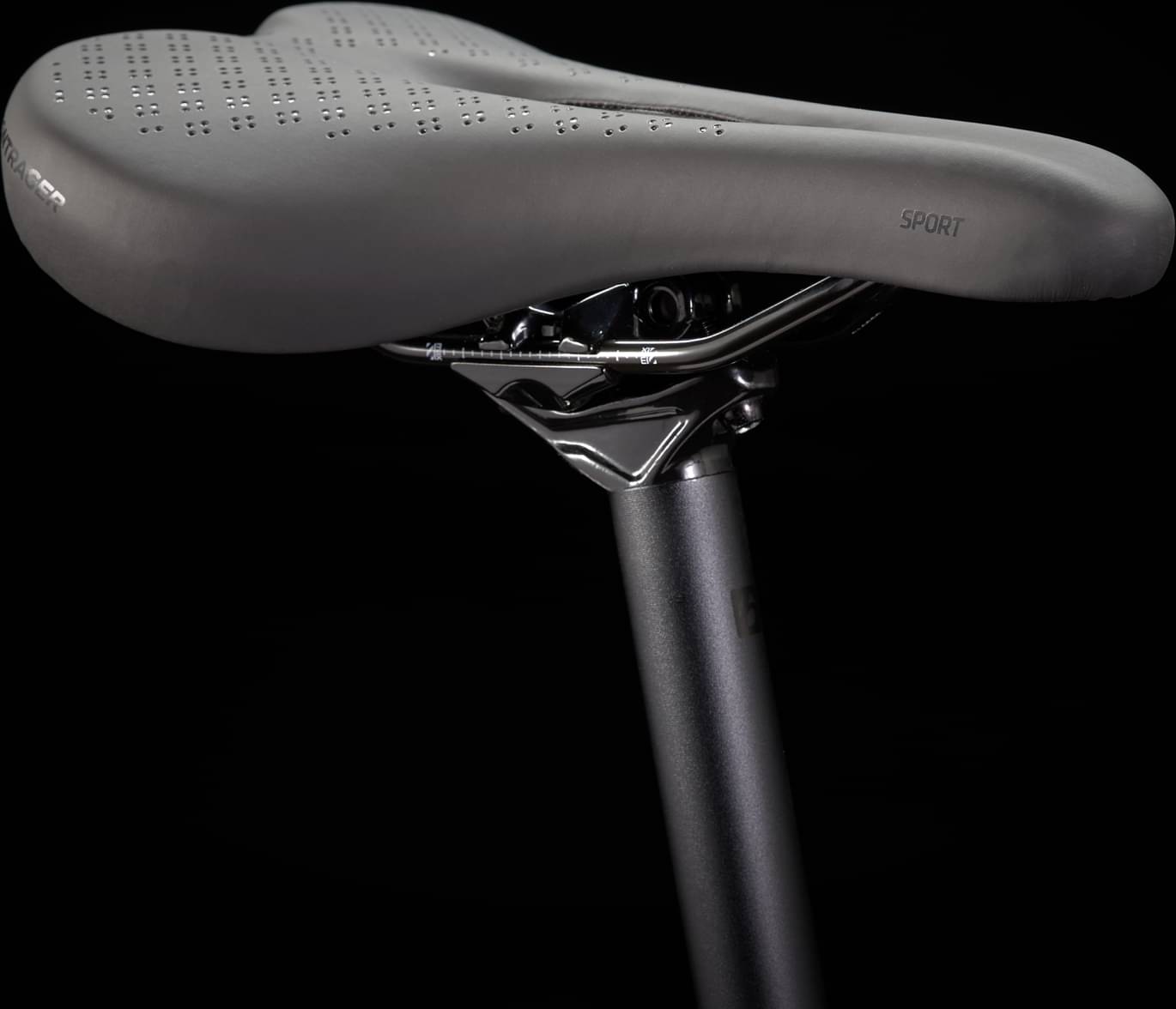

Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.47 mm | 1.56 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 617 mm | 618 mm | 628 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 68 mm | 68 mm | 62 mm |
| Stack | 537 mm | 555 mm | 584 mm | 616 mm |
| Reach | 391 mm | 395 mm | 396 mm | 396 mm |
| Top Tube Length | 540 mm | 555 mm | 569 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 572 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1057 mm | 1058 mm | 1068 mm | 1068 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 702 mm | 736 mm | 797 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model

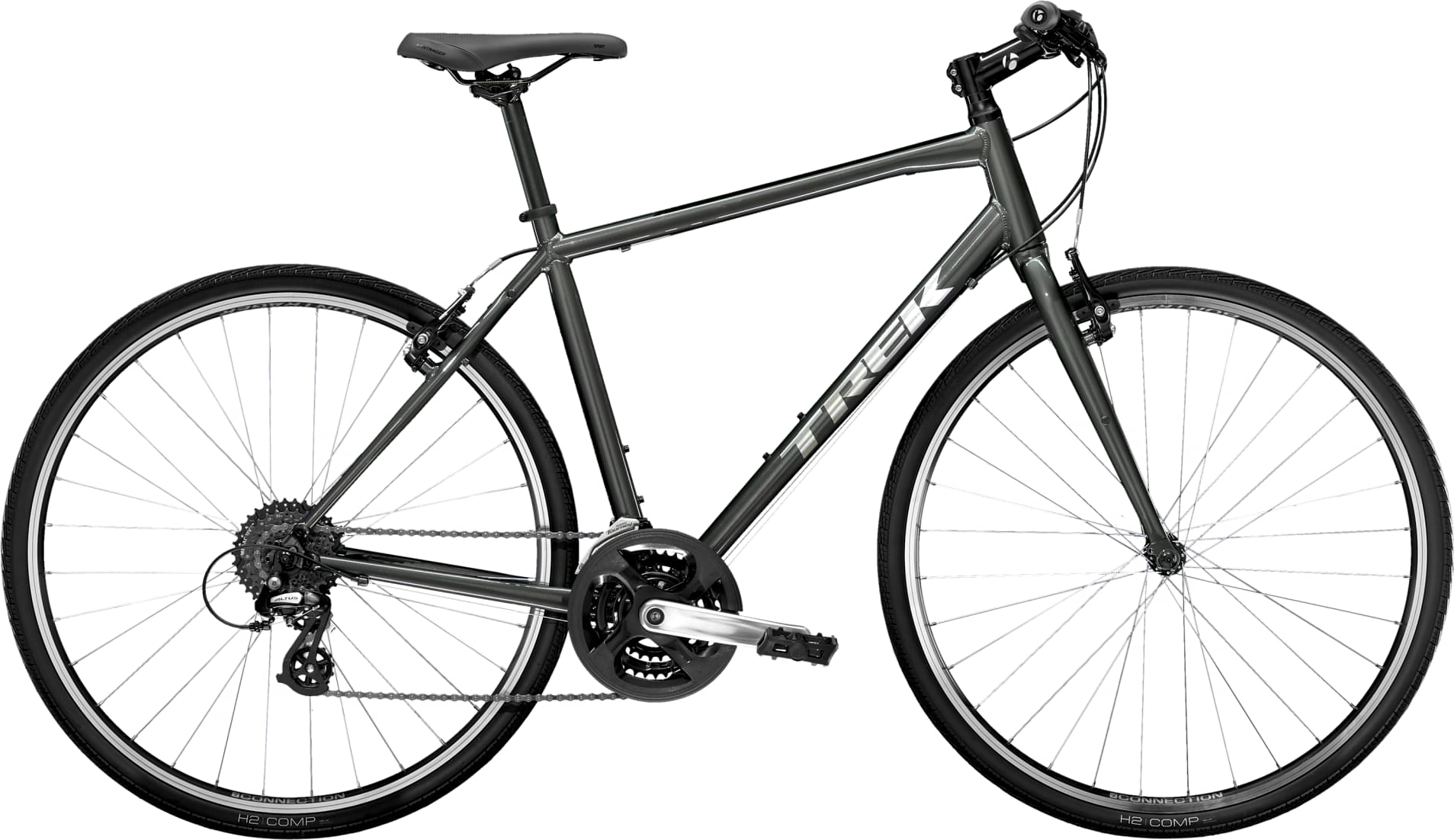

FX 1 is part of the Trek Fx model. Trek launched 128 bikes of this model so far. Take a sneak peek at all Trek Fx bikes models from 2024, by clicking here.
Model range prices
Trek FX 1 Stagger 2024 is the most affordable bike of this model and has a price of 499$. On the other hand, Trek FX Sport 6 2024, is the most expensive and costs 2799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek FX 1 price was 499$. Comparing the average cost of a Fitness bike to this one, you will see that FX 1 price is 31.46% lower.
Fitness bikes average weight
If we make a quick analysis of the average weight of a Fitness bike, we get 11.47 kg (25.29 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.57 kg (27.71 lbs), Trek bike is a bit heavier than average. In short, the average Fitness bike weight is 9.59% lower than this one.
Overview of components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on FX 1 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The FX 1 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
FX 1 comes in 4 sizes, that range from 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
