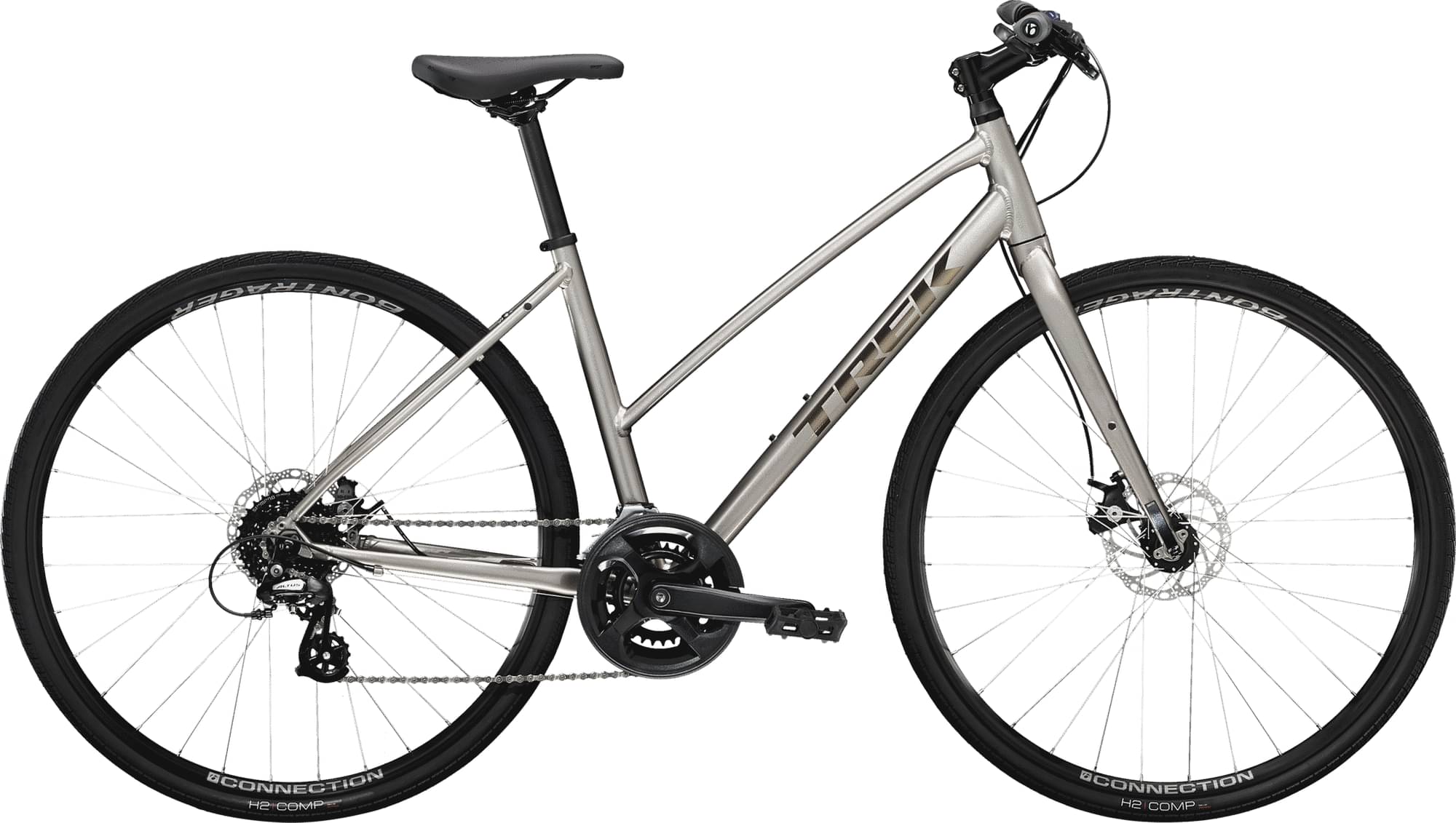

Trek FX 1 Disc Stagger 2023
2023 Urban
Estimate price |
599$
Weight | 12.58 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Suspension Fork
FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 8 speed
Cassette
Shimano HG31, CS-HG31, 11-32, 8 speed
Crank
Forged alloy, 46/30, chainguard, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z8.3
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Brakes
Brakes
Tektro MD-U310 mechanical disc, flat mount, 160mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Grips
Bontrager Satellite
Headset
1 1/8'' steel threadless
Seat
Saddle
Bontrager Sport Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm | 625 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 75 mm | 75 mm | 68 mm |
| Stack | 552 mm | 570 mm | 593 mm |
| Reach | 382 mm | 387 mm | 389 mm |
| Top Tube Length | 535 mm | 551 mm | 566 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1053 mm | 1065 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 709 mm | 755 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
FX 1 Disc Stagger is part of the Trek Fx model. Trek released 128 bikes variations of this model so far. You can easily view all of the Trek Fx bikes models from 2023, here.
Model range prices
The most economical model, the Trek FX 1 Stagger 2023 has a starting price of 599$. Trek FX Sport 6 2023 on the other hand is the most expensive at 2799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2023, its price was 599$. Comparing the average cost of a Fitness bike to this one, you will see that FX 1 Disc Stagger price is 9.52% lower.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, FX 1 Disc Stagger has a weight of 12.58 kg (27.73 lbs). In short, the average Fitness bike weight is 11.92% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on FX 1 Disc Stagger are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek FX 1 Disc Stagger has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
