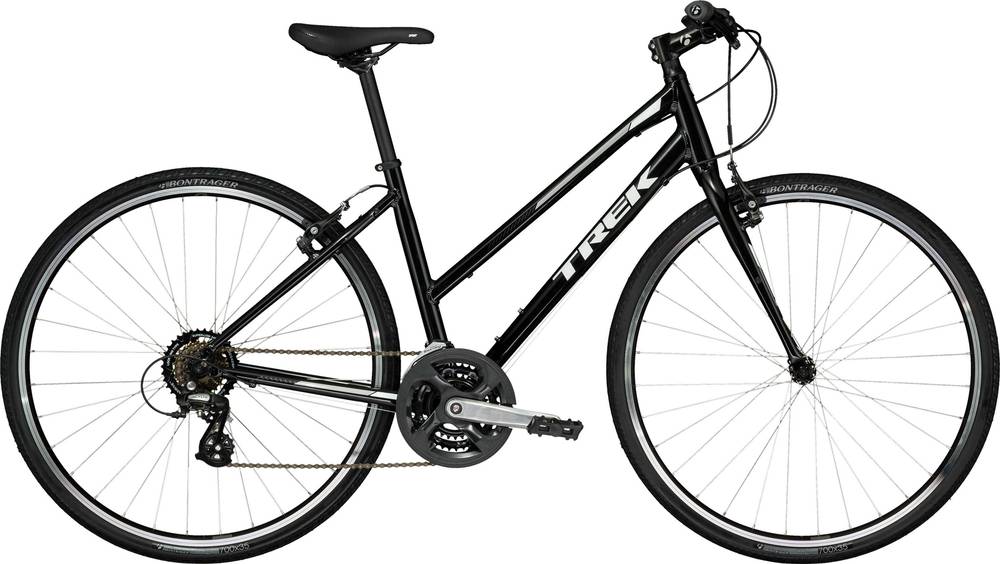

Trek FX 1 Stagger 2018
2018 Urban
Estimate price |
409$
Weight | 12.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FX Alpha Gold Aluminum, Stagger type, DuoTrap S compatible, rack & fender mounts
Suspension Fork
High-tensile steel w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY51
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28 w/chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC Z51
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula FM21 alloy
Rear Hub
Formula FM31 alloy
Rims
Bontrager Connection, alloy, 32h
Tires
Bontrager H2, 700x35c
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Bontrager alloy, 25.4mm, 15 degree
Handlebar
Bontrager Riser, 25.4mm, 30mm rise
Grips
Bontrager Satellite, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17.5" |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm |
| Bottom Bracket Height | 285 mm | 285 mm |
| Front Center | 615 mm | 619 mm |
| Rake | 51 mm | 49 mm |
| Trail | 70 mm | 70 mm |
| Stack | 553 mm | 572 mm |
| Reach | 382 mm | 381 mm |
| Top Tube Length | 531 mm | 546 mm |
| Seat Tube Angle | 75 ° | 74 ° |
| Seat Tube Length | 381 mm | 445 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm |
| Wheelbase | 1051 mm | 1055 mm |
| Bottom Bracket Drop | 62 mm | 62 mm |
| Standover Height | 695 mm | 628 mm |
| Wheels | 700 | 700 |
About this model
FX 1 Stagger is a Trek Fx model. Trek released 128 bikes variations of this model so far. You can easily view all of the Trek Fx bikes models from 2018, here.
Model range prices
The most economical model, the Trek FX 2018 has a starting price of 359$. Trek FX S 6 2018 on the other hand is the most expensive at 2099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 409$. Comparing this to the average Fitness bike price, we see that the price is 60.39% lower.
Average weight for Fitness bikes
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, FX 1 Stagger has a weight of 12.34 kg (27.21 lbs). In conclusion, the average Fitness bike weighs 9.79% less than FX 1 Stagger.
FX 1 Stagger components
Fork material
FX 1 Stagger has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the FX 1 Stagger model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek FX 1 Stagger has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
