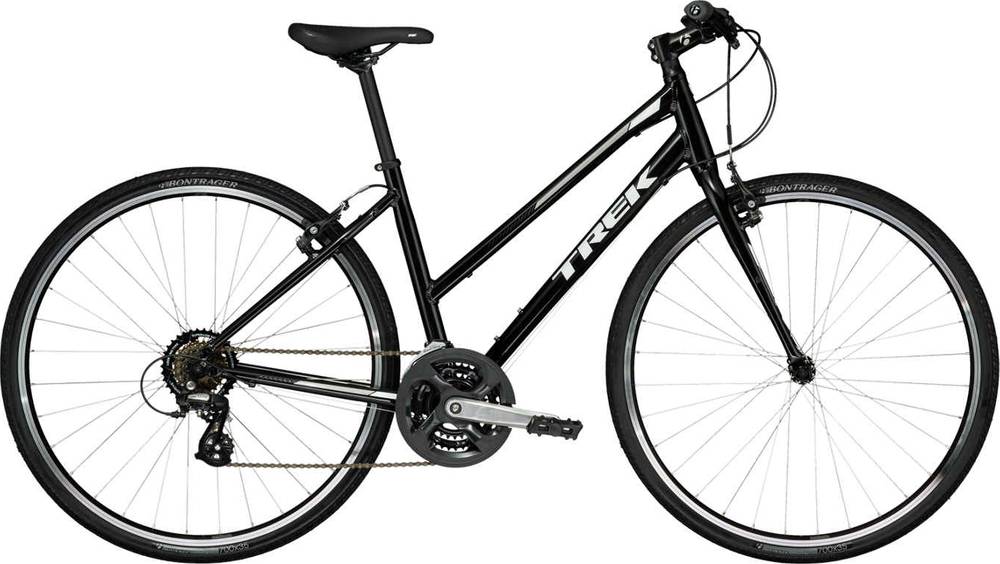

Trek FX 1 Stagger 2019
2019 Urban
Estimate price |
439$
Weight | 12.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FX Alpha Gold Aluminum, Stagger type, DuoTrap S compatible, rack & fender mounts
Suspension Fork
High-tensile steel w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY51
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28 w/chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC Z51
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula FM21 alloy
Rear Hub
Formula FM31 alloy
Rims
Bontrager Connection, alloy, 32h
Tires
Bontrager H2, 700x35c
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Bontrager alloy, 25.4mm, 15 degree
Handlebar
Bontrager Riser, 25.4mm, 30mm rise
Grips
Bontrager Satellite, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.5 mm |
| Bottom Bracket Height | 285 mm | 285 mm |
| Front Center | 619 mm | 620 mm |
| Rake | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm |
| Stack | 553 mm | 572 mm |
| Reach | 387 mm | 381 mm |
| Top Tube Length | 541 mm | 546 mm |
| Seat Tube Angle | 74.5 ° | 74 ° |
| Seat Tube Length | 381 mm | 445 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm |
| Wheelbase | 1054 mm | 1055 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 625 mm | 630 mm |
| Wheels | 700 | 700 |
Model Overview
FX 1 Stagger is part of the Trek Fx model. There are 128 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Trek FX 1 Stagger 2019 is the most economical model, with a starting price of 439$. Trek FX Sport 6 2019 on the other hand costs 2099$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2019, its price was 439$. If we compare this with the average Fitness bike cost we notice that the price is 49.43% smaller.
Average weight for Fitness bikes
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, FX 1 Stagger has a weight of 12.33 kg (27.18 lbs). In other words, this model is 9.7% heavier than the average Fitness bike.
FX 1 Stagger components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
When leaving the production line, the FX 1 Stagger model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
