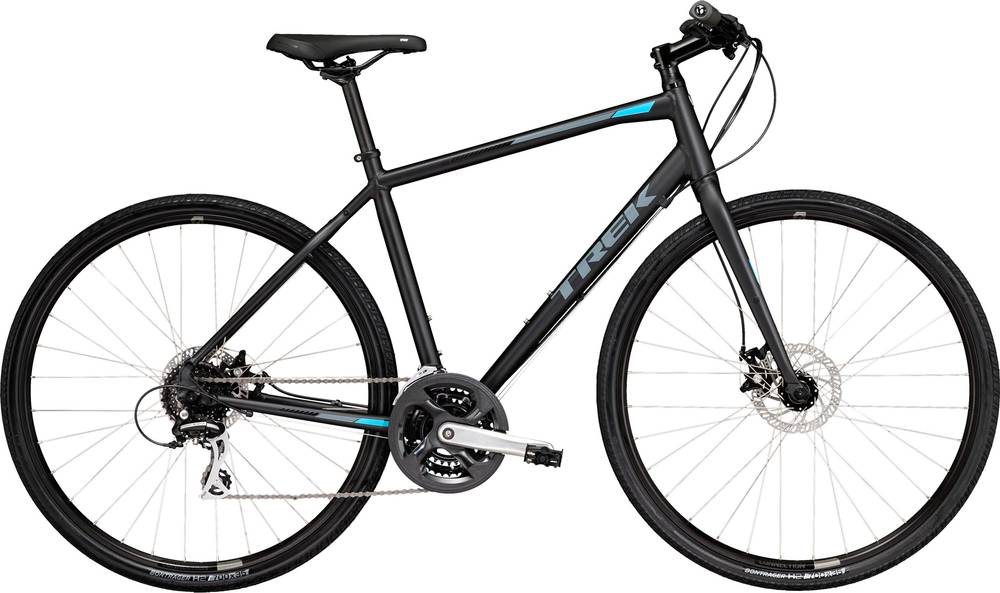

Trek FX 2 Disc 2018
2018 Urban
Estimate price |
549$
Weight | 12.01 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Acera, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FX Alpha Gold Aluminum, DuoTrap S compatible, post mount disc, rack & fender mounts
Suspension Fork
FX alloy disc w/tapered wall thickness, straight blades
Drivetrain
Rear Derailleur
Shimano Acera M360
Front Derailleur
Shimano Tourney TY71
Shift Levers
Shimano EF500, 8 speed
Cassette
Shimano HG31, 11-32, 8 speed
Crank
Forged alloy, 48/38/28 w/chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC Z7
Pedals
Resin body, alloy cage
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager Connection alloy, 32h
Tires
Bontrager H2, 700x35c
Brakes
Brakes
Tektro M280 mechanical disc
Cockpit
Stem
Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17.5" | 20" | 22.5" | 25" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.5 mm | 1.56 mm | 1.66 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 619 mm | 619 mm | 620 mm | 626 mm | 627 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70 mm | 70 mm | 70 mm | 62 mm | 62 mm |
| Stack | 539 mm | 553 mm | 587 mm | 619 mm | 648 mm |
| Reach | 392 mm | 387 mm | 392 mm | 398 mm | 390 mm |
| Top Tube Length | 542 mm | 546 mm | 566 mm | 588 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 381 mm | 444 mm | 508 mm | 571 mm | 635 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1055 mm | 1055 mm | 1056 mm | 1062 mm | 1063 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 691 mm | 733 mm | 781 mm | 829 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
FX 2 Disc completes the Trek Fx model. 128 bikes variations carry this model name so far. Take a sneak peek at all Trek Fx bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Trek FX 2018 has a starting price of 359$. Trek FX S 6 2018 on the other hand is the most expensive at 2099$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2018, its price was 549$. Comparing the average cost of a Fitness bike to this one, you will see that FX 2 Disc price is 19.49% lower.
Fitness bikes average weight
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek FX 2 Disc it’s weighing 12.01 kg (26.48 lbs). At this weight, is a bit heavier than average. In short, the average Fitness bike weight is 6.85% lower than this one.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on FX 2 Disc are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
