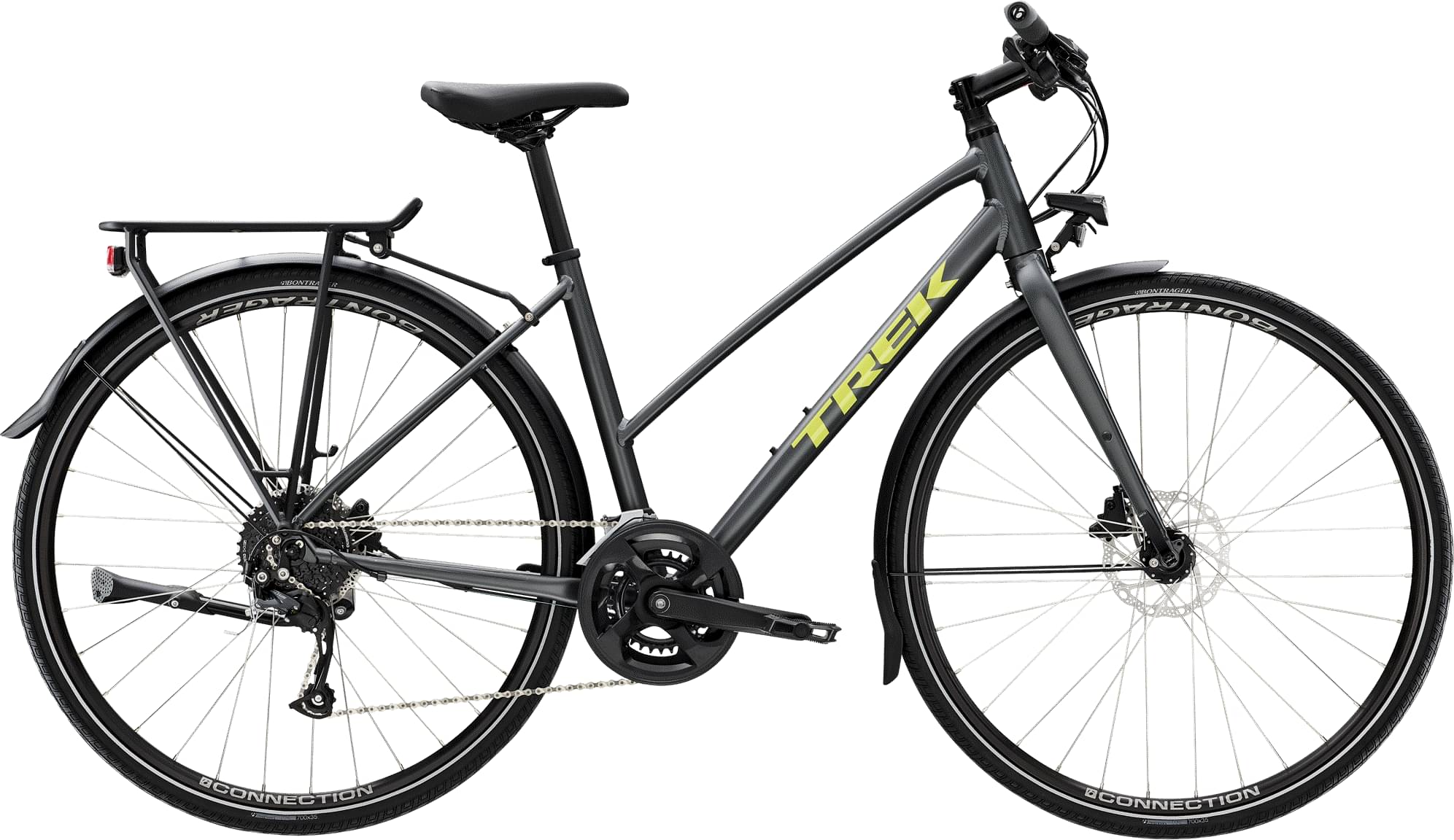

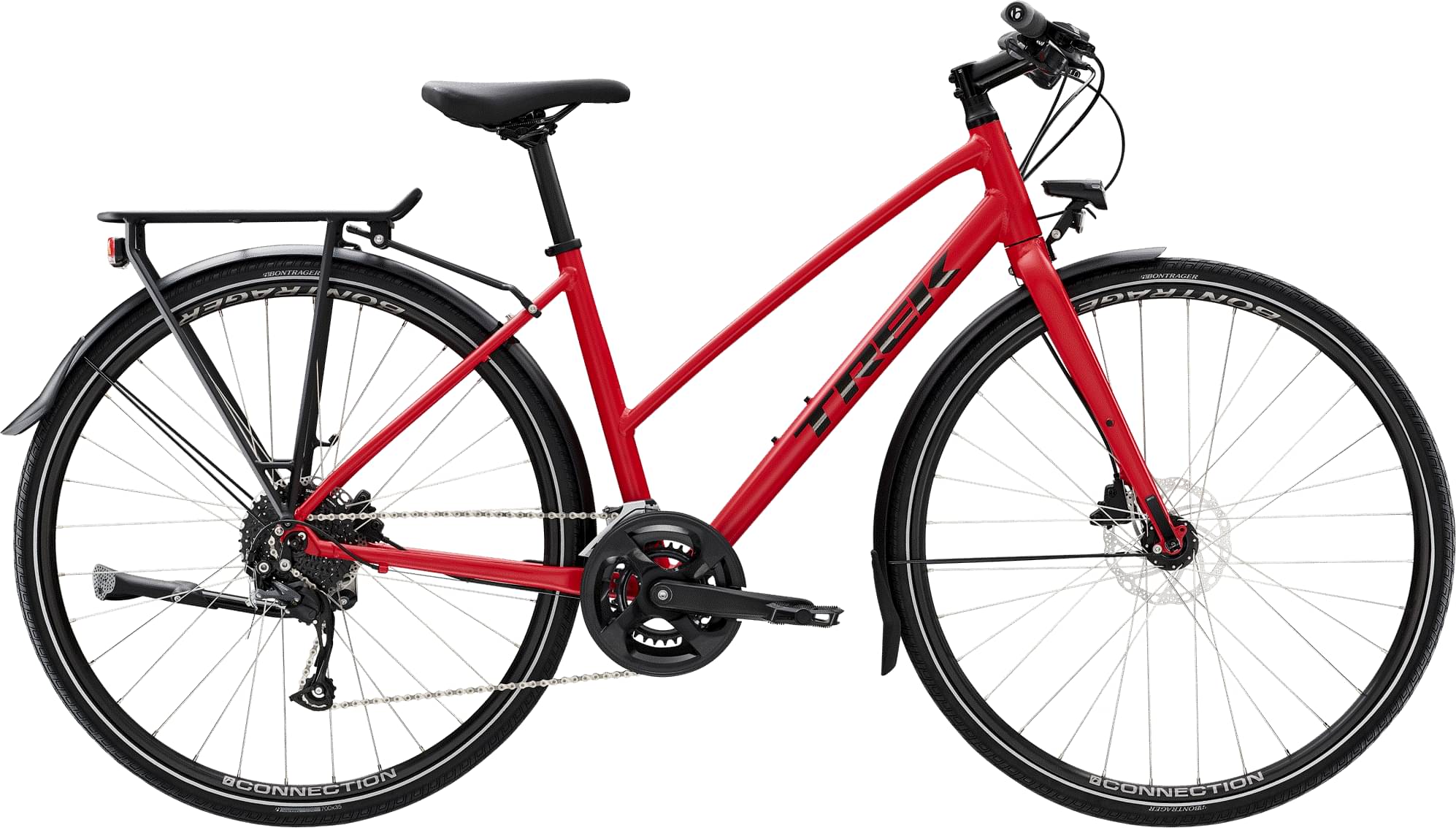

Trek FX 2 Disc Equipped Stagger 2023
2023 Urban
Estimate price |
1,031$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, stagger top tube, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
FX Alloy, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR
Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Chain
KMC X9
Pedals
Size: S, M, L, Bontrager City pedals; Size: S, M, L, Wellgo C157, boron axle, plastic body
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tires
Size: S, M, L, Bontrager H2 Hard-Case Light, 700x35 c; Size: S, M, L, Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor
Cockpit
Stem
Size: S, M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm | 625 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 75 mm | 75 mm | 68 mm |
| Stack | 552 mm | 570 mm | 593 mm |
| Reach | 382 mm | 387 mm | 389 mm |
| Top Tube Length | 535 mm | 551 mm | 566 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1053 mm | 1065 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 709 mm | 755 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
FX 2 Disc Equipped Stagger belongs to the Trek Fx model. There are 128 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek FX 1 Stagger 2023 is the cheapest bike model and costs 599$. Trek FX Sport 6 2023 is the most expensive one and costs 2799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 955$. Comparing this to the average Fitness bike price, we see that the price is 45.58% more expensive.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
FX 2 Disc Equipped Stagger weighs 12.9 kg (28.44 lbs) and is considerably heavier than the average. In short, the average Fitness bike weight is 14.77% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
FX 2 Disc Equipped Stagger components
Fork material
FX 2 Disc Equipped Stagger has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the FX 2 Disc Equipped Stagger model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek FX 2 Disc Equipped Stagger is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trek FX 2 Disc Equipped Stagger bike has 3 sizes, in the range of 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, it won’t take much to find one that’s right for you.
