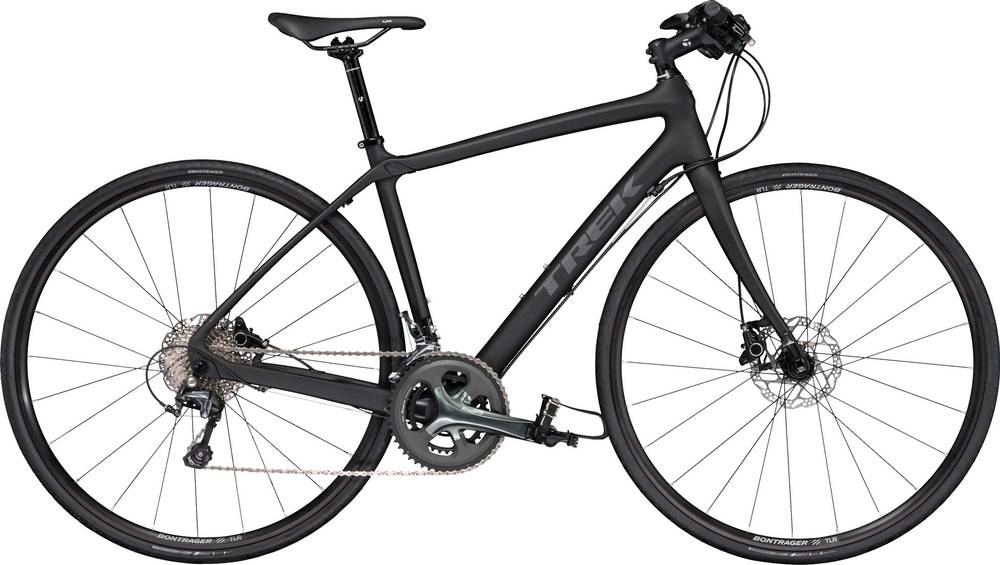

Trek FX S 5 Women’s 2017
2017 Urban
Estimate price |
1,789$
Weight | 10.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, IsoSpeed, E2 tapered head tube, BB90, disc balanced post mount, Power Transfer Construction, 142x12 Closed Convert dropout, hidden fender mounts, 3S chain keeper, DuoTrap compatible
Suspension Fork
Domane carbon disc, E2 tapered steerer, 15mm thru-axle
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra, 10 speed
Cassette
Shimano Tiagra, 11-34, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Bottom Bracket
BB90
Chain
KMC X10
Pedals
Nylon body w/alloy cage, toe clip & strap
Wheels
Front Hub
Bontrager alloy sealed bearing, 15mm alloy axle, centerlock
Rear Hub
Bontrager alloy centerlock, 142x12
Rims
Bontrager Tubeless Ready disc
Tires
Bontrager AW2 Hard-Case Lite, 700x25c
Brakes
Brakes
Shimano M365 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, comes w/ computer & light mounts
Handlebar
Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Ajna 1 WSD
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
FX S 5 Women’s belongs to the Trek Fx model. Trek released 128 bikes variations of this model so far. Take a sneak peek at all Trek Fx bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Trek FX 2017 has a starting price of 379$. Trek FX S 6 2017 on the other hand is the most expensive at 2099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1789$. Doing a quick comparison, we notice that FX S 5 Women’s price is 172.71% more expensive than the average cost of a Fitness bike.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
FX S 5 Women’s weighs 10.06 kg (22.18 lbs) and is considerably lighter than the average. To sum up, it’s 11.73% lighter than the average weight of Fitness bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The FX S 5 Women’s 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
