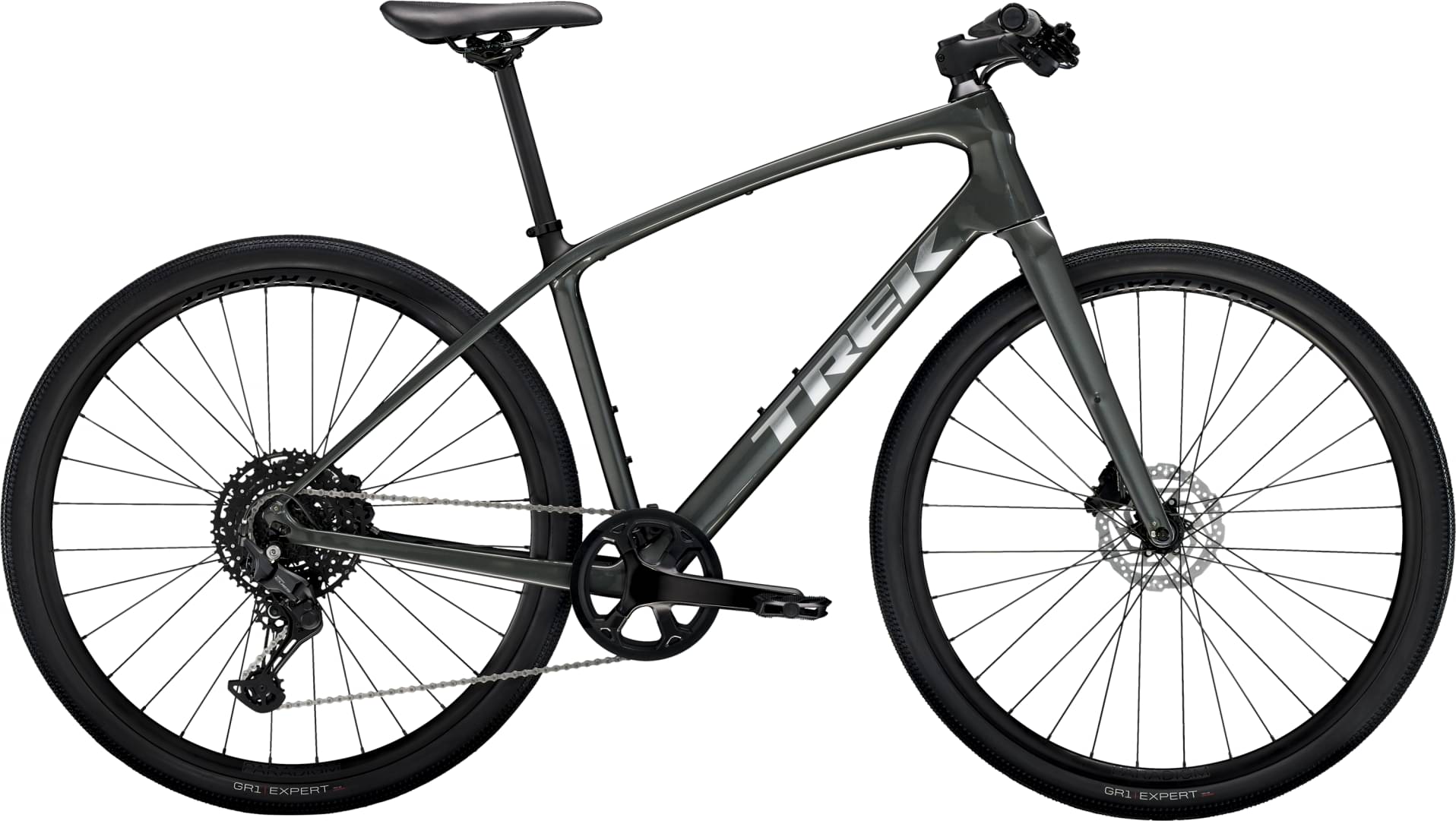

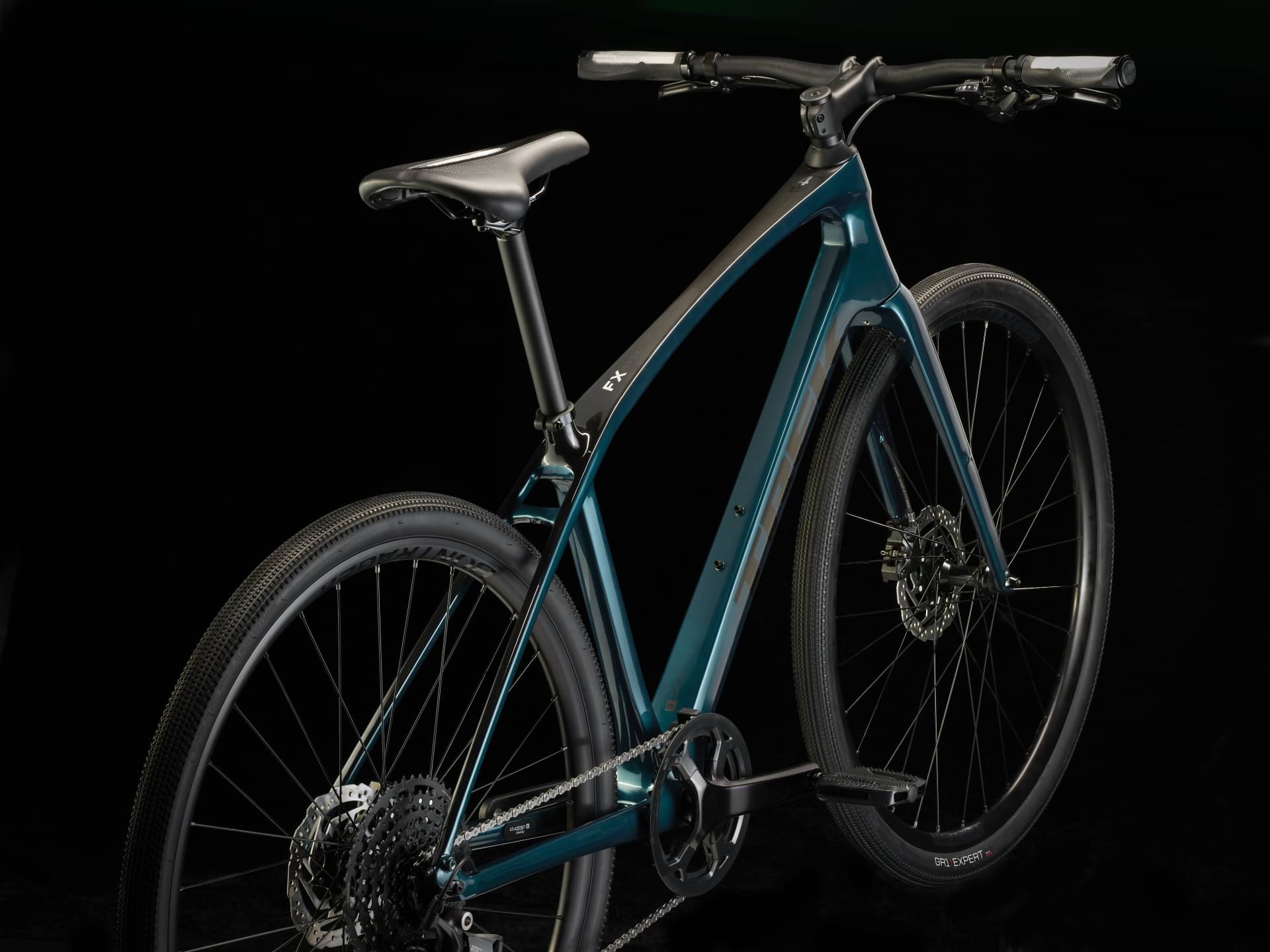

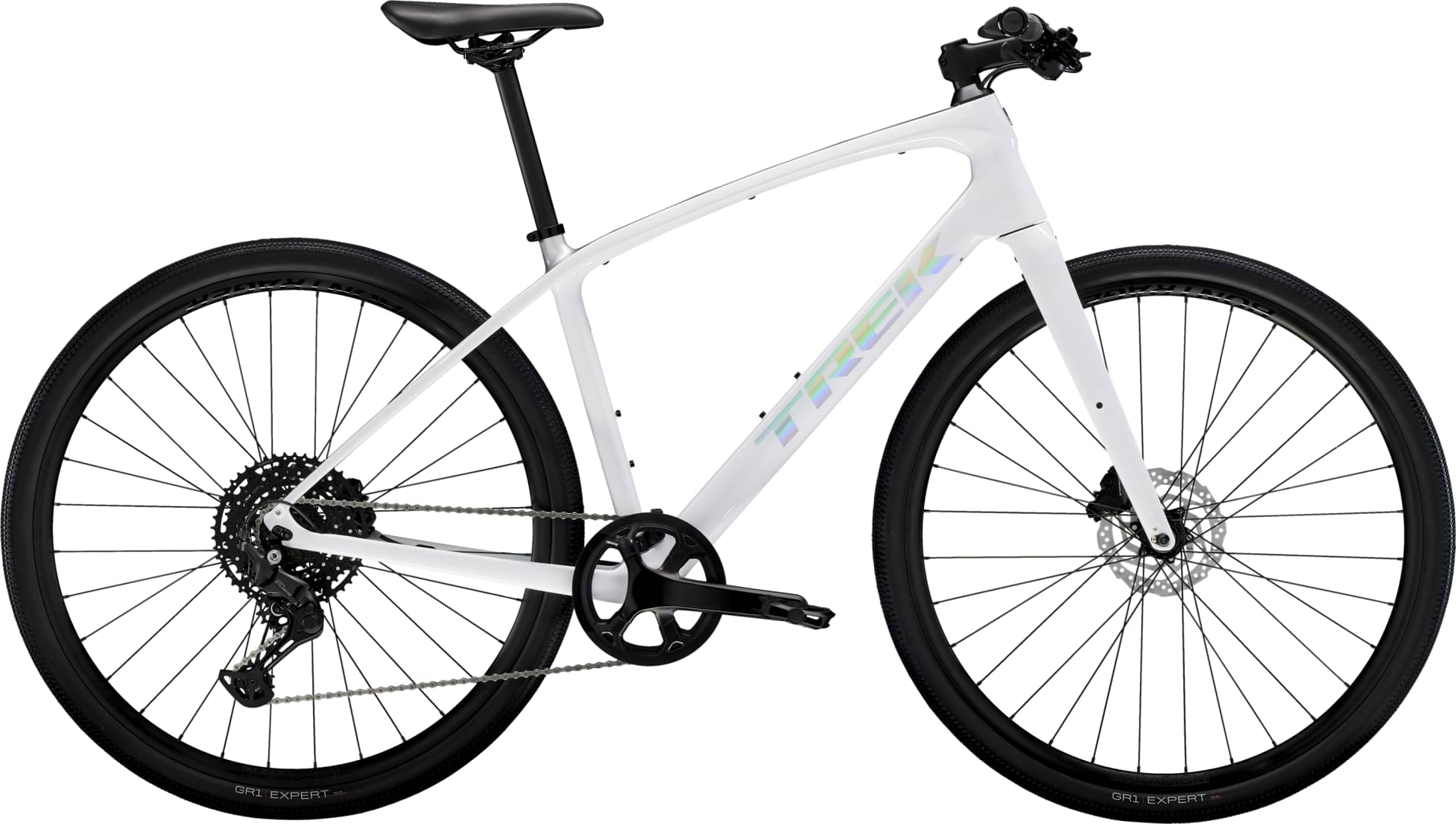

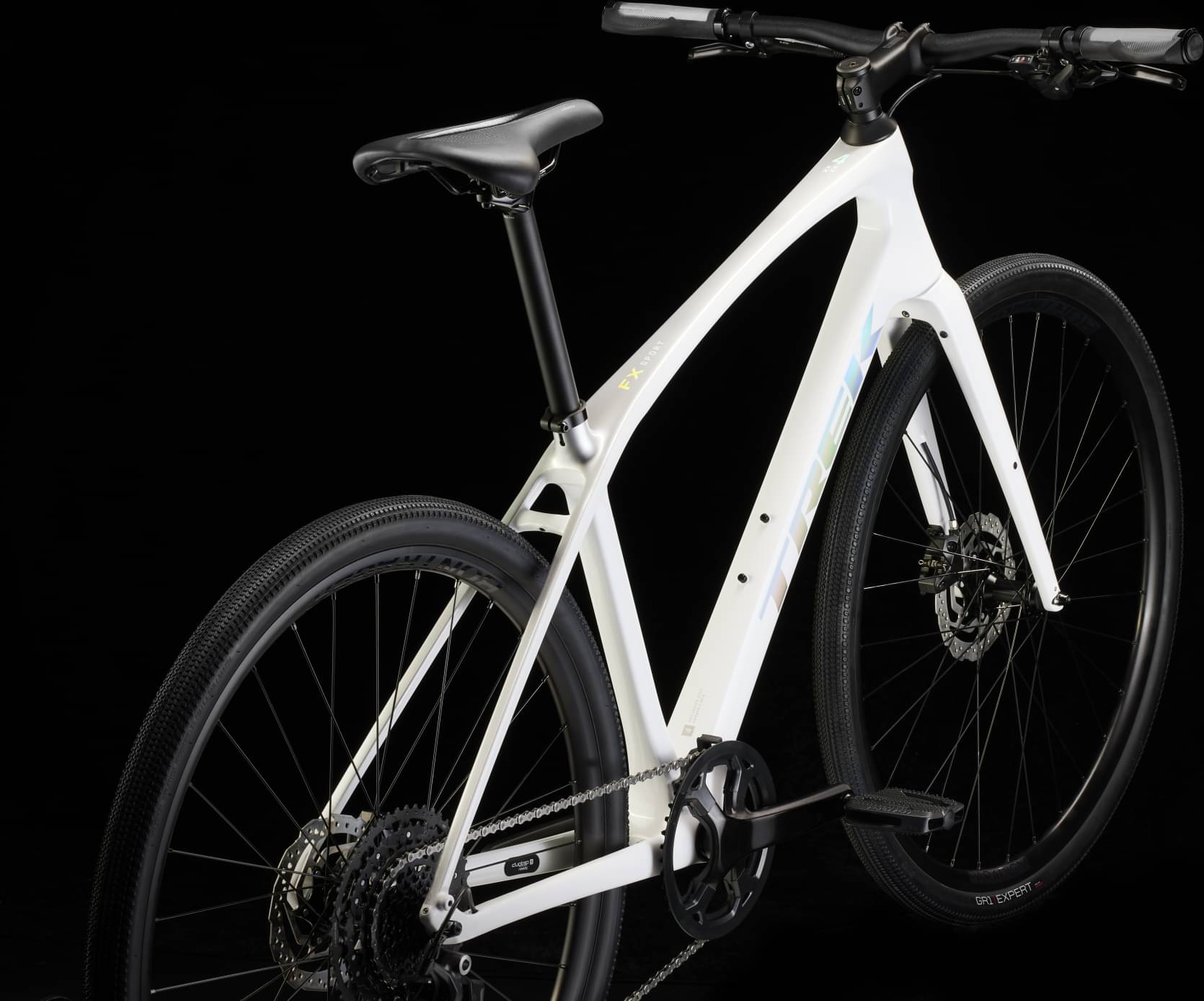

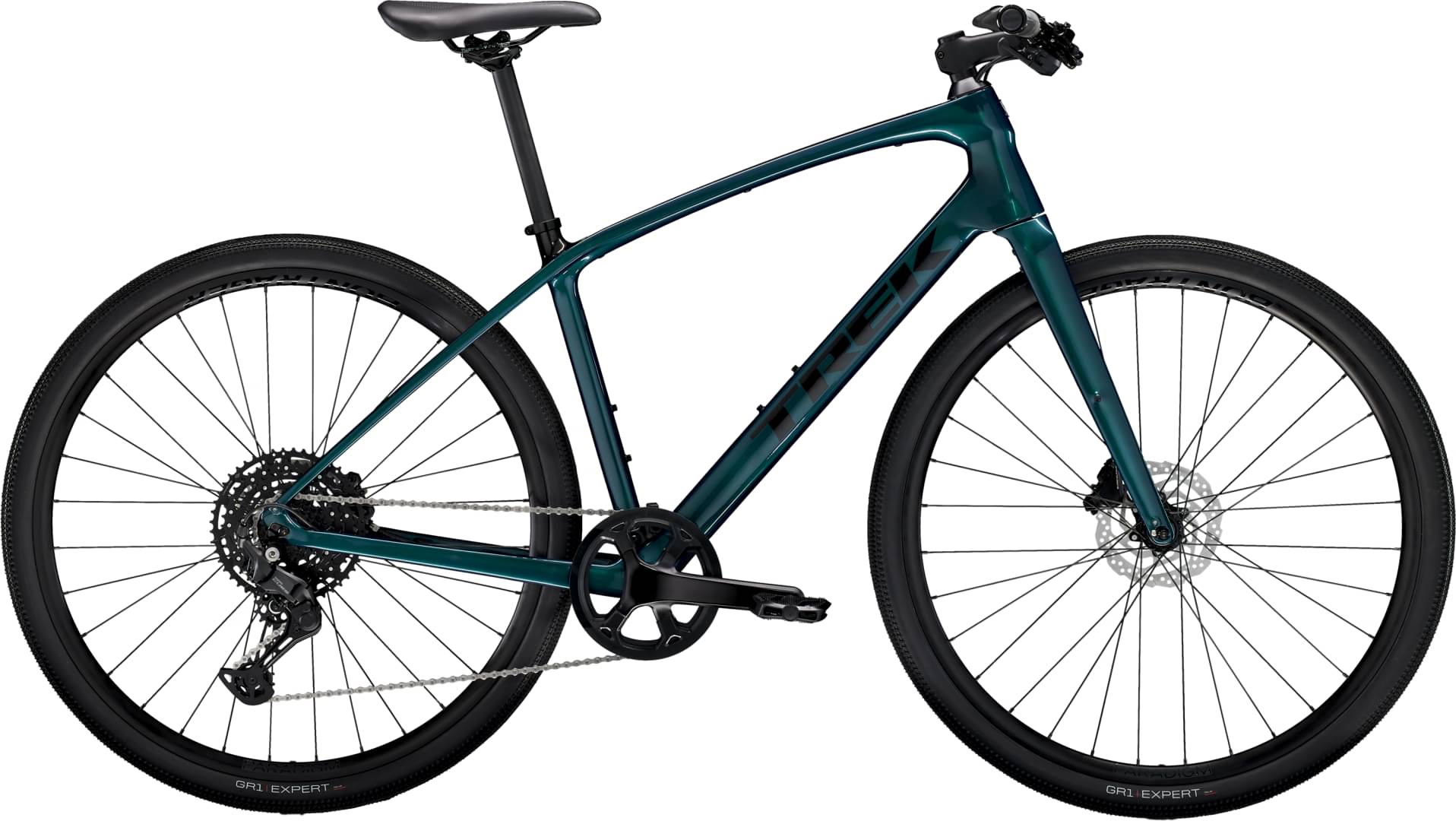

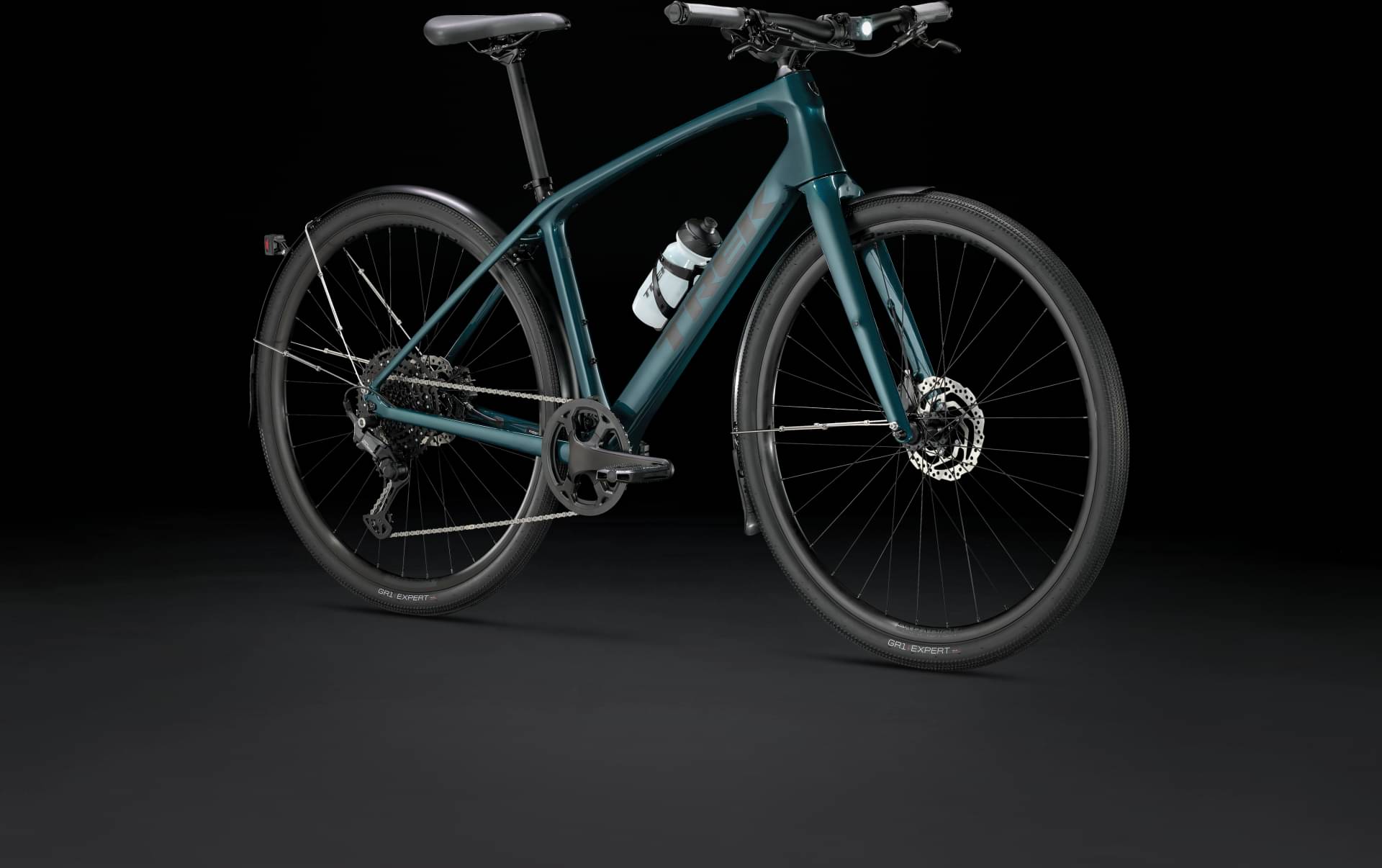

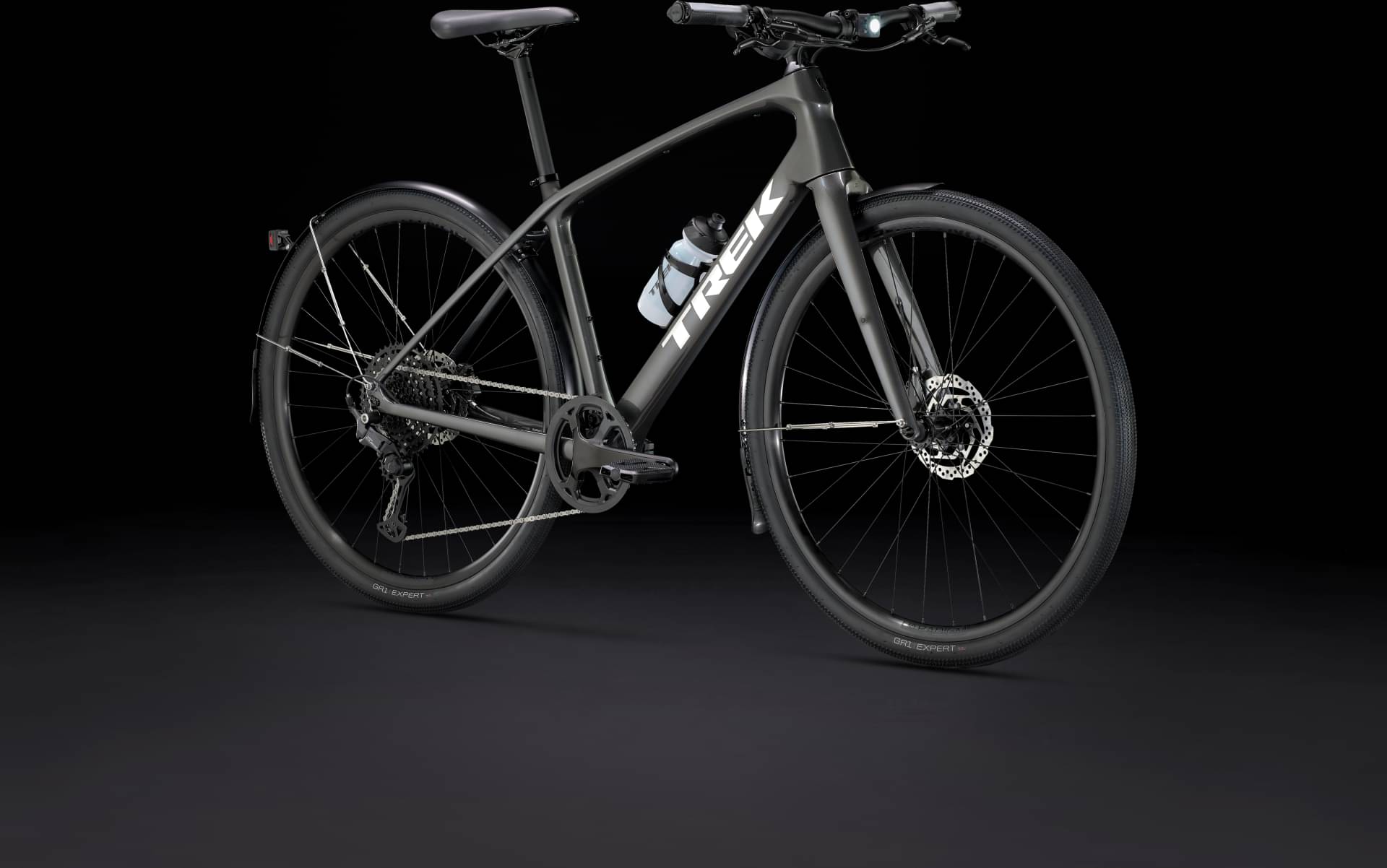

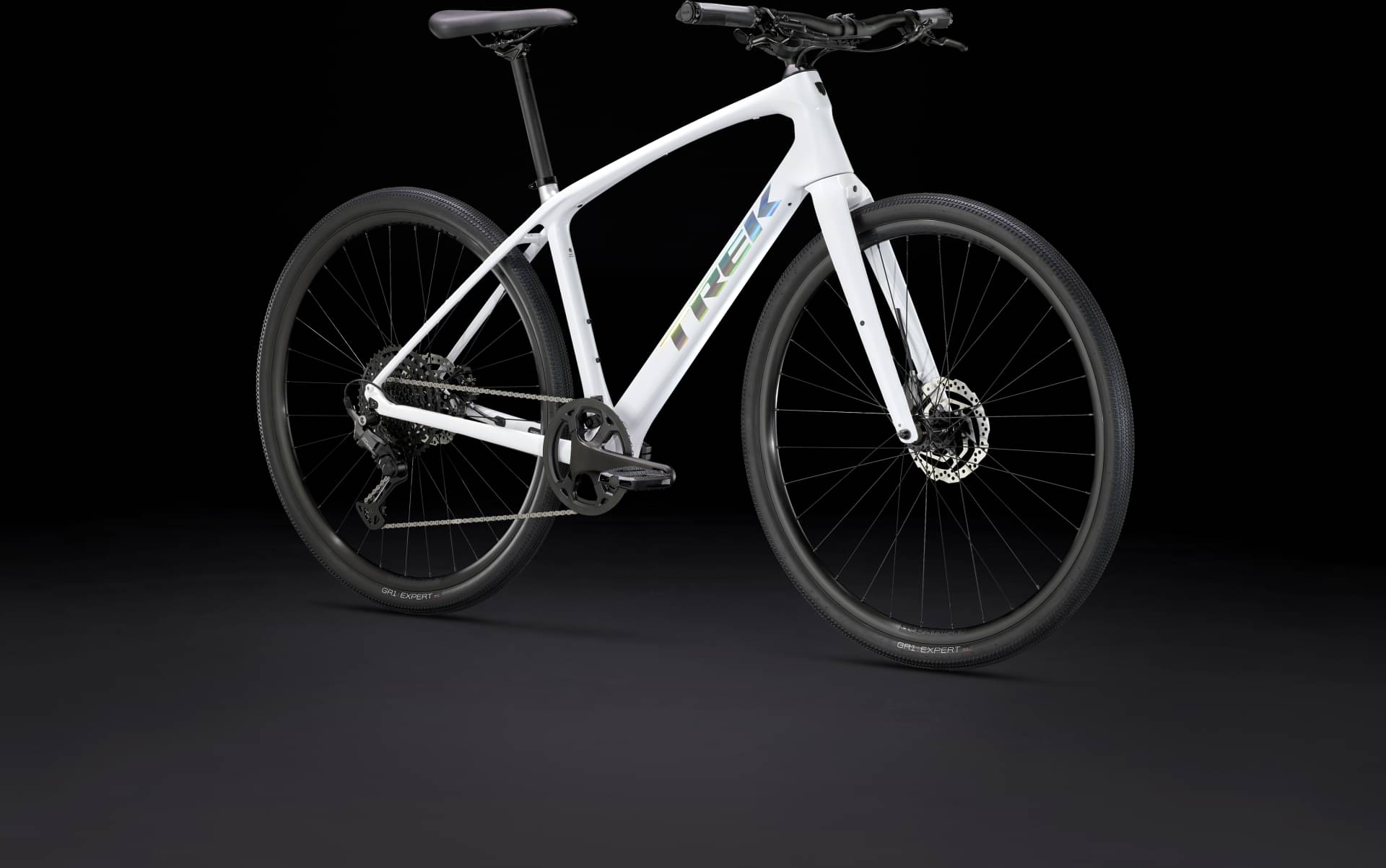

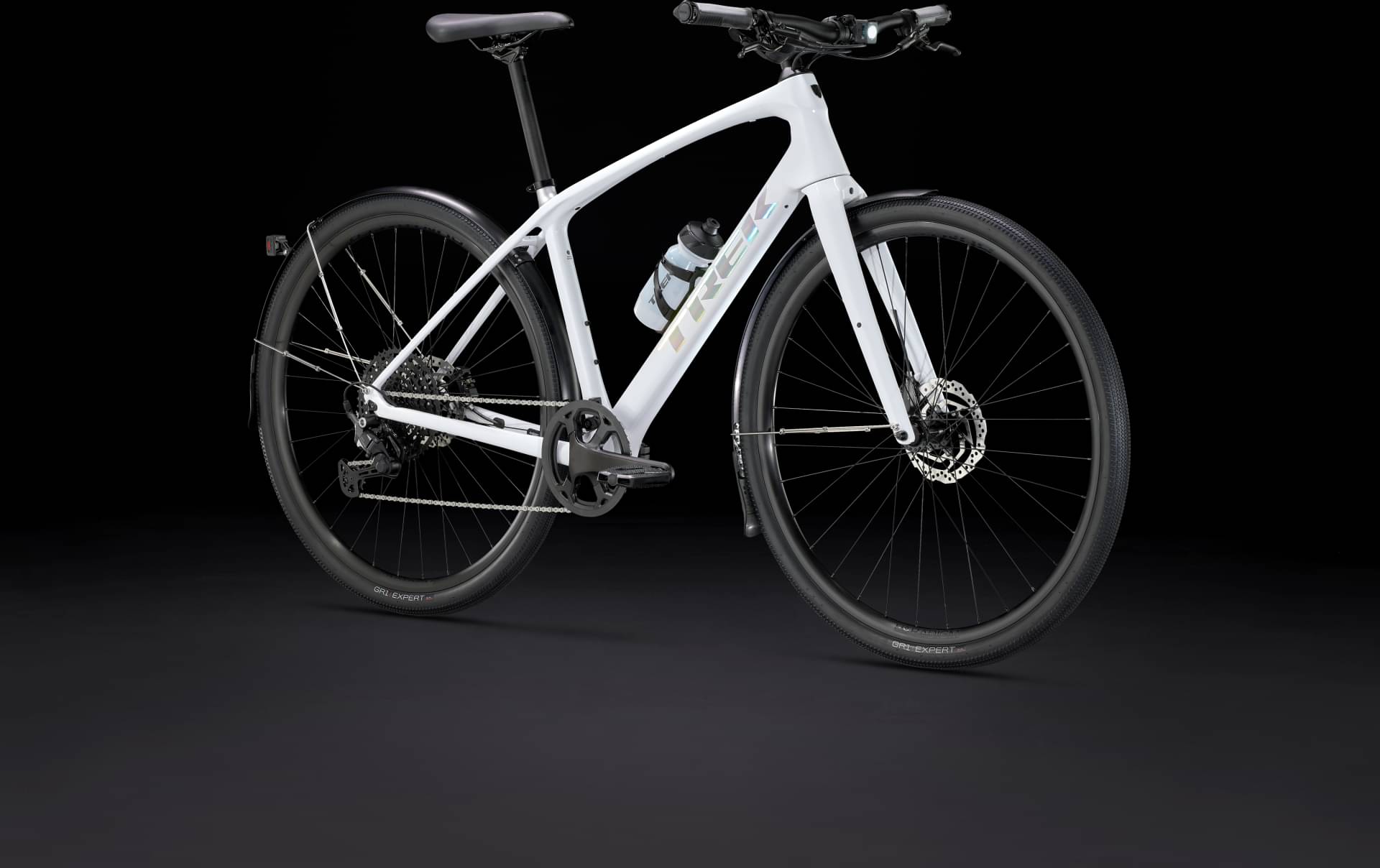

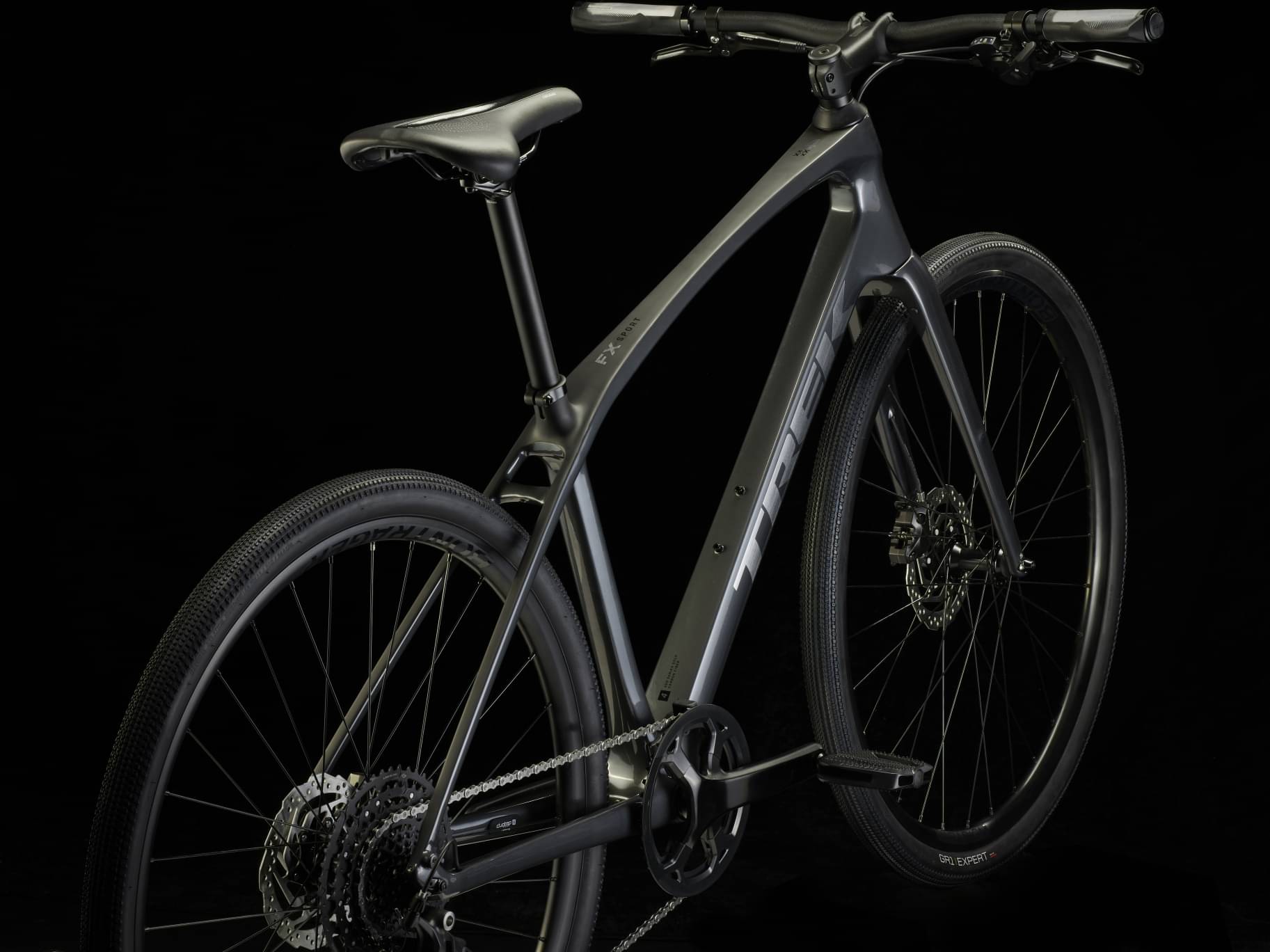

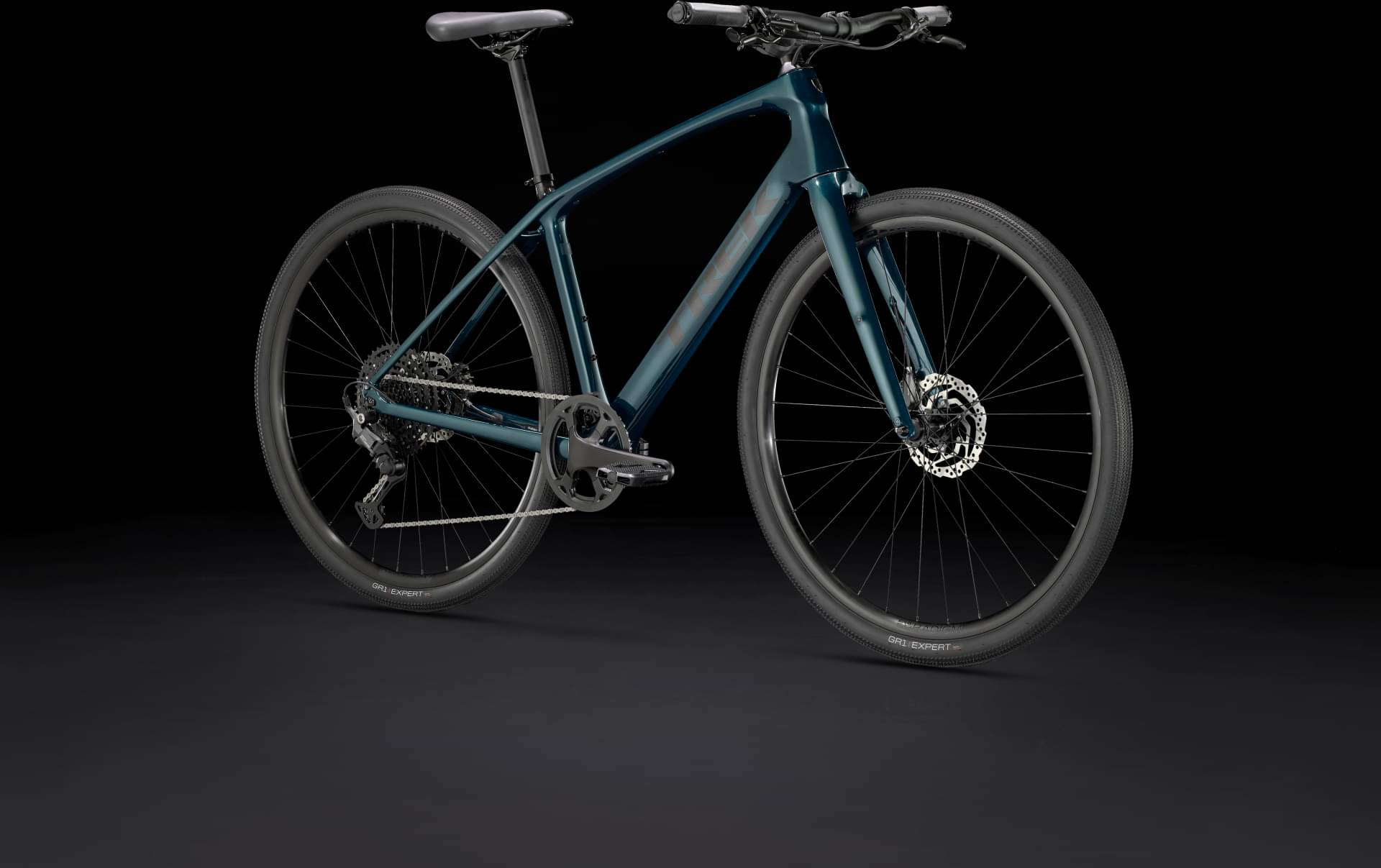

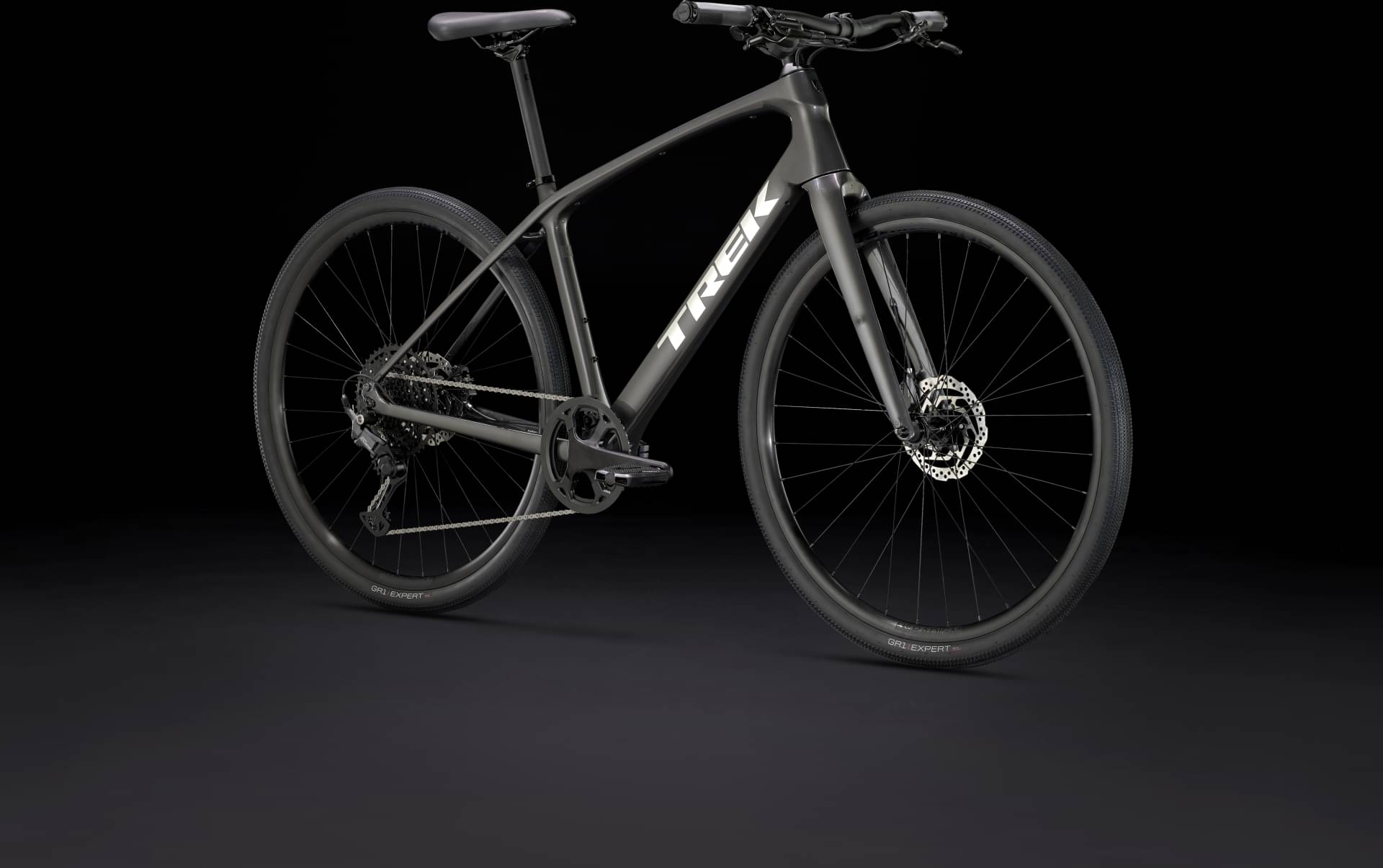

Trek FX Sport 4 2024
2024 Urban
Estimate price |
2,063$
Weight | 10.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

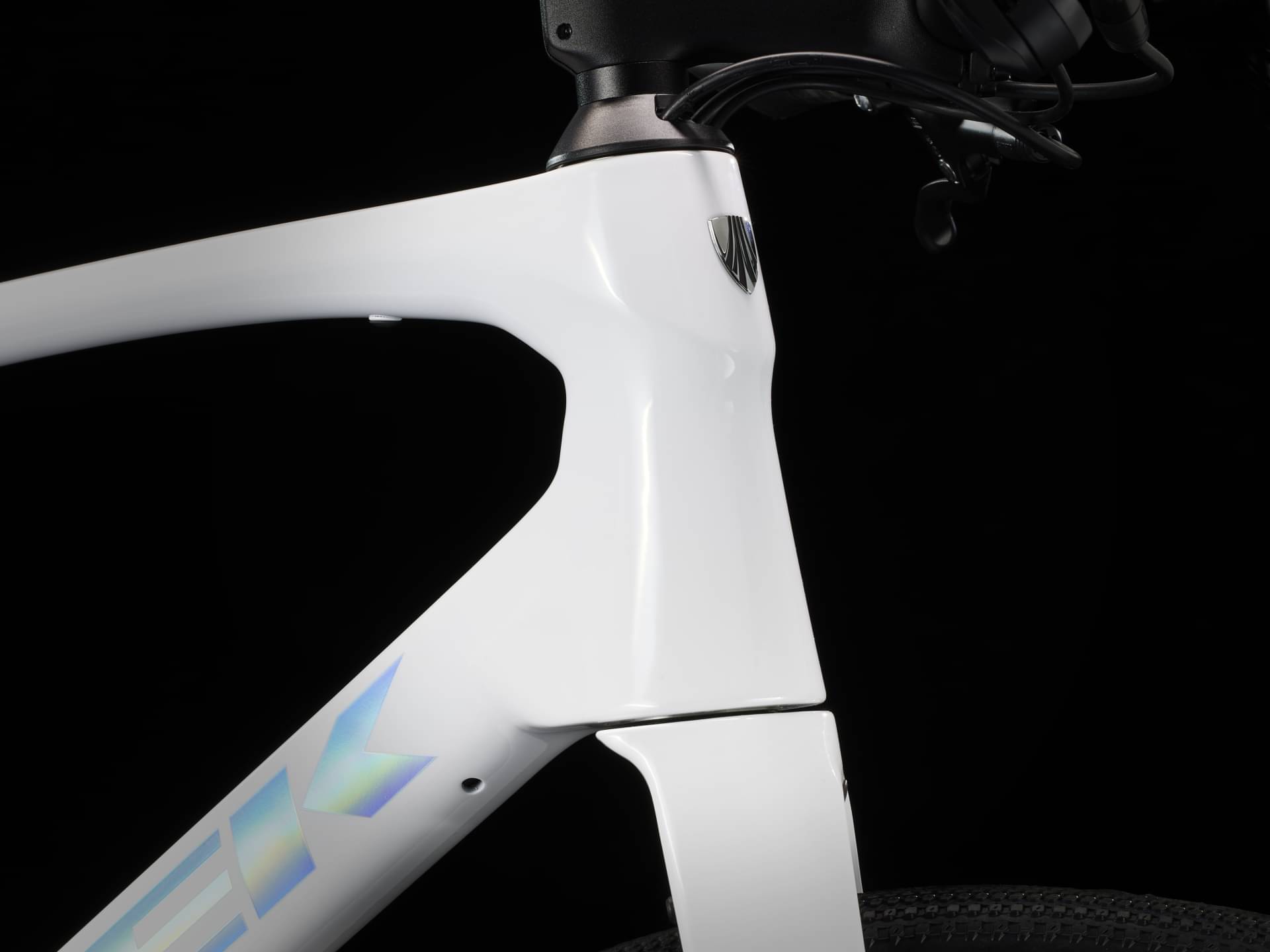

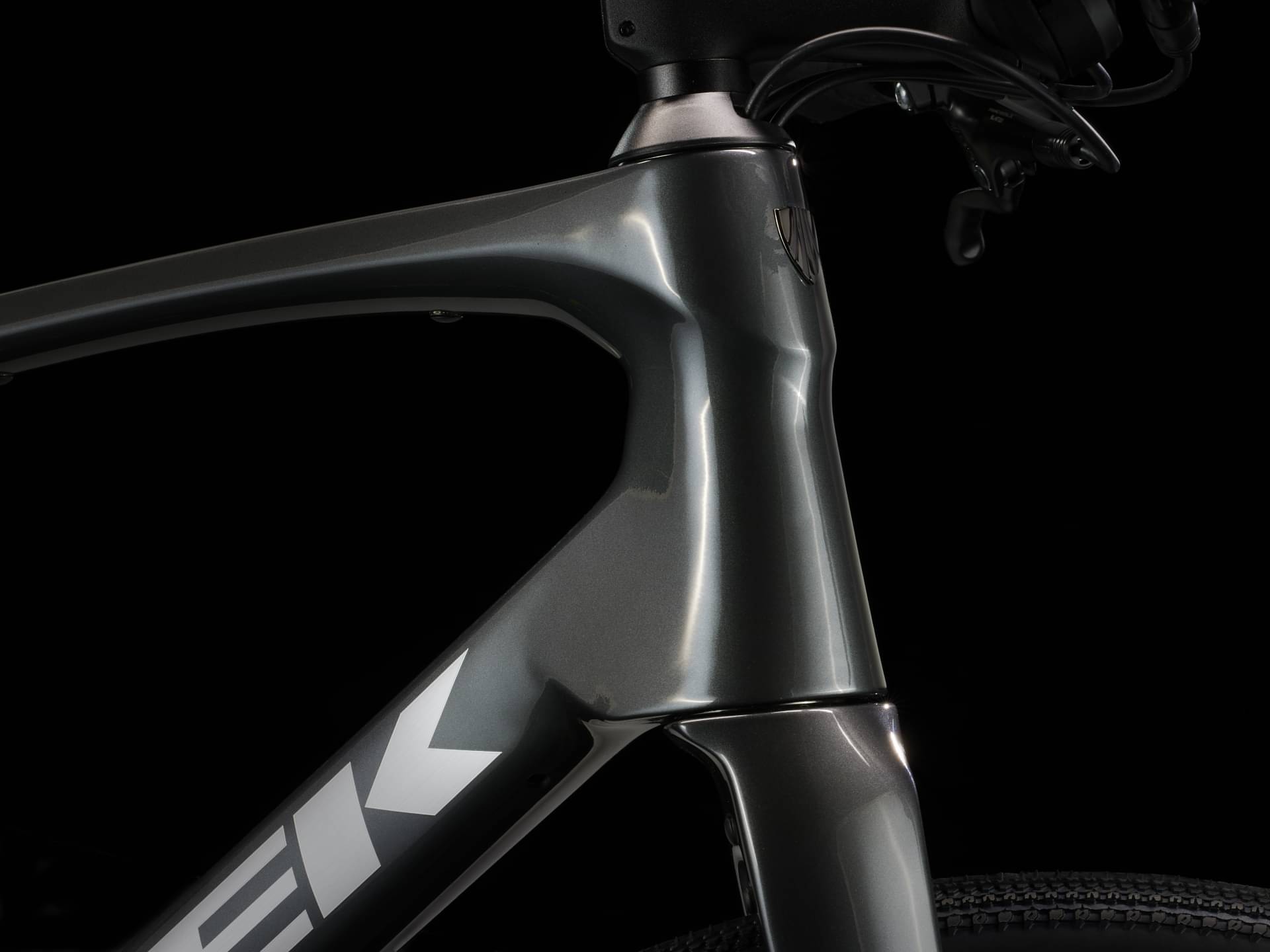

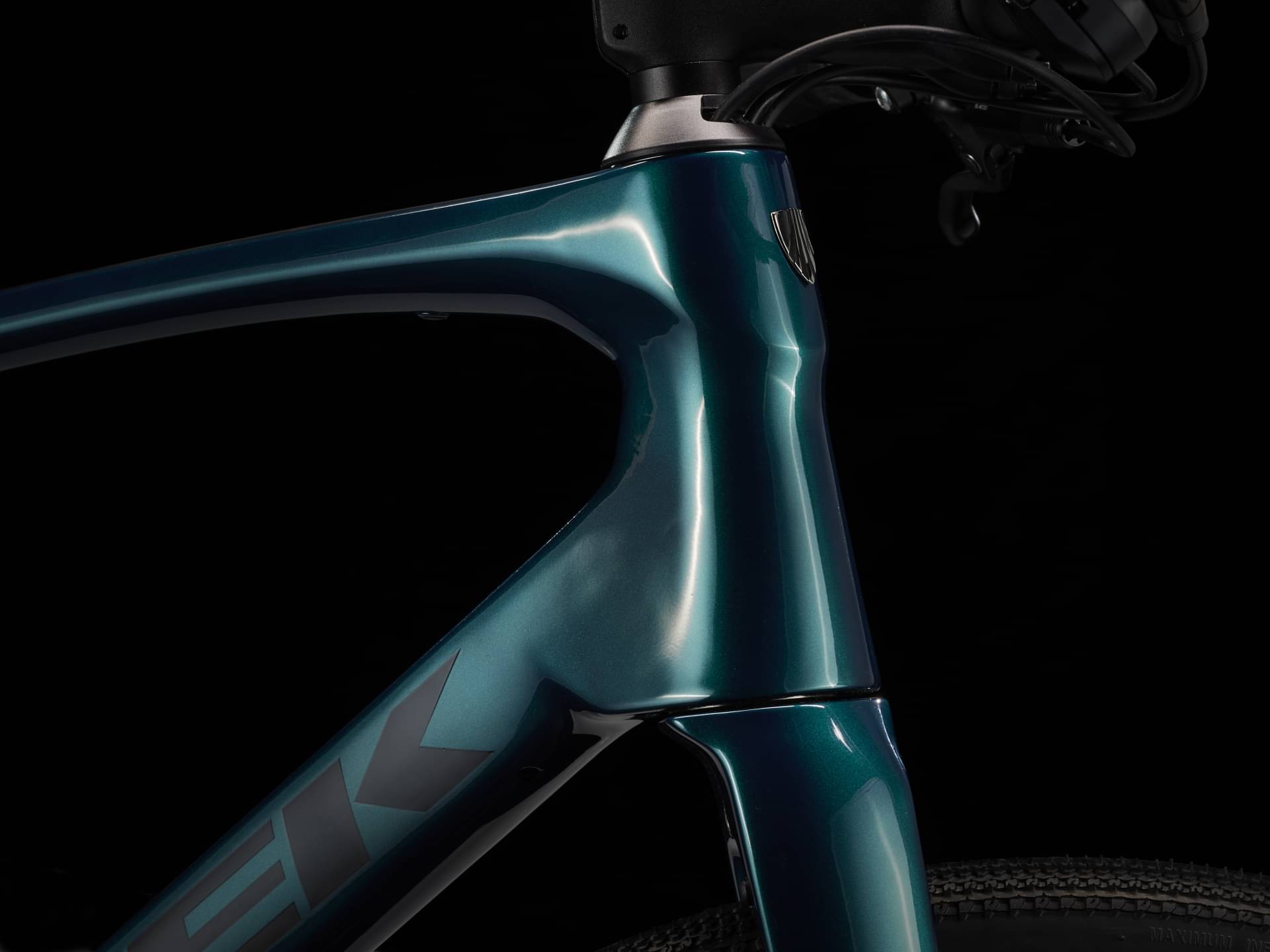

Frame
Suspension Fork
Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew

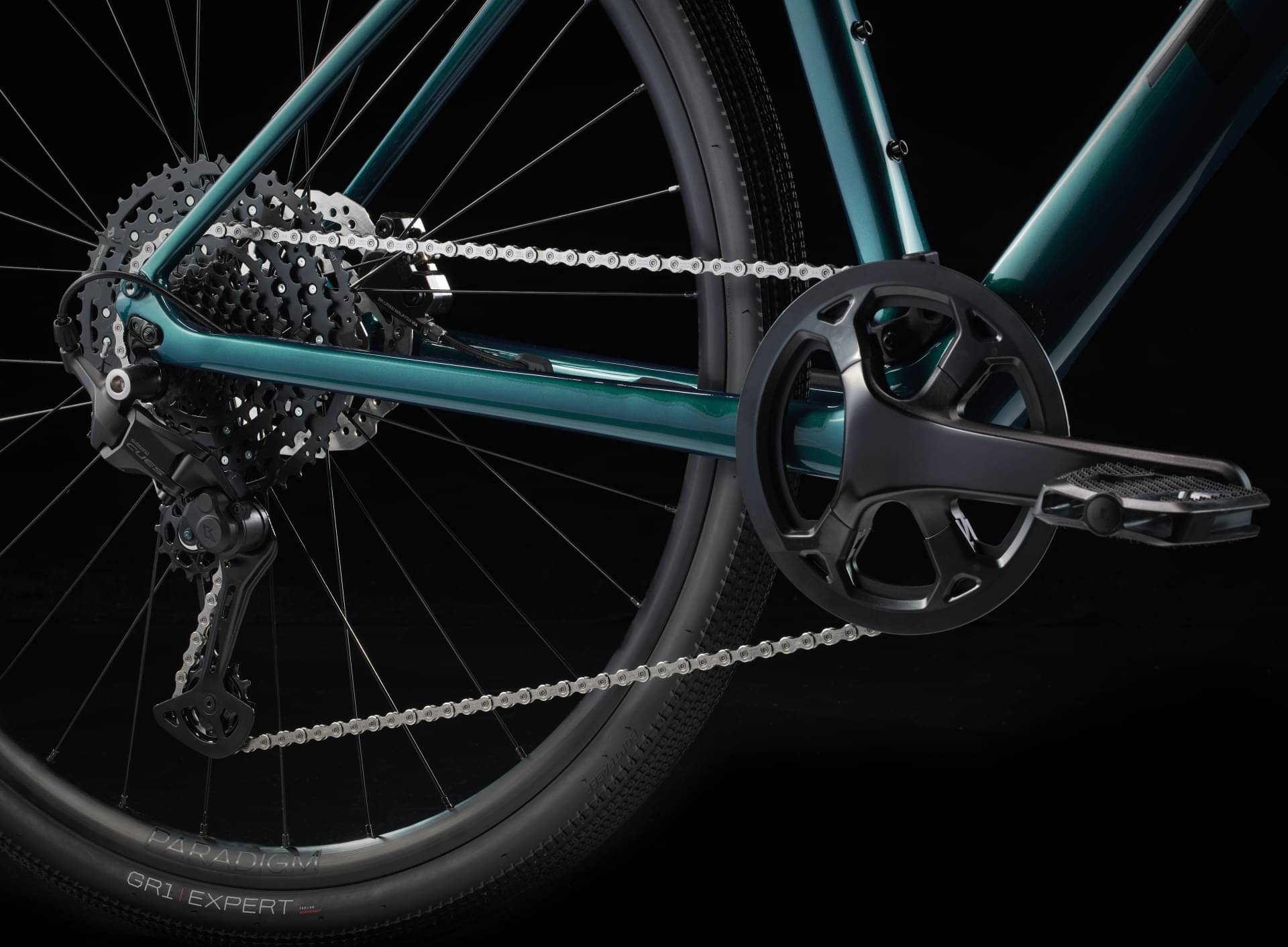

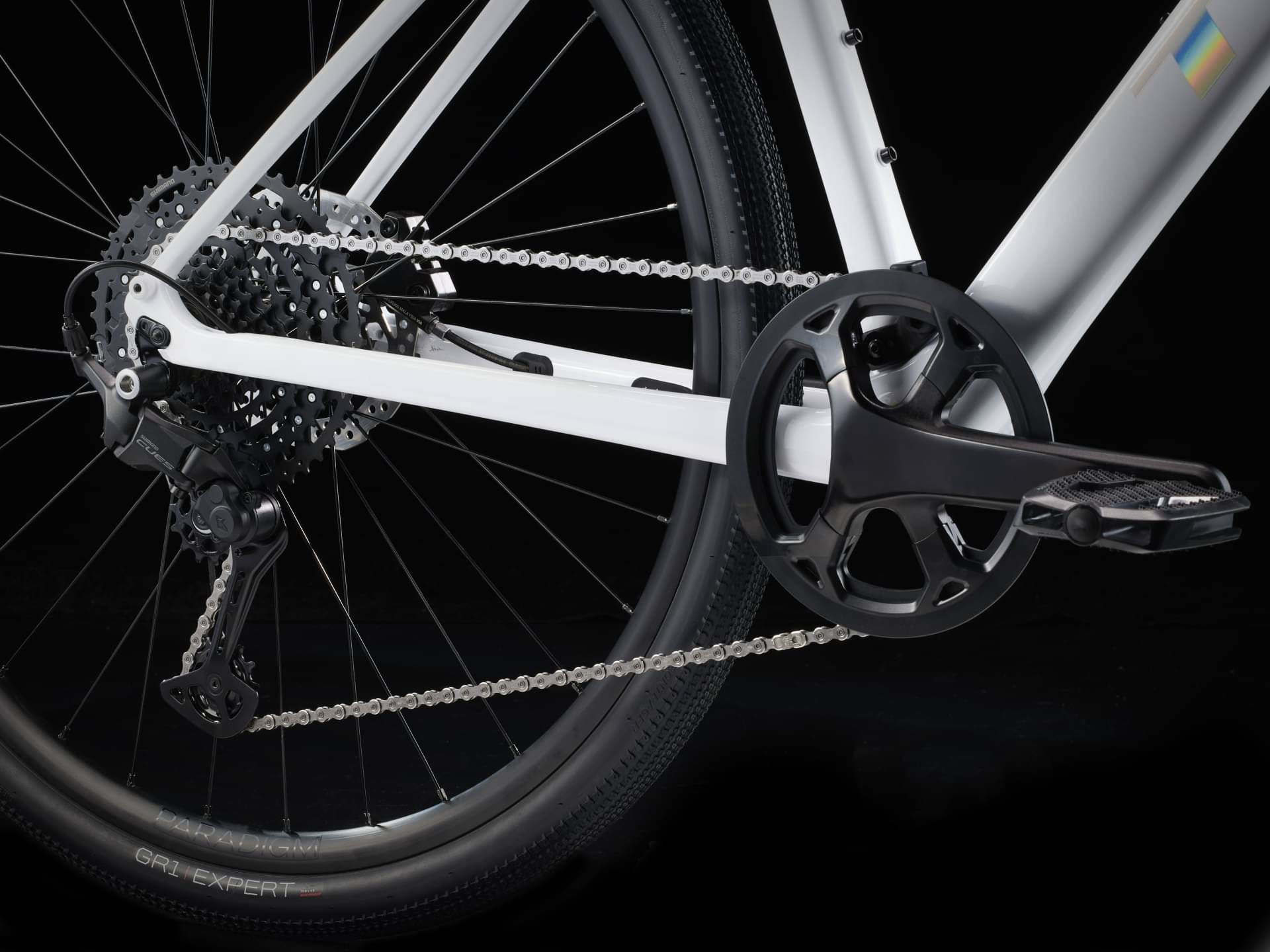

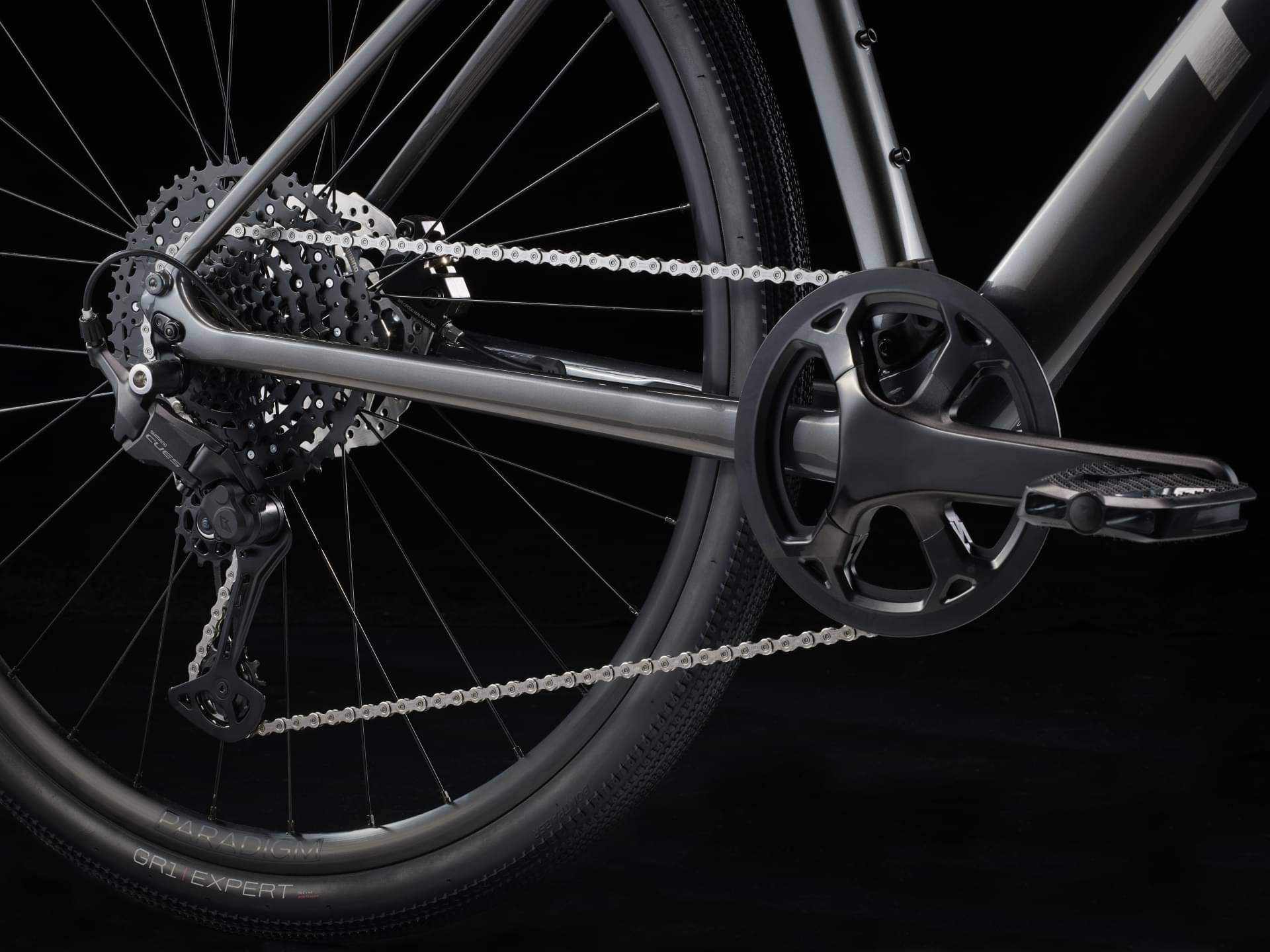

Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10 speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Crank
Size: XS, S, Prowheel alloy, 42T narrow-wide ring, 170mm length; Size: M, L, XL, Prowheel alloy, 42T narrow-wide ring, 175mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula CL-51 alloy, 100x5mm QR
Rear Hub
Formula CL-52 alloy, 135x5mm QR

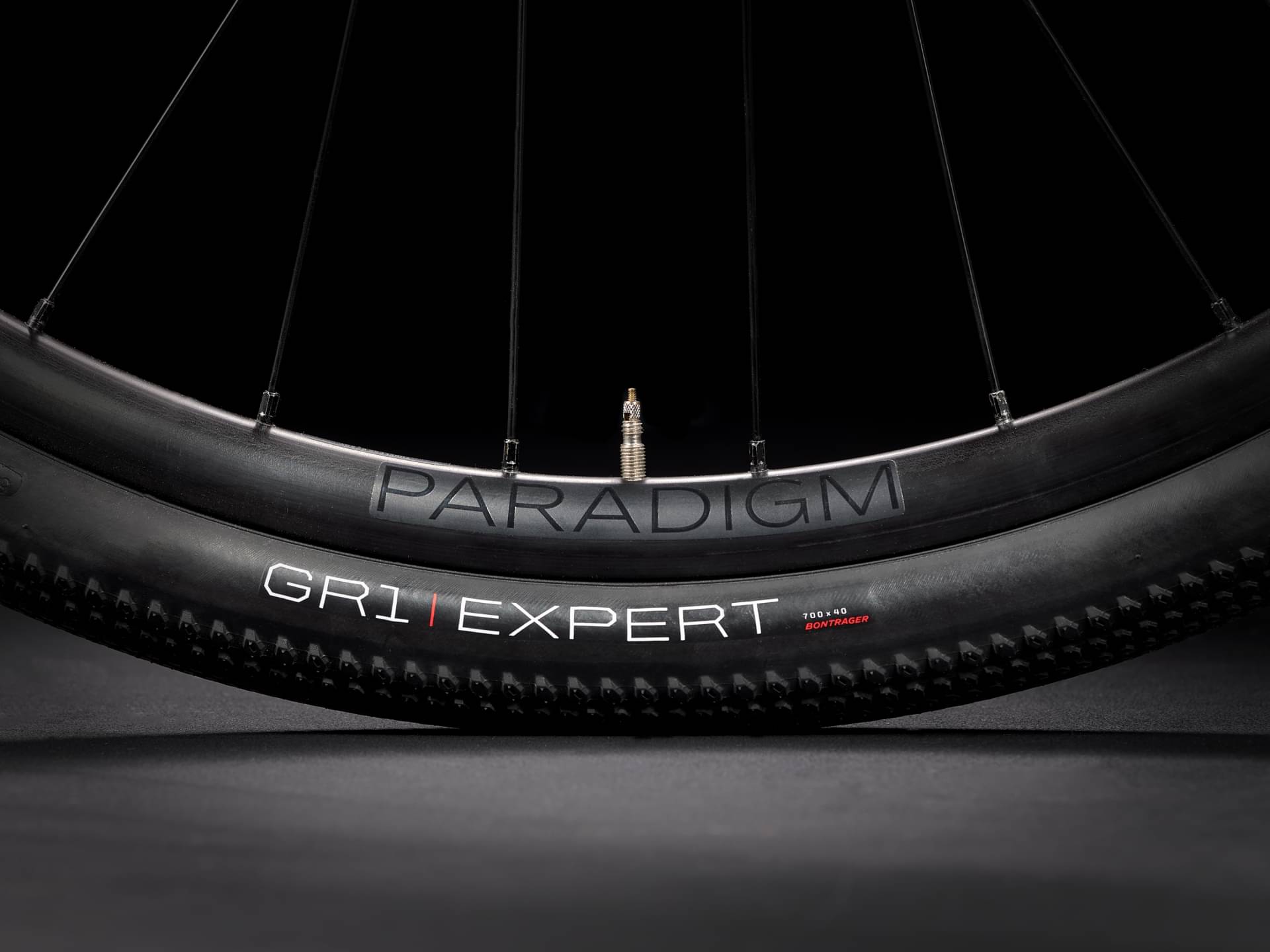

Rims
Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40mm

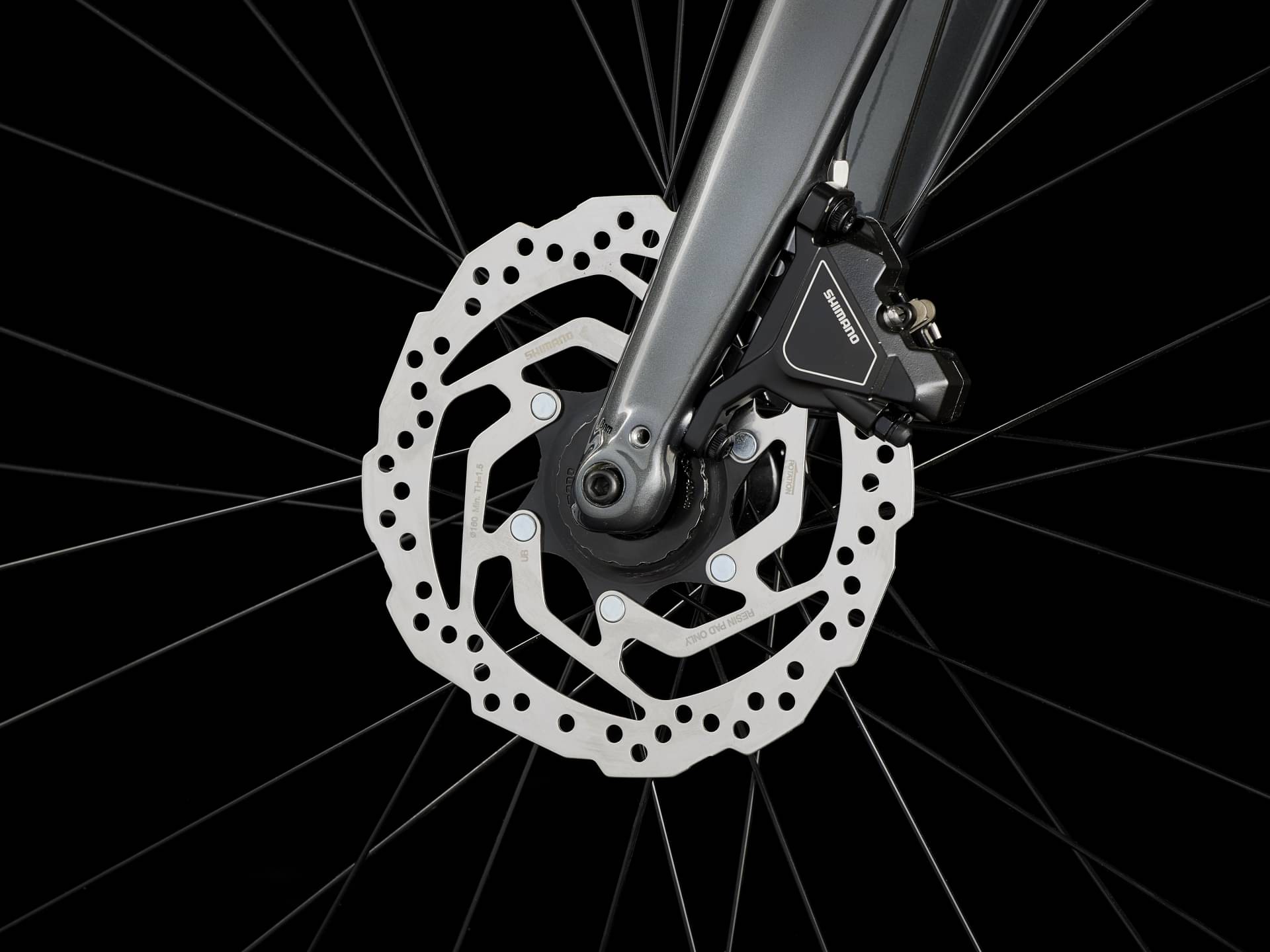

Brakes
Brakes

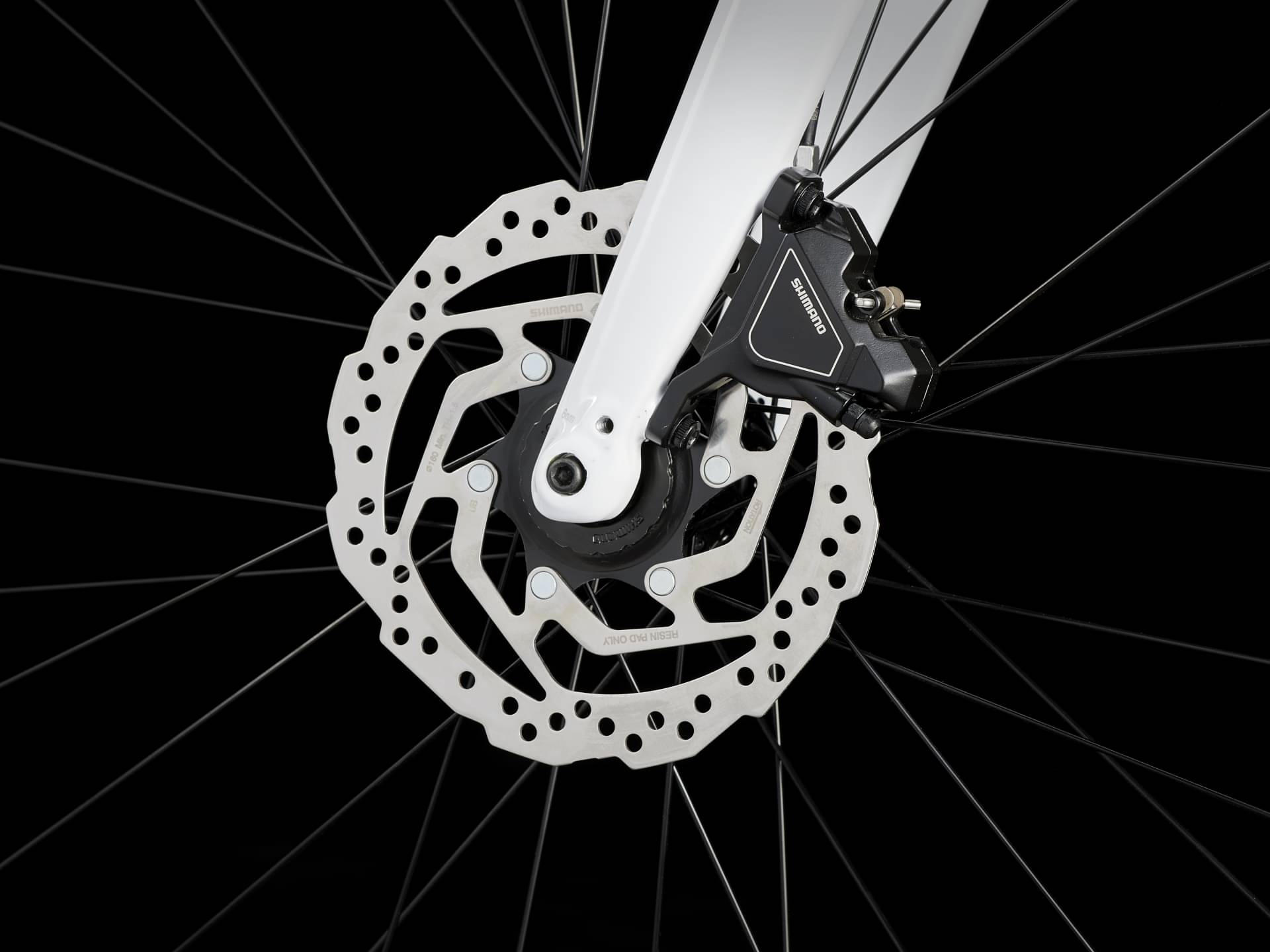

Shimano hydraulic disc, MT201 lever, UR300 caliper
Cockpit
Stem
Size: XS, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: S, M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: L, XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

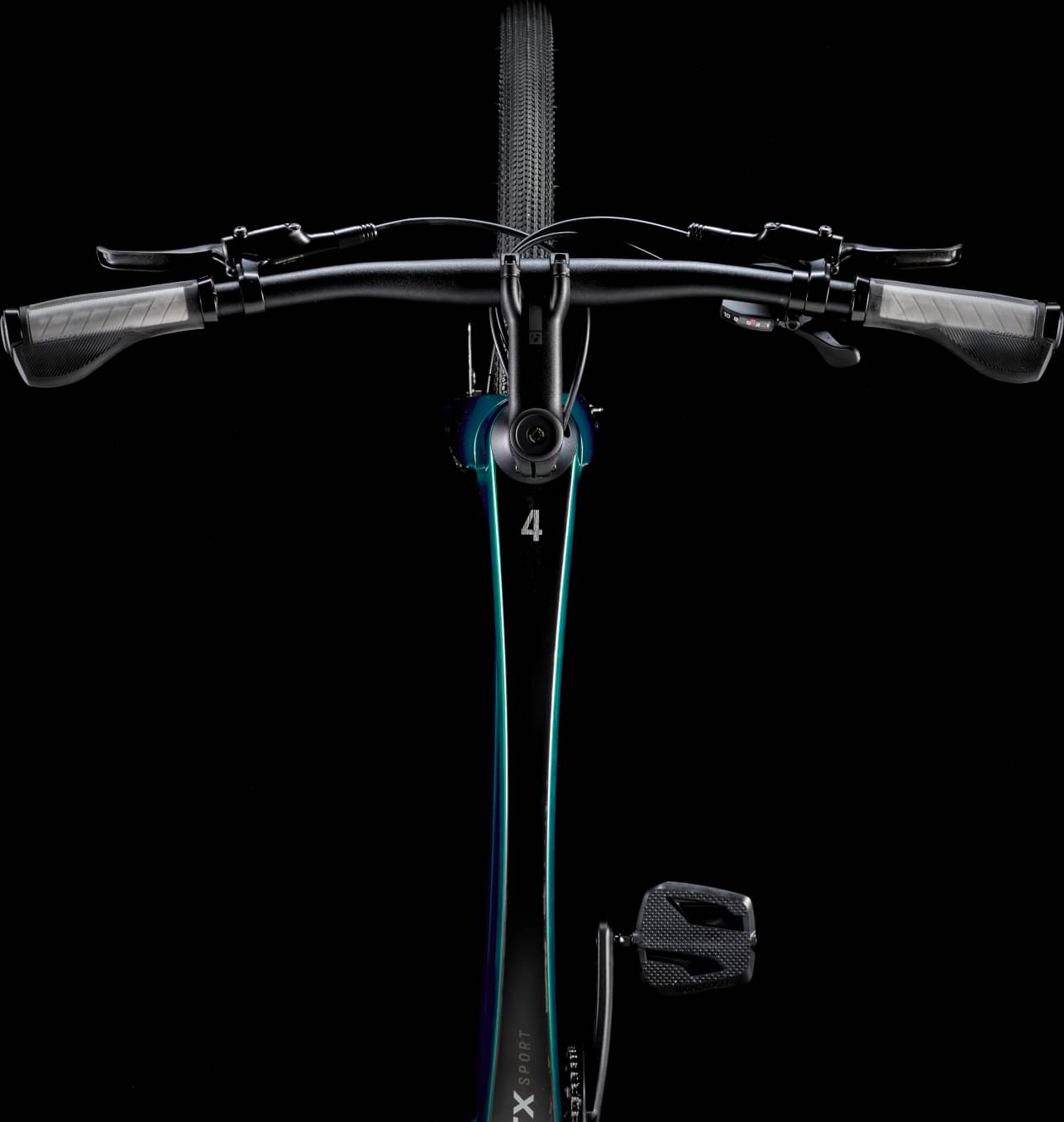

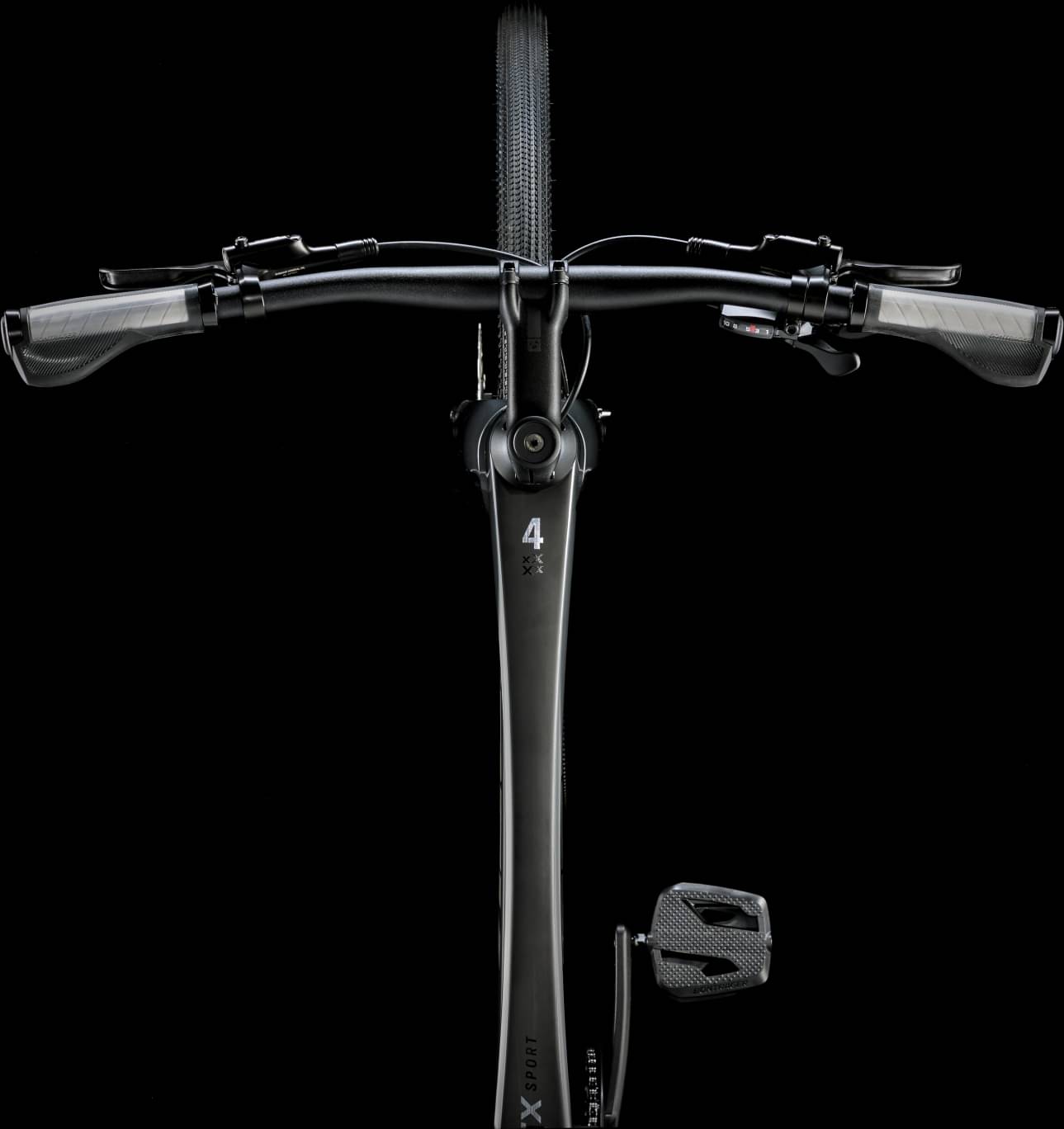

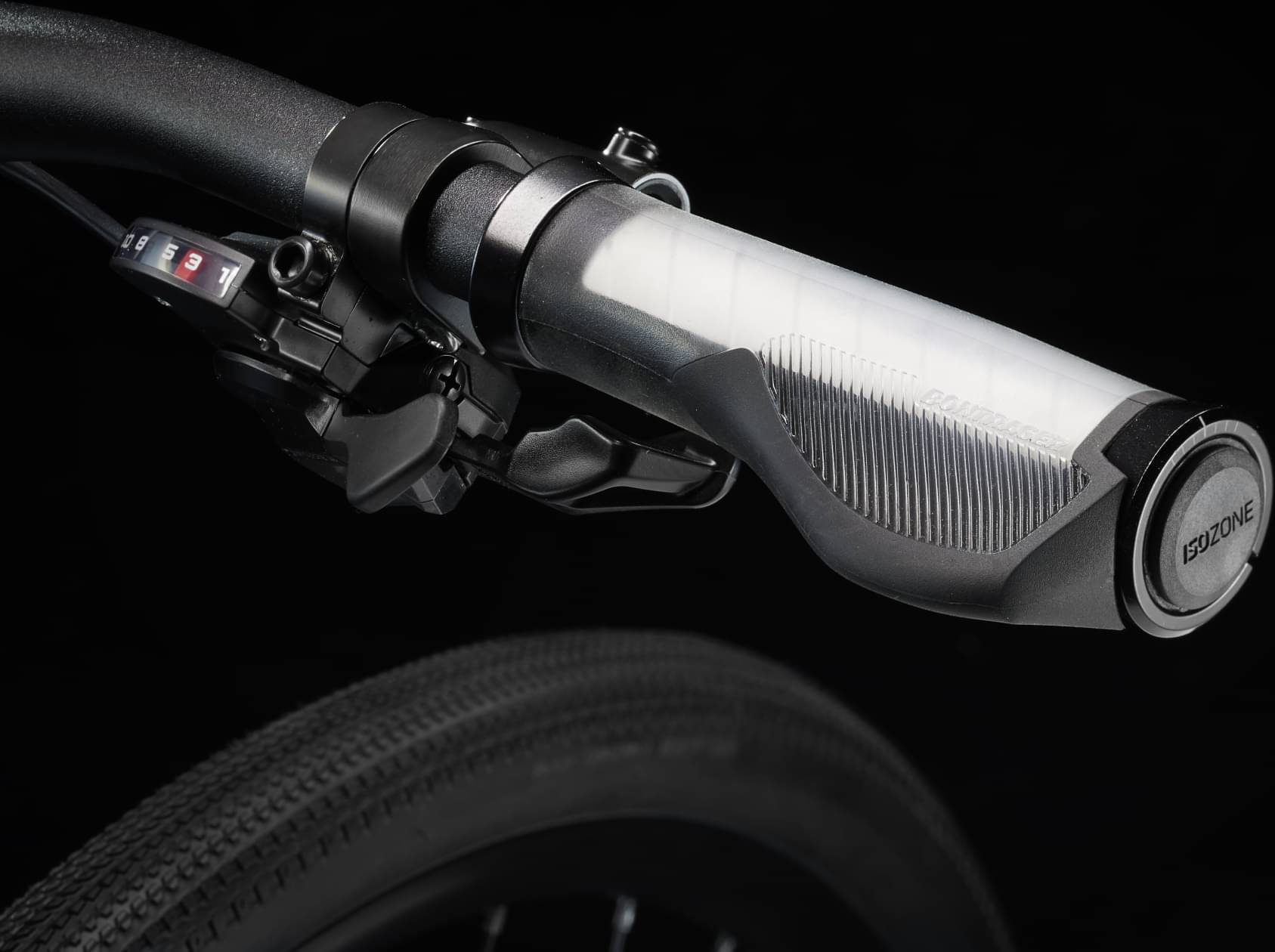

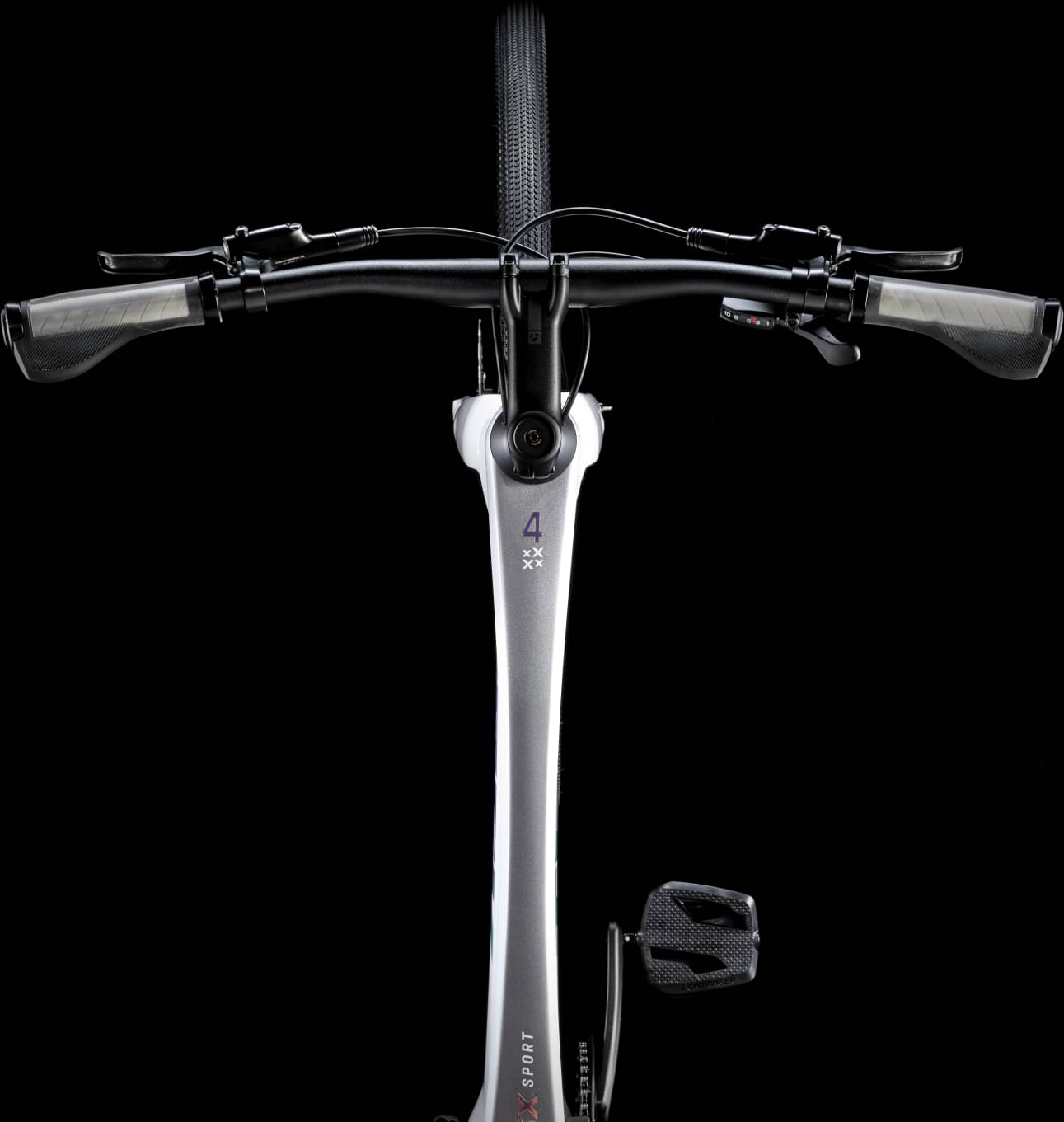

Handlebar
Size: XS, S, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: M, L, XL, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.418 mm | 1.475 mm | 1.511 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 613 mm | 620 mm | 631 mm | 641 mm | 648 mm |
| Rake | 50 mm | 51 mm | 50 mm | 49 mm | 49 mm |
| Trail | 74 mm | 71 mm | 68 mm | 64 mm | 58 mm |
| Stack | 543 mm | 568 mm | 594 mm | 620 mm | 648 mm |
| Reach | 383 mm | 385 mm | 393 mm | 400 mm | 410 mm |
| Top Tube Length | 528 mm | 543 mm | 563 mm | 583 mm | 613 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1047 mm | 1054 mm | 1065 mm | 1075 mm | 1082 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 708 mm | 751 mm | 787 mm | 812 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
FX Sport 4 completes the Trek Fx model. There are 129 bikes that carry this model name. You can easily view all of the Trek Fx bikes models from 2024, here.
Model range prices
Trek FX 1 Stagger 2024 is the cheapest bike model and costs 499$. Trek FX Sport 6 2024 is the most expensive one and costs 2799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1905$. Comparing this to the average Fitness bike price, we see that the price is 190.4% more expensive.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 10.46 kg (23.06 lbs), the FX Sport 4 model is a bit lighter than average. In other words, this model is 7.46% lighter than the average Fitness bike.
FX Sport 4 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The FX Sport 4 2024 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

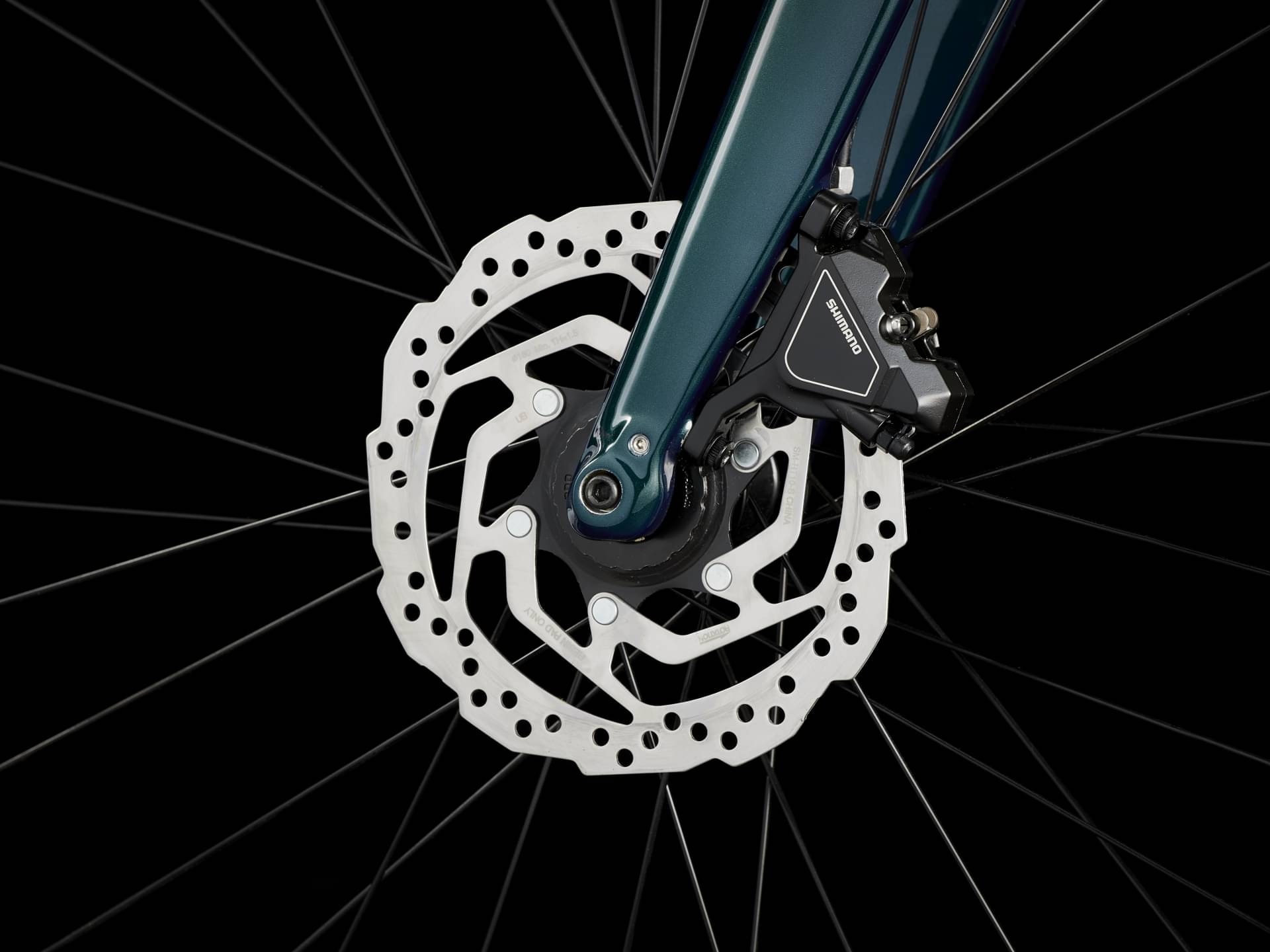

Brakes
Nothing is more important on a bike than its ability to brake properly. Trek FX Sport 4 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
FX Sport 4 comes in 5 sizes, that range from 147 cm – 197 cm (4.82 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
