Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, E2, press-fit BB, fender & rack mounts
Suspension Fork
Bontrager Race X Lite Cross, E2
Drivetrain
Rear Derailleur
SRAM Apex
Front Derailleur
SRAM Apex, 34.9mm clamp
Shift Levers
SRAM Apex, 10 speed
Cassette
SRAM PG-1050 11-32, 10 speed
Crank
SRAM Apex, 46/38
Pedals
n/a
Wheels
Rims
Alloy hubs; Bontrager Approved alloy rims
Tires
Bontrager CX0, 700x38c
Brakes
Brakes
Avid Shorty 4 cantilever brakes
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Anatomic-C, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager Race Lite Alloy, infinite tilt adjustment, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

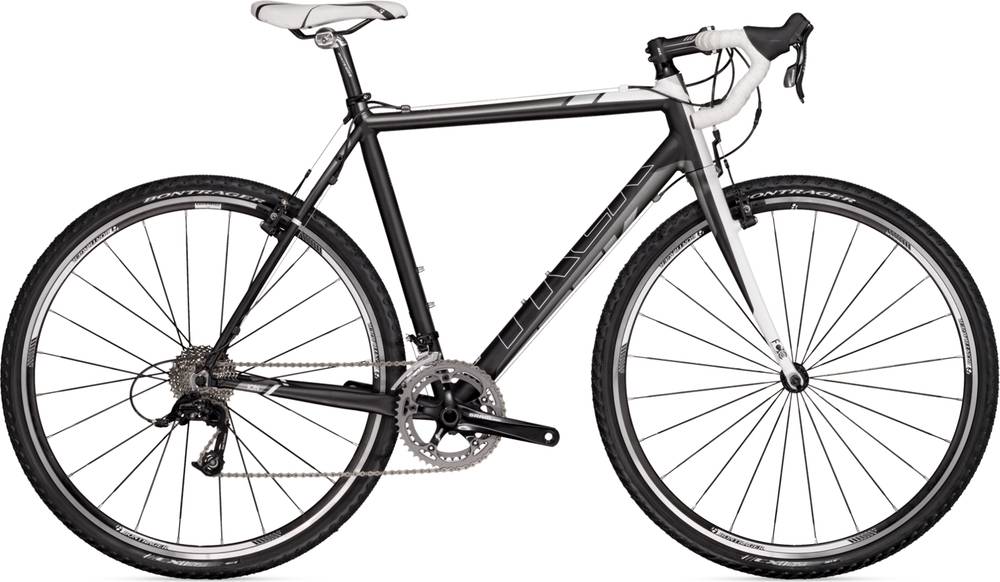

Ion CX is a Trek Ion model. Trek released 16 bikes variations of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Ion CX components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Ion CX 2012 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Ion CX is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
