Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum main frame, carbon seatstays & chainstays, E2 integrated head tube, BB86 integrated bottom bracket
Suspension Fork
Bontrager carbon FCC, carbon E2 1-1/8" - 1.5" steerer, wide stance carbon legs, accepts 25mm hub endcaps, integrated SpeedTrap computer mount
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105, 10 speed
Cassette
Shimano 105 12-27, 10 speed
Crank
Shimano FR600, 50/34
Bottom Bracket
BB86/BB92, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race FCC, wider and taller flanges, 25mm endcaps, outboard J-bend spokes
Tires
Bontrager R2, 700x23c
Brakes
Brakes
Tektro R540 brakes, cartridge pads
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Anatomic-C
Headset
Cane Creek IS-2 for E2 Integrated
Seat
Saddle
Bontrager Affinity 2
Seatpost
Bontrager Carbon, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

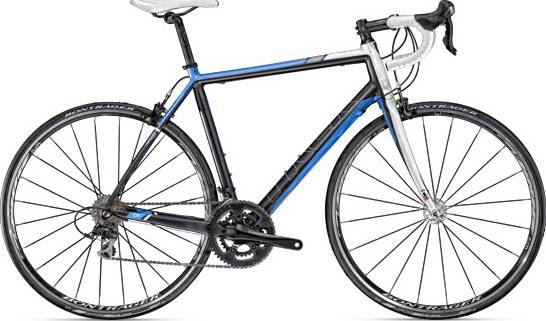

Ion Pro is a Trek Ion model. There are 16 bikes that carry this model name. Take a sneak peek at all Trek Ion bikes models from 2010, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Ion Pro components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Ion Pro bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Ion Pro is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
