Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum main frame, carbon seatstays & chainstays, E2 integrated head tube, BB86 integrated bottom bracket
Suspension Fork
Bontrager carbon FCC, carbon E2 1-1/8" - 1.5" steerer, wide stance carbon legs, accepts 25mm hub endcaps, integrated SpeedTrap computer mount
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105, 10 speed
Cassette
Shimano 105 12-27, 10 speed
Crank
Shimano FR600, 50/34
Bottom Bracket
BB86/BB92, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race FCC, wider and taller flanges, 25mm endcaps, outboard J-bend spokes
Tires
Bontrager R2, 700x23c
Brakes
Brakes
Tektro R540 brakes, cartridge pads
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Anatomic-C
Headset
Cane Creek IS-2 for E2 Integrated
Seat
Saddle
Bontrager Affinity 2 WSD
Seatpost
Bontrager Carbon, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

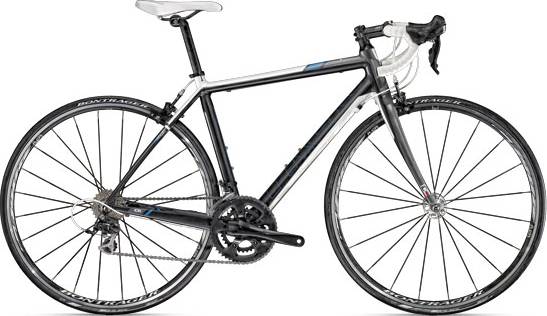

Ion Pro WSD belongs to the Trek Ion model. Trek released 16 bikes variations of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Ion Pro WSD components
Fork material
Ion Pro WSD has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Ion Pro WSD model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ion Pro WSD has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
