Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum main frame, carbon seatstays & chainstays, E2 integrated head tube, BB86 integrated bottom bracket
Suspension Fork
Bontrager carbon FCC, carbon E2 1-1/8" - 1.5" steerer, wide stance carbon legs, accepts 25mm hub endcaps, integrated SpeedTrap computer mount
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, 9-speed
Cassette
SRAM PG-950 11-26, 9 speed
Crank
FSA Gossamer MegaExo, 50/34
Bottom Bracket
BB86/BB92, press-fit
Pedals
n/a
Wheels
Rims
Bontrager SSR
Tires
Bontrager R2, 700x23c
Brakes
Brakes
Promax RC466A brakes, cartridge pads
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Anatomic-C
Headset
Cane Creek IS-2 for E2 Integrated
Seat
Saddle
Bontrager Affinity 1
Seatpost
Bontrager Carbon, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

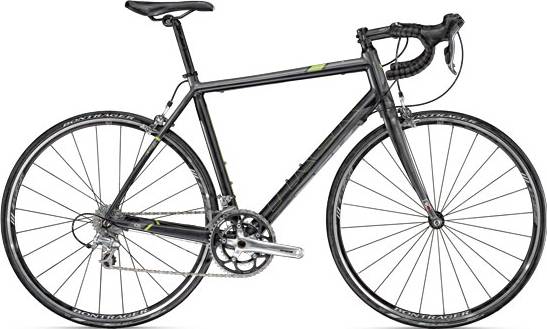

Ion Super is part of the Trek Ion model. There are 16 bikes that carry this model name. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Ion Super components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Ion Super are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Ion Super has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
