Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum main frame, carbon seatstays & chainstays, E2 integrated head tube, BB86 integrated bottom bracket
Suspension Fork
Bontrager carbon FCC, carbon E2 1-1/8" - 1.5" steerer, wide stance carbon legs, accepts 25mm hub endcaps, integrated SpeedTrap computer mount
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, 9 speed
Cassette
SRAM PG-950 11-26, 9 speed
Crank
FSA Gossamer MegaExo, 50/39/30
Bottom Bracket
BB86/BB92, press-fit
Pedals
n/a
Wheels
Rims
Bontrager SSR
Tires
Bontrager R2, 700x23c
Brakes
Brakes
Promax RC466A brakes, cartridge pads
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Anatomic-C
Headset
Cane Creek IS-2 for E2 Integrated
Seat
Saddle
Bontrager Affinity 1 WSD
Seatpost
Bontrager Carbon, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

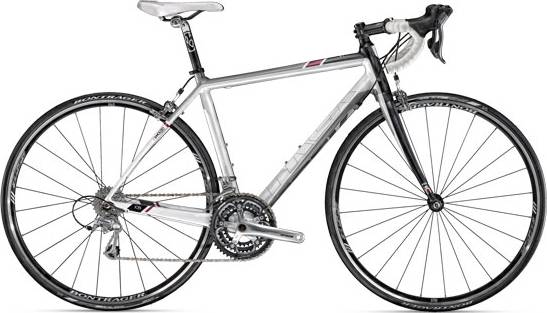

Ion Super WSD belongs to the Trek Ion model. Trek launched 16 bikes of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Ion Super WSD components
Fork material
Ion Super WSD has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Trek Ion Super WSD 2010, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ion Super WSD comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
