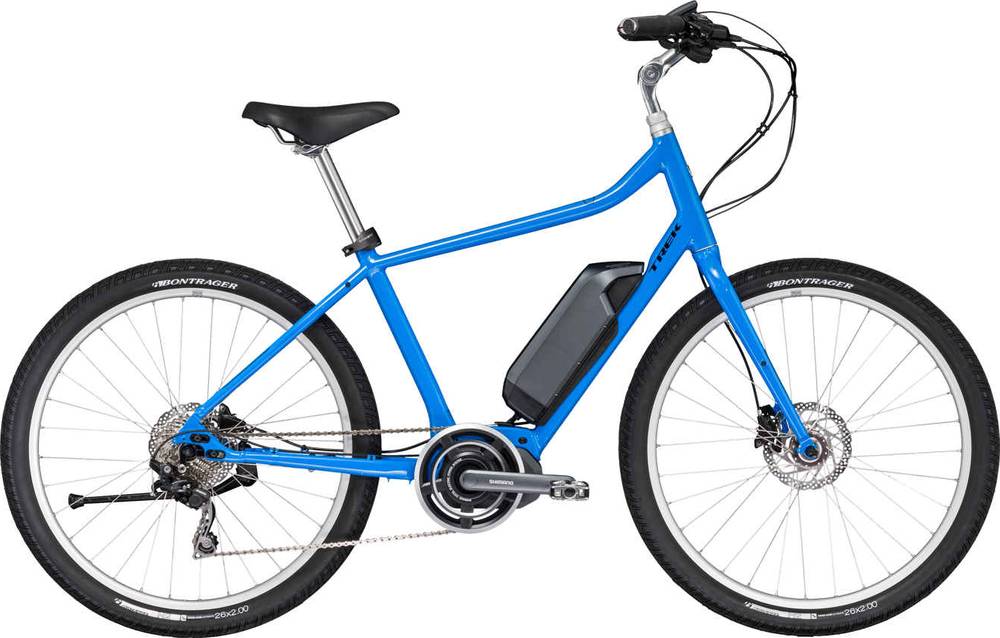

Trek Lift+ Men’s 2018
2018 E-bike
Estimate price |
2,799$
Weight | 20.32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 50Nm hub-drive -
Battery Shimano STEPS, 418wH, frame mount -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for Shimano STEPS system, rack & fender mounts, internal cable routing
Suspension Fork
Lift+, alloy
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano Tiagra, 11-32, 10 speed
Crank
Shimano STEPS, 44T w/chainguard
Bottom Bracket
Shimano STEPS drive motor unit
Chain
KMC X10e
Pedals
VP alloy body w/Kraton inserts
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager AT-850 32-hole double-walled alloy
Tires
Bontrager H2 Hard-Case Ultimate, 26x2.00?
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Alloy, adjustable rise, quill
Handlebar
Bontrager Satellite, semi-swept-back, 25.4mm, 50mm rise
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8?, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager padded
Seatpost
Bontrager SSR, 31.6mm, 12mm offset
Motor & Battery
Motor
Shimano STEPS, 250 watt, 50Nm, 20 mph
Battery
Shimano STEPS, 418wH, frame mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.72 mm | 1.81 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm |
| Front Center | 600 mm | 608 mm | 633 mm |
| Rake | 50 mm | 51 mm | 50 mm |
| Trail | 73 mm | 73 mm | 73 mm |
| Stack | 601 mm | 601 mm | 648 mm |
| Reach | 343 mm | 350 mm | 358 mm |
| Top Tube Length | 615 mm | 623 mm | 653 mm |
| Seat Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Seat Tube Length | 420 mm | 457 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 210 mm | 210 mm | 260 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1093 mm | 1101 mm | 1126 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm |
| Standover Height | 698 mm | 720 mm | 783 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Lift+ Men’s is a Trek E Liftplus model. Trek released 3 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek Lift+ Men’s 2018 is the most economical model, with a starting price of 2799$. Trek Lift+ Lowstep 2018 on the other hand costs 2799$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2799$. Comparing the average cost of a General Urban e-bike to this one, you will see that Lift+ Men’s price is 33.41% more expensive.
General Urban e-bikes average weight
General Urban e-bikes weigh an average of 24.08 kg (53.09 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Lift+ Men’s has a weight of 20.32 kg (44.8 lbs). In other words, this model is 18.5% lighter than the average General Urban e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Lift+ Men’s components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Lift+ Men’s e-bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Lift+ Men’s is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trek Lift+ Men’s e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
