Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 125mm -
Fork RockShox
-
Groupset Deore, Bontrager -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZR 9000 Alloy™ in a long-travel, full-suspension design that quickly adjusts to match the terrain. Lighter than titanium, stronger than steel.
Suspension Fork
RockShox Psylo C, U-Turn, HC2 damping, travel gradients, 80/125mm travel
Drivetrain
Rear Derailleur
Shimano Deore LX
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
SRAM 7.0 11-34, 9spd
Crank
Bontrager Race 44/32/22
Pedals
Shimano M515, clipless
Wheels
Rims
Bontrager Select Disc: Machined rims welded for strength; OSB rear rim provides good stiffness for any size rider; Hi-Lo ATB rear hub design w/excellent spoke bracing angles for improved lateral wheel rigidity; Cro-Moly skewers; 780 g, 24h front/1045 g, 2
Tires
,
Brakes
Brakes
w/ levers
Cockpit
Stem
Bontrager Sport, 15Ëš
Handlebar
Bontrager Crowbar Sport
Headset
AHS 1-1/8" semi cartridge, sealed
Seat
Saddle
Bontrager FS 2000
Seatpost
Bontrager Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
Model Overview

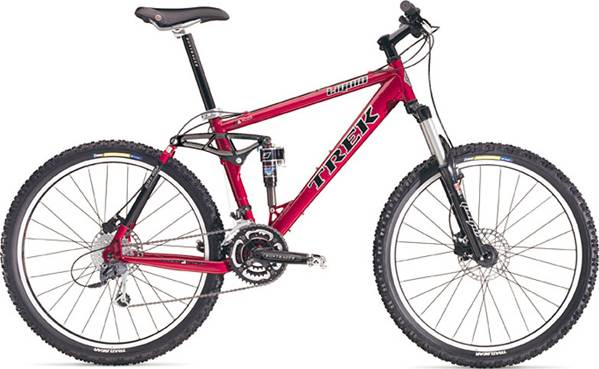

Liquid 10 is a Trek Liquid model. 10 bikes variations carry this model name so far. Take a sneak peek at all Trek Liquid bikes models from 2003, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
Trek Liquid 10 2003 bike is equipped with the RockShox fork, and has 125mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Liquid 10 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Liquid 10 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
