Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series OCLV Carbon, E2, fender & rack mounts
Suspension Fork
Bontrager Race w/E2 aluminum steerer, carbon legs, SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano Tiagra, 34.9mm clamp
Shift Levers
Shimano 105 STI, 10 speed
Cassette
Shimano Tiagra 12-30, 10 speed
Crank
SRAM S350, 50/34 (compact)
Pedals
n/a
Wheels
Rims
Alloy hubs; Bontrager Approved alloy rims
Tires
Bontrager R1, 700x23c
Brakes
Brakes
Alloy dual-pivot brakes w/Shimano 105 STI levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 1, steel rails
Seatpost
Bontrager Race Lite Alloy, infinite tilt adjustment, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

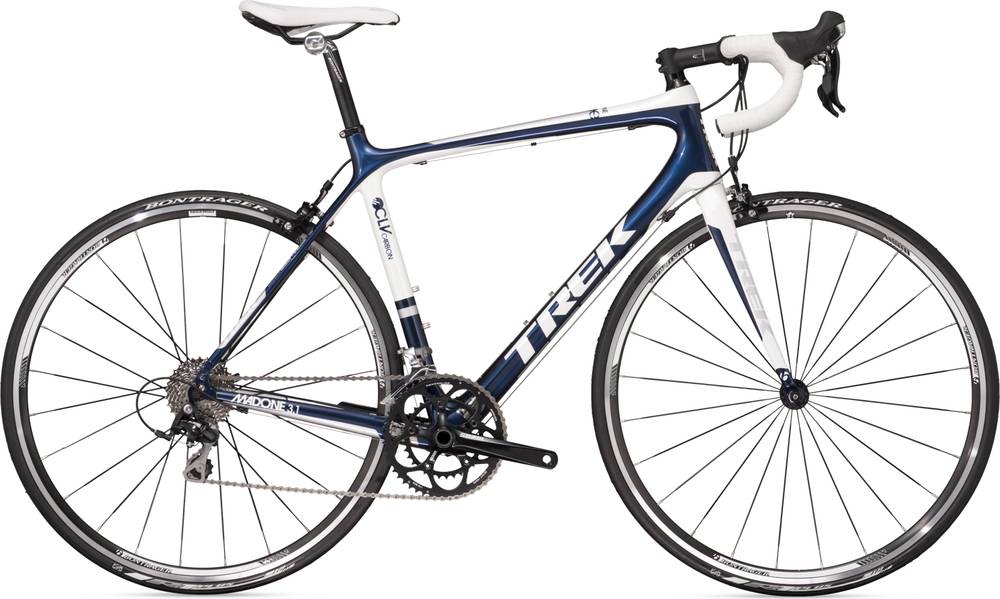

Madone 3.1 H2 (Compact) is a Trek Madone model. Trek released 360 bikes variations of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Madone 3.1 H2 (Compact) components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Trek Madone 3.1 H2 (Compact) 2012, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 3.1 H2 (Compact) has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
