Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series OCLV Carbon, E2
Suspension Fork
Trek carbon road, E2, SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano 105 STI, 10 speed
Cassette
Shimano Tiagra 12-30, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Wheels
Rims
Alloy hubs w/Bontrager Approved alloy rims
Tires
Bontrager R1 Hard-Case Lite, 700x23c
Brakes
Brakes
Alloy dual-pivot
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race VR-S, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 1 WSD
Seatpost
Bontrager Approved, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

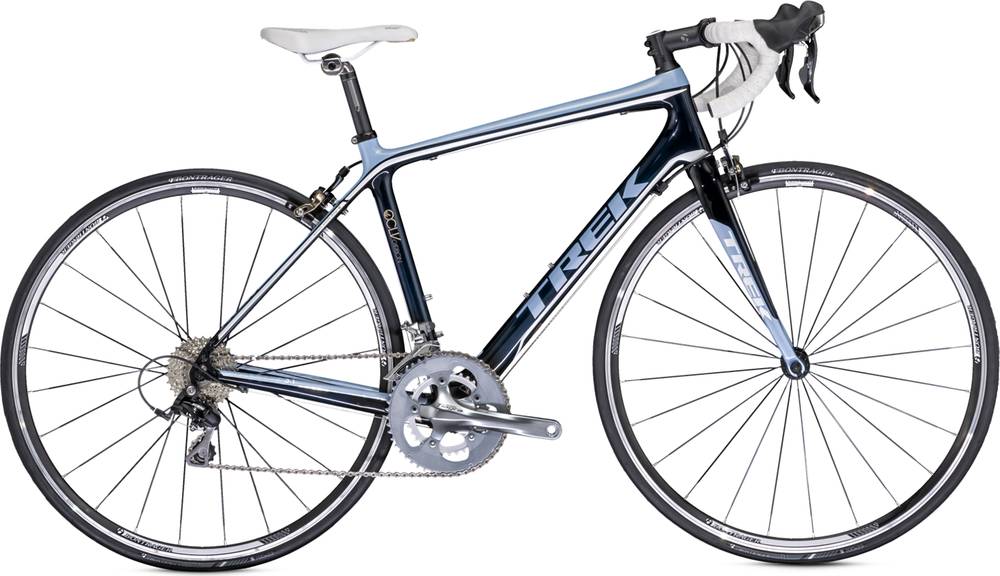

Madone 3.1 WSD Compact belongs to the Trek Madone model. Trek released 360 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Trek Madone 3.1 WSD Compact 2014, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 3.1 WSD Compact has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
