Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series OCLV Carbon, E2
Suspension Fork
Trek carbon road, E2, SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano 105, 34.9mm clamp
Shift Levers
Shimano Ultegra STI, 10 speed
Cassette
Shimano 105 11-28, 10 speed
Crank
Shimano Ultegra, 50/34 (compact)
Wheels
Rims
Alloy hubs w/Bontrager Approved alloy rims
Tires
Bontrager R1, 700x23c
Brakes
Brakes
Shimano 105 brakes w/Shimano Ultegra STI levers
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 2, hollow chromoly rails
Seatpost
Bontrager Race Lite, infinite tilt adjustment, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

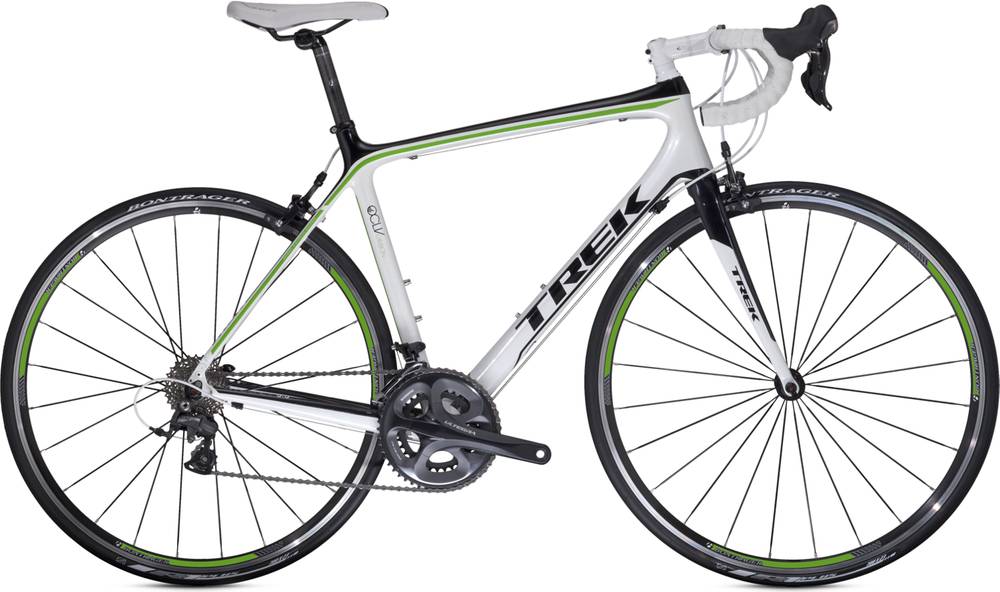

Madone 3.5 H2 (Compact) is part of the Trek Madone model. 360 bikes variations carry this model name so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Madone 3.5 H2 (Compact) bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 3.5 H2 (Compact) has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Trek Madone 3.5 H2 (Compact) bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
