Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCT Carbon
Suspension Fork
Bontrager Race Lite, carbon w/E2 aluminum steerer; SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 STI, 10 speed
Cassette
Shimano 105 11-25 or 12-27 (triple), 10 speed
Crank
Shimano 105 50/34 or 50/39/30
Pedals
n/a
Wheels
Rims
Bontrager Race
Tires
Bontrager Race Lite, 700x23c
Brakes
Brakes
Alloy dual pivot w/Shimano 105 STI levers
Cockpit
Stem
Bontrager Select, 7 degree, 31.8mm
Handlebar
Bontrager Select VR, 31.8mm
Headset
Aheadset w/cartridge bearings, integrated, sealed, alloy
Seat
Saddle
Bontrager Race
Seatpost
Bontrager Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

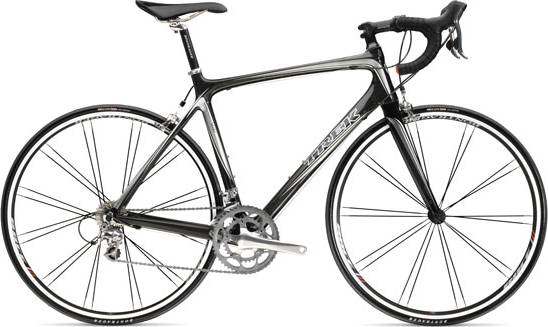

Madone 4.5 is part of the Trek Madone model. 360 bikes variations carry this model name so far. Check out the entire range from 2008 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Madone 4.5 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Madone 4.5 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
