Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Madone KVF carbon, E2
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra STI, 11 speed
Cassette
Shimano Ultegra 11-28, 11 speed
Crank
FSA Gossamer, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race Tubeless Ready
Tires
Bontrager R2 Hard-Case Lite, 700x23c
Brakes
Brakes
Alloy dual-pivot
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 2, chromoly rails
Seatpost
Bontrager Carbon, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

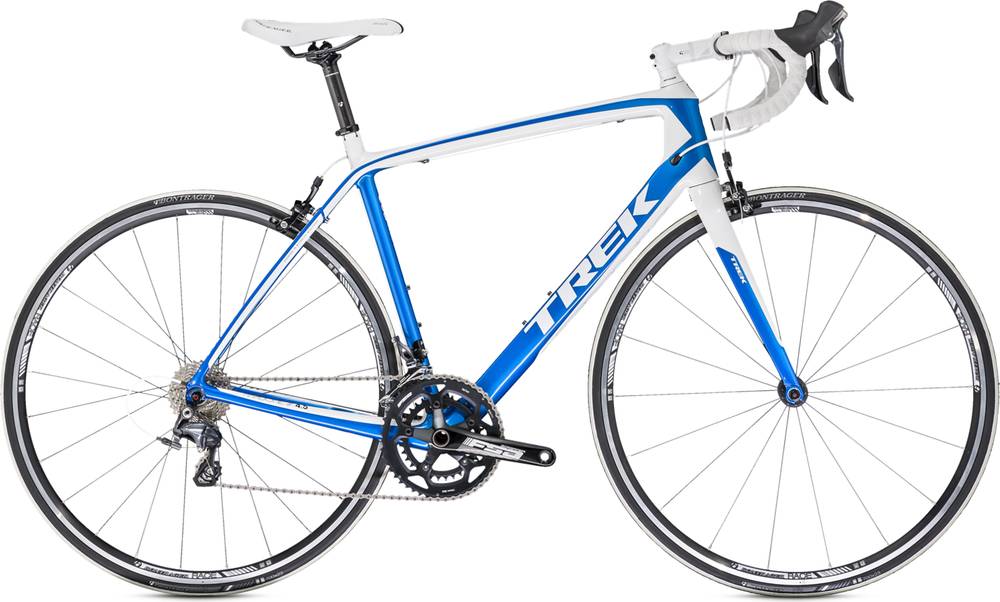

Madone 4.5 H2 Compact belongs to the Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2014, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Trek Madone 4.5 H2 Compact 2014, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Trek Madone 4.5 H2 Compact bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
