Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCT Carbon
Suspension Fork
Bontrager Race Lite, carbon w/E2 aluminum steerer; SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano ST-R700 STI, adjustable reach, 10 speed
Cassette
Shimano 105 11-25 or 12-27 (triple), 10 speed
Crank
Shimano Ultegra 50/34 or 52/39/30
Pedals
n/a
Wheels
Rims
Bontrager Race
Tires
Bontrager Race X Lite, 700x23c, folding
Brakes
Brakes
Shimano Ultegra w/Shimano Ultegra STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager FIT VR, 31.8mm
Headset
Aheadset w/cartridge bearings, integrated, sealed, alloy
Seat
Saddle
Bontrager Race FIT LUX
Seatpost
Bontrager Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |

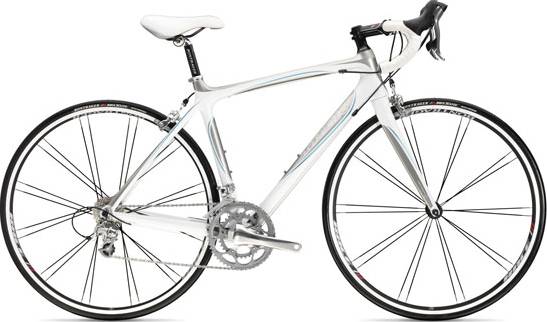

Model Overview
Madone 4.7 WSD is part of the Trek Madone model. 360 bikes variations carry this model name so far. Take a sneak peek at all Trek Madone bikes models from 2008, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Madone 4.7 WSD components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Madone 4.7 WSD are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 4.7 WSD is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
