Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Madone KVF carbon, E2
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra STI Di2, 11 speed
Cassette
Shimano Ultegra 11-28, 11 speed
Crank
FSA Gossamer, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Alloy hubs w/Bontrager Approved alloy rims
Tires
Bontrager R1 Hard-Case Lite, 700x23c
Brakes
Brakes
Alloy dual-pivot
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 2, chromoly rails
Seatpost
Bontrager Carbon, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

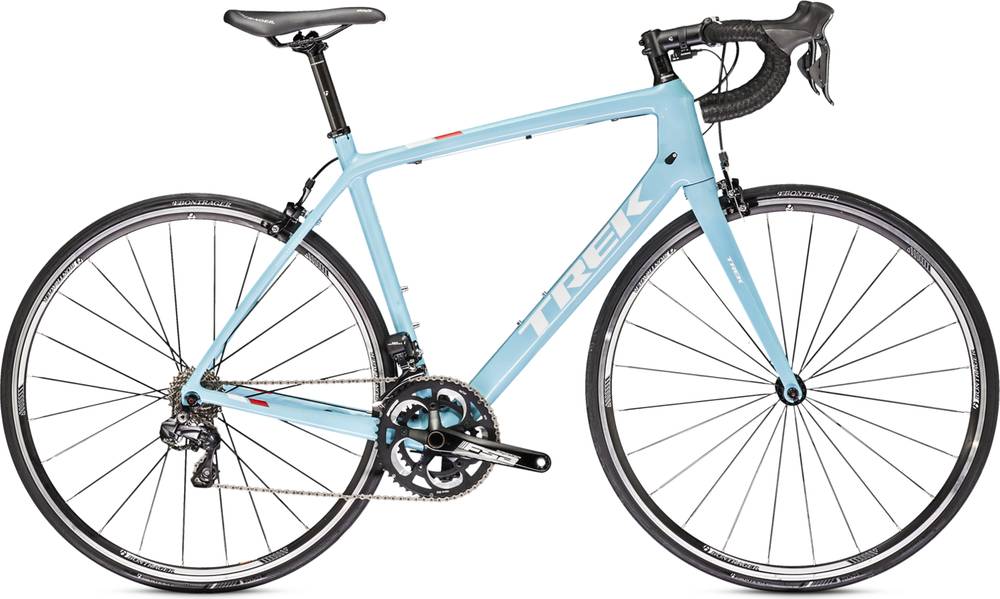

Madone 4.9 H2 Compact is part of the Trek Madone model. Trek launched 360 bikes of this model so far. Take a sneak peek at all Trek Madone bikes models from 2014, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Madone 4.9 H2 Compact 2014 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
