Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV White Carbon
Suspension Fork
Bontrager Race Lite, carbon w/E2 aluminum steerer; SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Ultegra SL
Front Derailleur
Shimano Ultegra SL
Shift Levers
Shimano Ultegra SL STI, 10 speed
Cassette
Shimano 105 11-25 or 12-27 (triple), 10 speed
Crank
Shimano Ultegra SL 50/34 or 52/39/30
Pedals
n/a
Wheels
Rims
Bontrager Race
Tires
Bontrager Race Lite, 700x23c, folding
Brakes
Brakes
Shimano Ultegra SL w/Shimano Ultegra SL STI levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race VR, 31.8mm
Headset
Aheadset w/cartridge bearings, integrated, sealed, alloy
Seat
Saddle
Bontrager Race
Seatpost
Carbon seat mast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

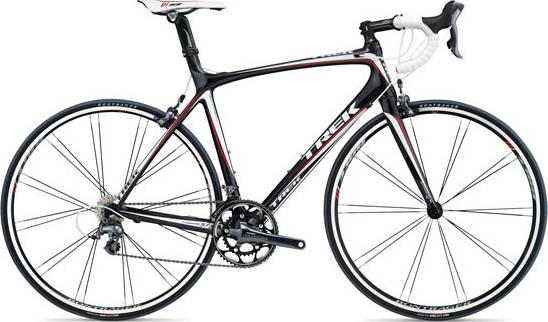

Madone 5.1 belongs to the Trek Madone model. 360 bikes variations carry this model name so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Madone 5.1 2009 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 5.1 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Madone 5.1 comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
