Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5 Series TCT Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race X Lite w/E2 aluminum steerer, carbon crown and legs
Drivetrain
Rear Derailleur
SRAM Rival
Front Derailleur
SRAM Rival
Shift Levers
SRAM Rival, 10 speed
Cassette
SRAM 1050 11-28, 10 speed
Crank
SRAM Rival, 50/34
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race
Tires
Bontrager R2, 700x23c
Brakes
Brakes
SRAM Rival brakes w/SRAM Rival levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Blade VR, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 2, hollow chromoly rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

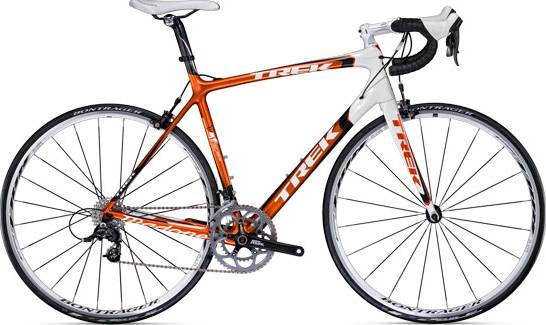

Madone 5.1 is part of the Trek Madone model. There are 360 bikes that carry this model name. You can easily view all of the Trek Madone bikes models from 2011, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
Madone 5.1 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Madone 5.1 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Trek Madone 5.1 bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
