Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Black Carbon
Suspension Fork
Bontrager Race X Lite, carbon w/E2 aluminum steerer
Drivetrain
Rear Derailleur
Shimano Ultegra SL
Front Derailleur
Shimano Ultegra SL
Shift Levers
Shimano Ultegra SL STI, 10 speed
Cassette
Shimano 105 11-25, 10 speed
Crank
Shimano Ultegra SL 50/34
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager Race X Lite, 700x23c, folding
Brakes
Brakes
Shimano Ultegra SL w/Shimano Ultegra SL STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Lite VR, 31.8mm
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy; 1.125" top, 1.5" bottom
Seat
Saddle
Bontrager Race Lite
Seatpost
Carbon seat mast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

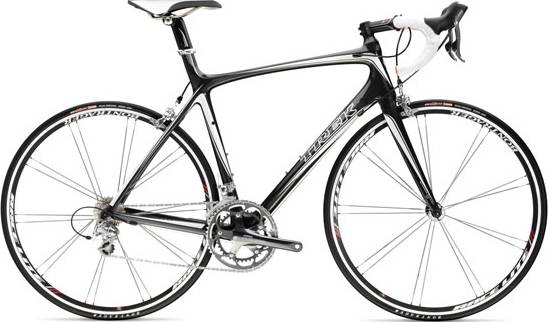

Madone 5.2 is a Trek Madone model. There are 360 bikes that carry this model name. You can easily view all of the Trek Madone bikes models from 2008, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Madone 5.2 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
