Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race X Lite w/E2 carbon steerer, carbon crown & legs
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra STI, 10 speed
Cassette
Shimano 105 11-28, 10 speed
Crank
Shimano Ultegra, 52/39/30 (triple)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race
Tires
Bontrager R3, 700x23c
Brakes
Brakes
Shimano Ultegra brakes w/Shimano Ultegra STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Blade VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 3, hollow chromoly rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

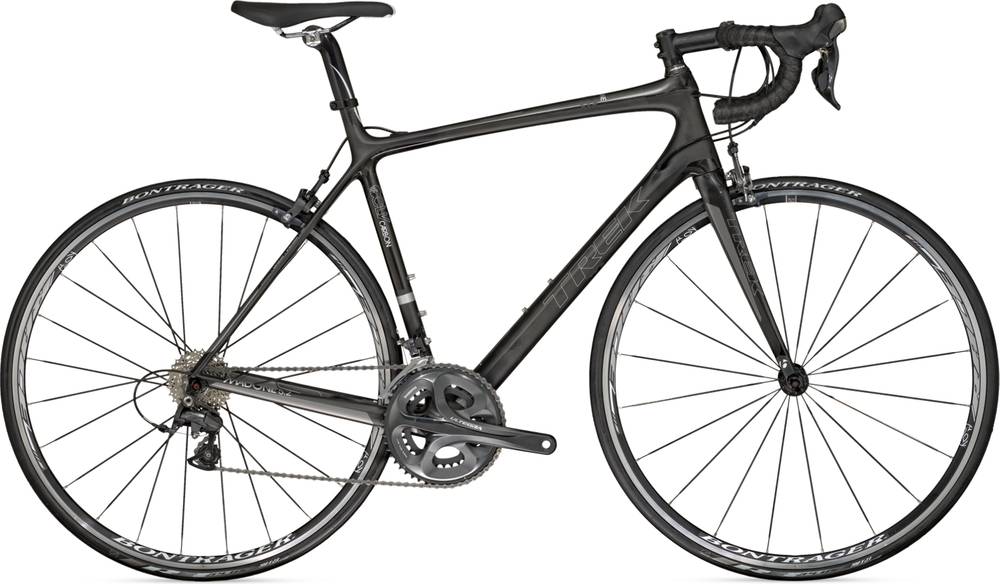

Madone 5.2 H2 (Triple) UK is a Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2012, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone 5.2 H2 (Triple) UK components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Madone 5.2 H2 (Triple) UK bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 5.2 H2 (Triple) UK is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
