Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Black Carbon
Suspension Fork
Bontrager Race X Lite w/E2 aluminum steerer, carbon crown and legs
Drivetrain
Rear Derailleur
Shimano Ultegra SL
Front Derailleur
Shimano Ultegra SL
Shift Levers
Shimano Ultegra SL STI, 10 speed
Cassette
Shimano 105 11-25, 10 speed
Crank
Shimano Ultegra SL 53/39
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager Race X Lite, 700x23c, folding
Brakes
Brakes
Shimano Ultegra SL w/Shimano Ultegra SL STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Lite VR, 31.8mm
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy; 1 1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Race Lite
Seatpost
Carbon seat mast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |

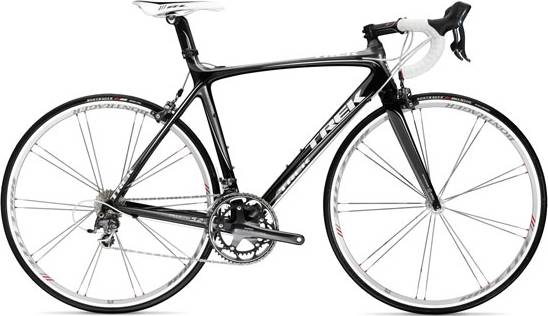

Model Overview
Madone 5.2 Pro is a Trek Madone model. Trek launched 360 bikes of this model so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Madone 5.2 Pro components
Fork material
Madone 5.2 Pro has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Madone 5.2 Pro model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 5.2 Pro has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Madone 5.2 Pro comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
