Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Black Carbon
Suspension Fork
Bontrager Race X Lite w/E2 aluminum steerer, carbon crown and legs
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force
Shift Levers
SRAM Force, 10 speed
Cassette
SRAM PG-1070 11-26 or 11-28 (compact), 10 speed
Crank
SRAM Force 53/39 or 50/34
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager Race X Lite AC, 700x23c
Brakes
Brakes
SRAM Force w/SRAM Force levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Blade VR, 31.8mm
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy; 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager inForm Race Lite
Seatpost
Carbon seatmast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

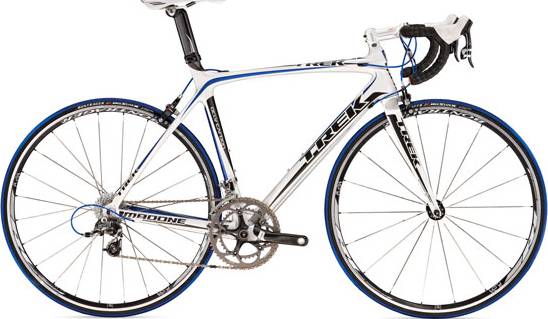

Madone 5.5 is part of the Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
Madone 5.5 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Madone 5.5 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
