Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race X Lite w/E2 carbon steerer, carbon crown & legs
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force, braze-on
Shift Levers
SRAM Force, 10 speed
Cassette
SRAM PC-1070 11-28, 10 speed
Crank
SRAM Force, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager R3, 700x23c
Brakes
Brakes
SRAM Force brakes w/SRAM Force levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Blade VR-C, carbon, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 3, hollow chromoly rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

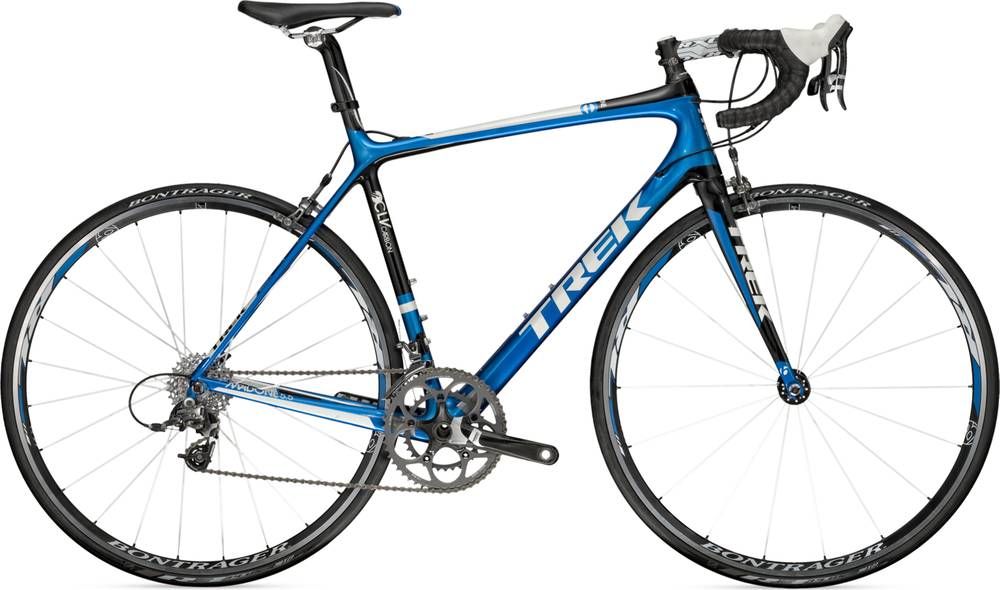

Madone 5.5 H2 (Compact) belongs to the Trek Madone model. Trek launched 360 bikes of this model so far. Take a sneak peek at all Trek Madone bikes models from 2012, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Madone 5.5 H2 (Compact) are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 5.5 H2 (Compact) has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Madone 5.5 H2 (Compact) comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
