Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race X Lite w/E2 carbon steerer, carbon crown & legs
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force, braze-on
Shift Levers
SRAM Force, 10 speed
Cassette
SRAM PC-1070 11-28, 10 speed
Crank
SRAM Force, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager R3, 700x23c
Brakes
Brakes
SRAM Force brakes w/SRAM Force levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Blade VR-C, carbon, 31.8mm
Headset
Integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity 3, hollow chromoly rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |

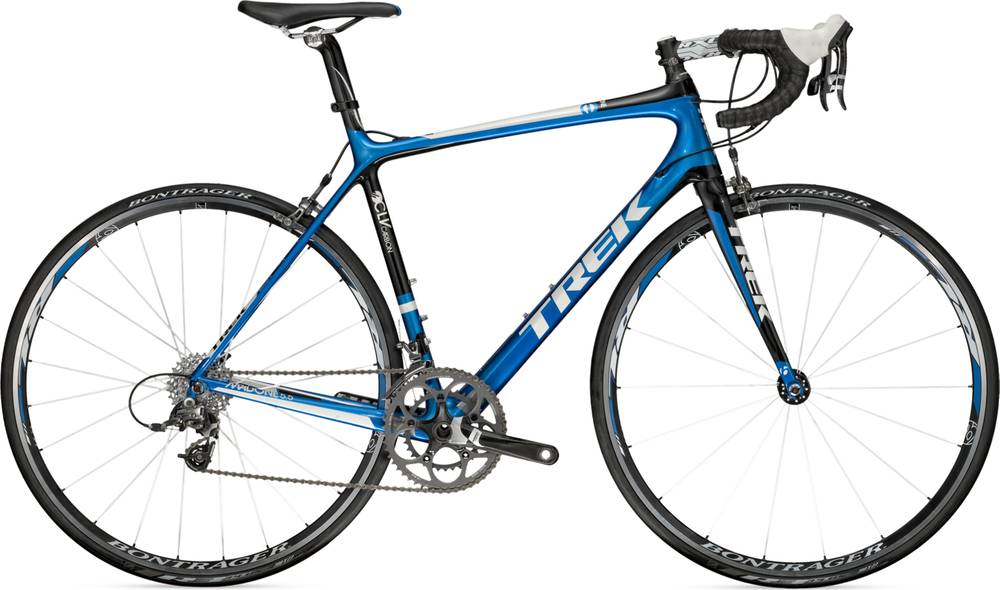

Model Overview
Madone 5.5 H2 (Compact) E is a Trek Madone model. 360 bikes variations carry this model name so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
Madone 5.5 H2 (Compact) E has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Madone 5.5 H2 (Compact) E model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 5.5 H2 (Compact) E comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Trek Madone 5.5 H2 (Compact) E bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
