Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Black Carbon
Suspension Fork
Bontrager Race X Lite w/E2 aluminum steerer, carbon crown and legs
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra STI, 10 speed
Cassette
Shimano Ultegra 11-25 or 11-28 (compact), 10 speed
Crank
Shimano Dura-Ace 53/39 or 50/34
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager Race X Lite AC, 700x23c
Brakes
Brakes
Shimano Ultegra w/Shimano Ultegra STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31,8mm
Handlebar
Bontrager Blade VR, 31.8mm
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy; 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager inForm Race Lite
Seatpost
Carbon seatmast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

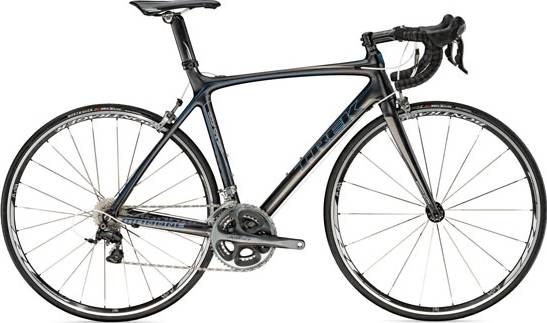

Madone 5.9 is part of the Trek Madone model. There are 360 bikes that carry this model name. You can easily view all of the Trek Madone bikes models from 2010, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Madone 5.9 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 5.9 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
