Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2 asymmetric steerer, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra STI, 11 speed
Cassette
Shimano Ultegra 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race Lite Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Aero, VR-CF, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8 top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race Lite WSD, hollow titanium rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

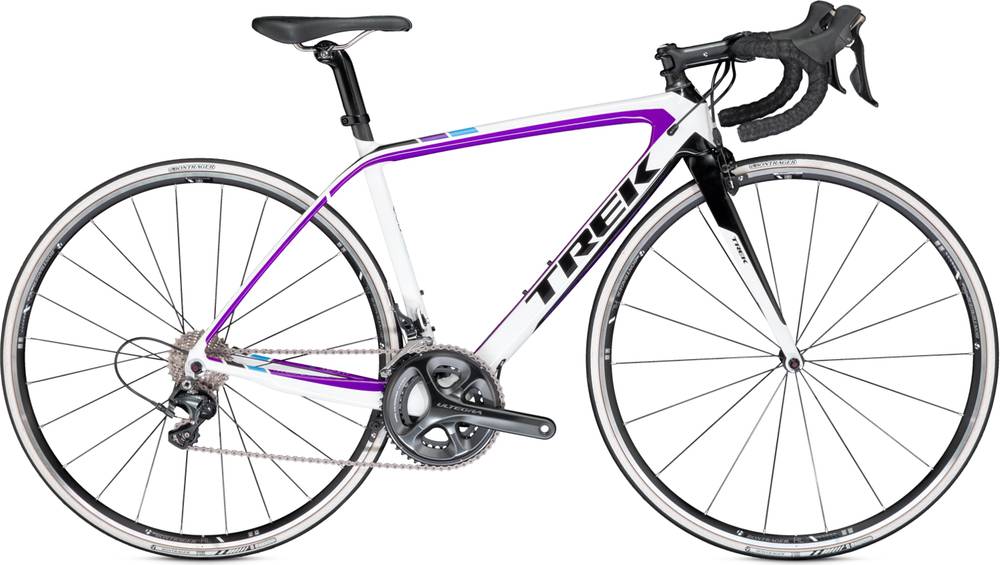

Madone 6.2 WSD Compact is a Trek Madone model. 360 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Madone 6.2 WSD Compact components
Fork material
Madone 6.2 WSD Compact has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Madone 6.2 WSD Compact bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone 6.2 WSD Compact has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
