Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Red Carbon, DuoTrap compatible
Suspension Fork
Bontrager Race XXX Lite w/E2 full carbon steerer
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace
Shift Levers
Shimano Dura-Ace STI, 10 speed
Cassette
Shimano Dura-Ace 11-28, 10 speed
Crank
Shimano Dura-Ace 53/39 or 50/34
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager Race X Lite, 700x23c
Brakes
Brakes
Shimano Dura-Ace w/Shimano Dura-Ace STI levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Blade Carbon VR, 31.8mm
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy; 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager inForm Race X Lite
Seatpost
Carbon seatmast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

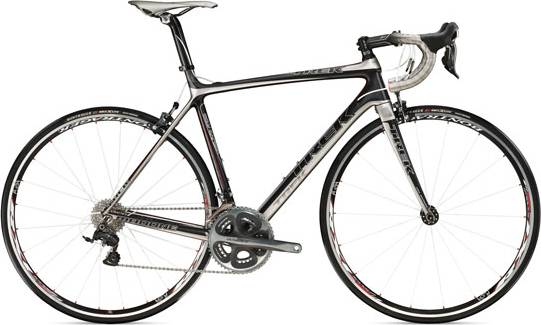

Madone 6.5 completes the Trek Madone model. There are 360 bikes that carry this model name. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Madone 6.5 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone 6.5 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
