Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV2 Red Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 asymmetrical steerer (64cm: Race XXX Lite, carbon legs w/E2 alloy steerer)
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force
Shift Levers
SRAM Force, 10 speed
Cassette
SRAM PC-1070 11-26 (double) or 11-28 (compact), 10 speed
Crank
SRAM Force, 53/39 (double) or 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager R3, 700x23c
Brakes
Brakes
SRAM Force brakes w/SRAM Force levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite VR-C, carbon, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race Lite, hollow stainless steel rails, 146mm width
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 62T | 64cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

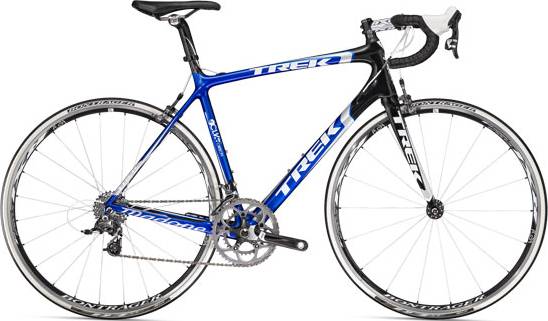

Madone 6.5 belongs to the Trek Madone model. Trek launched 360 bikes of this model so far. You can easily view all of the Trek Madone bikes models from 2011, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone 6.5 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Trek Madone 6.5 2011, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 6.5 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
