Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, made in the USA, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra STI Di2, 10 speed
Cassette
Shimano Ultegra 11-28, 10 speed
Crank
Shimano Ultegra, 53/39 (double)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race X Lite, Tubeless Ready
Tires
Bontrager R3, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated brakes w/Shimano Ultegra STI Di2 levers
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Aero, alloy, VR-CF, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race Lite, titanium rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

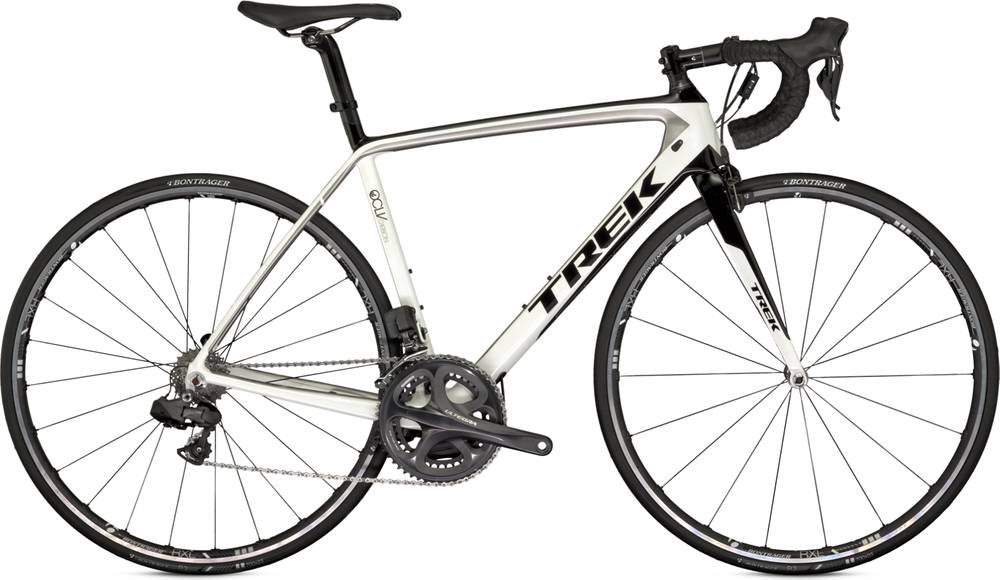

Madone 6.5 H1 (Double) is part of the Trek Madone model. 360 bikes variations carry this model name so far. You can easily view all of the Trek Madone bikes models from 2013, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone 6.5 H1 (Double) components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Madone 6.5 H1 (Double) bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 6.5 H1 (Double) comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Trek Madone 6.5 H1 (Double) bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
