Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, made in the USA, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra STI Di2, 10 speed
Cassette
Shimano Ultegra 11-28, 10 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race X Lite, Tubeless Ready
Tires
Bontrager R3, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated brakes w/Shimano Ultegra STI Di2 levers
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Aero, alloy, VR-CF, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race Lite, titanium rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

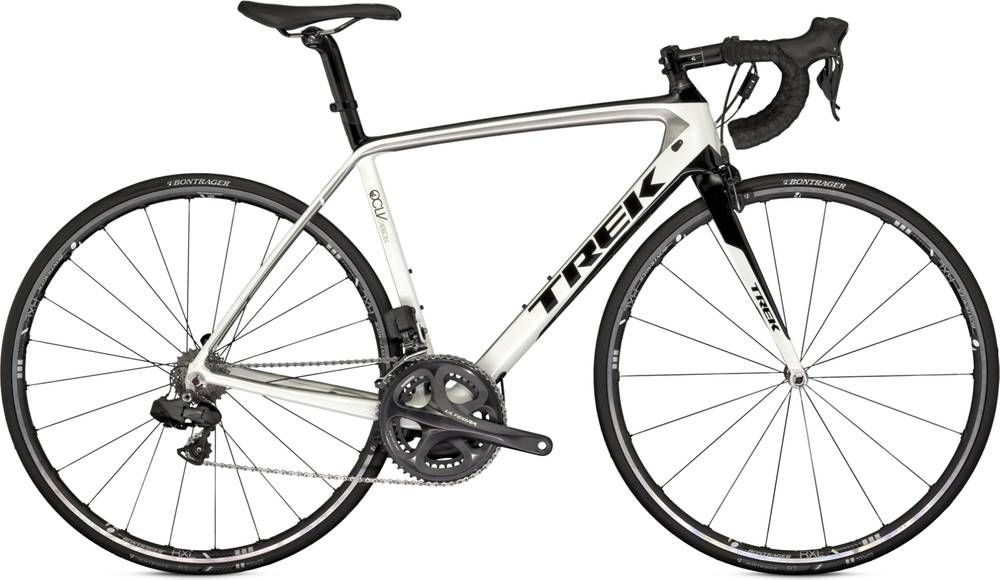

Madone 6.5 H2 (Compact) is a Trek Madone model. Trek released 360 bikes variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Madone 6.5 H2 (Compact) components
Fork material
Madone 6.5 H2 (Compact) has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Madone 6.5 H2 (Compact) bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 6.5 H2 (Compact) comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
