Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Red Carbon
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 carbon steerer
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace
Shift Levers
Shimano Dura-Ace STI, 10 speed
Cassette
Shimano Dura-Ace 12-25, 10 speed
Crank
Shimano Dura-Ace 53/39
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager Race X Lite, 700x23c, folding
Brakes
Brakes
Shimano Dura-Ace w/Shimano Dura-Ace STI levers
Cockpit
Stem
Bontrager Race XXX Lite Carbon, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Blade Carbon, 31.8mm
Headset
Cane Creek IS-8 Integrated w/cartridge bearings, sealed, alloy; 1.125" top, 1.5" bottom
Seat
Saddle
Bontrager Race X Lite
Seatpost
Carbon seat mast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

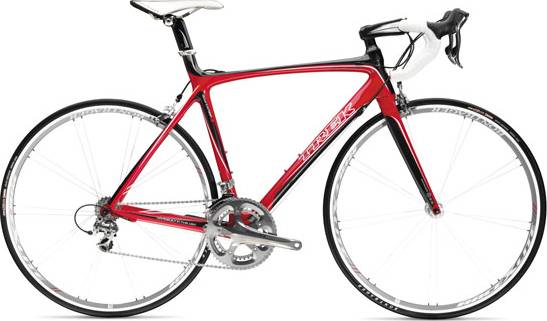

Madone 6.5 Pro is part of the Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2008, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Madone 6.5 Pro components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Madone 6.5 Pro model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 6.5 Pro has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Trek Madone 6.5 Pro bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
