Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 asymmetrical steerer, carbon dropouts
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force, braze-on
Shift Levers
SRAM Force, 10 speed
Cassette
SRAM PC-1070 11-28, 10 speed
Crank
SRAM Force, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager R3, 700x23c
Brakes
Brakes
SRAM Force brakes w/SRAM Force adjustable-reach levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Blade VR-C, carbon, 31.8mm
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race Lite WSD, hollow stainless steel rails, 144mm width
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

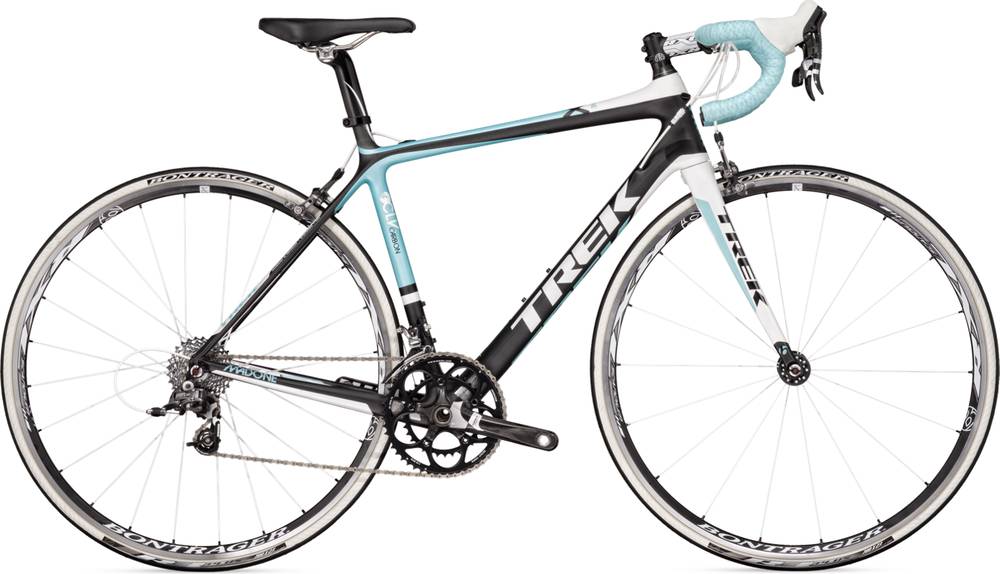

About this model
Madone 6.5 WSD (Compact) is a Trek Madone model. Trek released 360 bikes variations of this model so far. You can easily view all of the Trek Madone bikes models from 2012, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Madone 6.5 WSD (Compact) 2012 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone 6.5 WSD (Compact) has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
